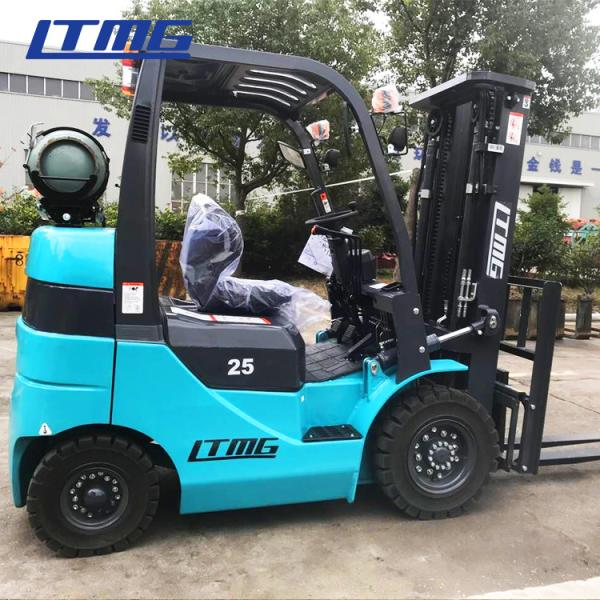

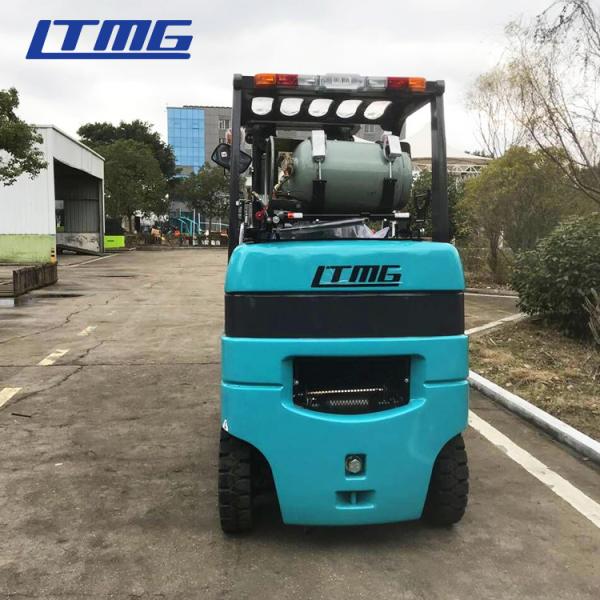

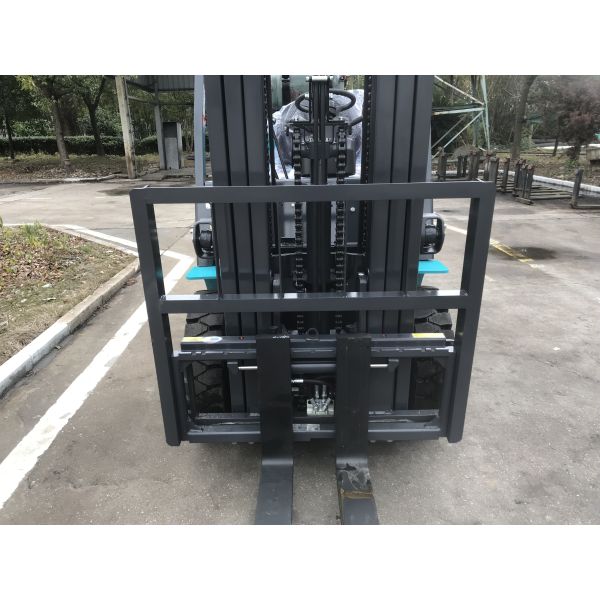

solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck
Specifications
Brand Name :
LTMG
Model Number :
FG25
Certification :
CE ISO
Place of Origin :
Ningbo,China
MOQ :
1 unit
Price :
USD 11350-19000
Supply Ability :
300 units/month
Delivery Time :
30
Packaging Details :
Nude packing, fixed in container
Item :
short wheelbase forklift LPG
Engine :
Chinese engine or Imported engine
Power type :
LPG Gasoline Forklift
Rated Capacity :
2500kg
Load Center :
500mm
lifting height :
3000mm
Gradeability :
20%
Fork size( L*W*T) :
1070*120*40
optional :
side shift ,fork positioner,mast type
Description

solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck

solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck

solid tyre triplex mast lpg gasoline Forklift , Material Handling Truck

Features:

1. Integrated Frame:The integrated frame further enhances durability & safety for long term operation.

2. Excellent front visual field:This not only ensure safety but also enhances working effiency.

3. Fashionable Dashboard:The fashionable dashboard is clear at a glance for the driver with exquisite screen & a combination of different meters.

4. For LTMG forklift, the engine hood is easy to open, this facilitates maintenance & repairation greatly. Application of man-machine theory can also be reflected from this detail.

Main specification of 2.5 ton lpg forklift

model 　 FG25
Power Type 　 LPG
Rated Capacity kg 2500
Load Center mm 500
lifting height mm 3000
Fork size( L*W*T) mm 1070*120*40
Mast Tilt Angle 　 6/12
Front Overhang mm 445
Length to face of fork mm 2360
Overall width mm 1110
Mast Lowered Height mm 2055
Mast Extended Height mm 4050
Overhead Guard Height mm 2080
Ground clearence mm 85
Turning raduis mm 2110
right angle stacking aisle mm 2316
Max.Travel km/h 17
Max.lifting mm/s 410
Wheelbase mm 1400
Front 　 21*7*15
Rear 　 16(1/4)*6*11(1/4)
Tread mm 902/900
Gradeability % 20
Truck weight kg 3900
Battery(Voltage/capacity) V/AH 12/80
Model 　 K25
Manufacturer 　 NISSAN
Rated output/r.p.m kw/rpm 42/2700
Rated torque N.m/rpm 185/1350
Number of cylinders 　 4
Bore*Stroke mm 89*100
Displacement cc 2488
Fuel tank capacity L 55
Optional engine : K25/K25EPA/PSI 3.0/PSI 3.0EPA

After-sale service

Nowadays we have been sell more than 100 countries.

All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and product’s quality certificate.
