Specifications
Brand Name :
LTMG
Model Number :
FDR50
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1/unit
Price :
USD 20968-24832/Unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 Set/Sets per Month
Delivery Time :
35days
Packaging Details :
nude packing
Fork Size :
1220mm×150mm×55mm
Turning Radius :
3200mm
Engine :
YunNei
Transmission Type :
Hydrodynamic
Warranty :
1 year or 2000 working hours
Power Type :
Diesel
Wheelbase :
1850mm
Description

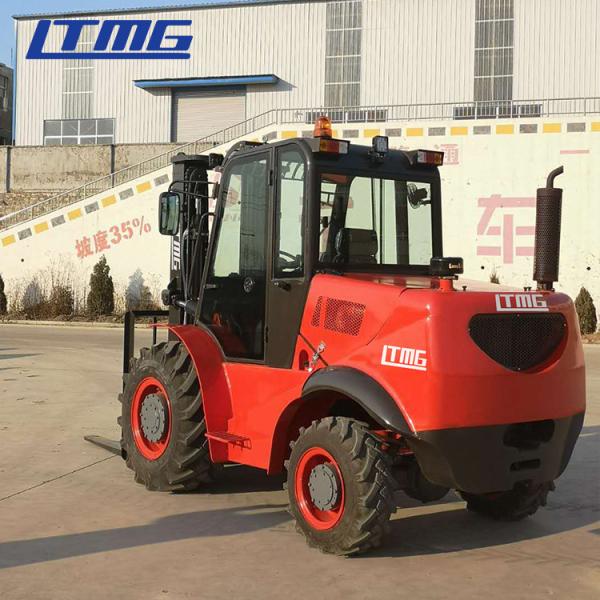

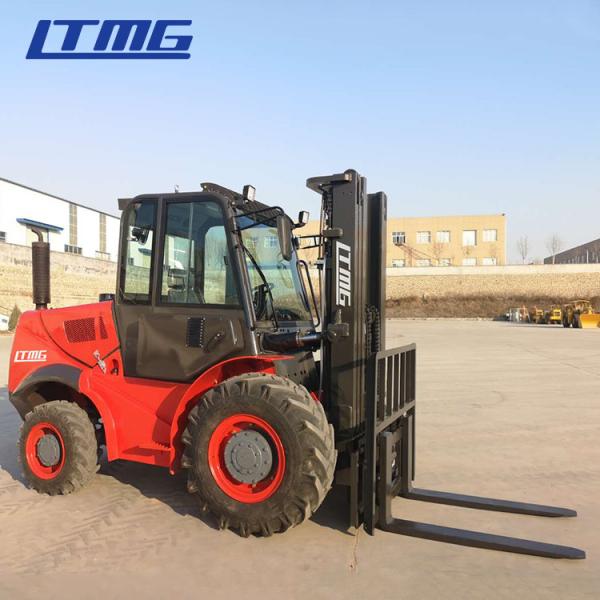

LTMG 5ton rough terrain forklift 4WD all terrain forklift with ce

LTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ce

Product Information

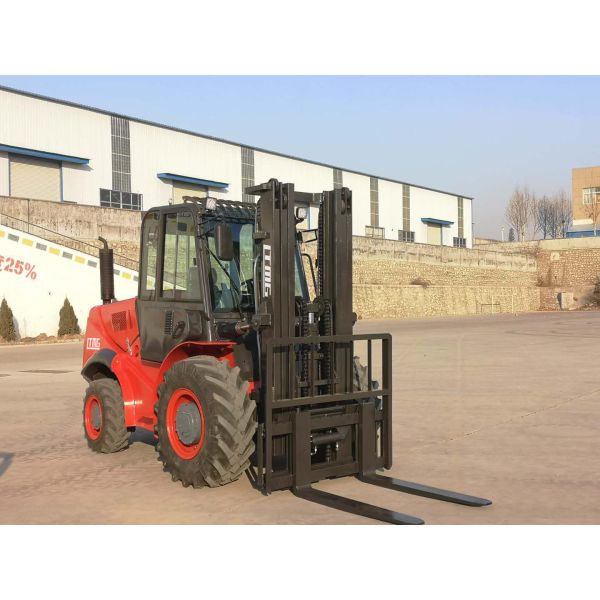

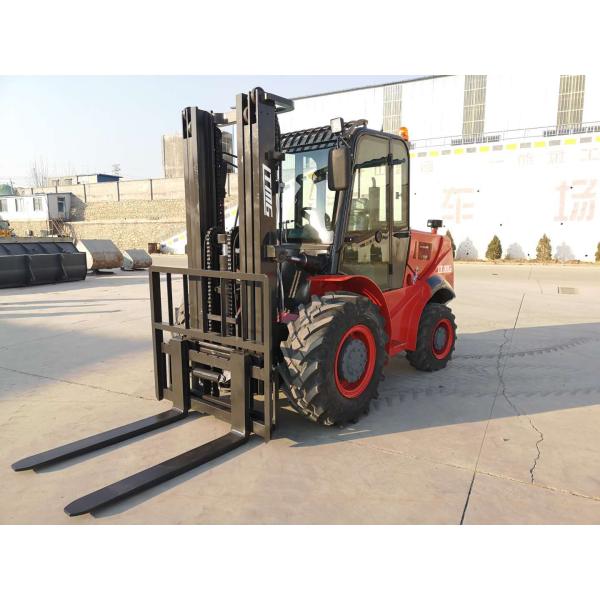

LTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ce
LTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ce

Features of 5ton Rough terrain Forklift

LTMG rough terrain forklift is suitable for bad road conditions, such as soft soil, grassland, wading, jungle, desert, mountain, mine and other rough road conditions, loading and unloading of materials, palletizing, short-distance transportation and other operations.
1. The whole hydraulic electronically controlled gearbox, steering and pilot workmanship make the whole machine more flexible.
2. Equipped with double-bridge four or six-wheel drive, which has large traction and makes it more safe and stable.
3. The articulated frame has a small turning radius and the walking operation handle adopts the advanced technology of German ZF.
4. Install tire clamp attachments which to replace large-scale mining machinery tires, and configure various special-shaped attachments.

The Specification of 5ton diesel rough terrain forklift

Technical Parameter
1.1 Model FDR50
1.2 Power Type Diesel
1.3 Drive Type 2WD/4WD
1.4 Rated Capacity kg 5000
1.5 Load Center mm 500
Dimension Parameter
2.1 Lift Height mm 3000-8000
2.2 Fork Size(L*W*H) mm 1220×150×55
2.3 Mast inclination angle (F/R) Deg 612
2.4 Overall Length without fork 3500
2.5 Overall Width mm 1760
2.6 Overall Height mm 2500
2.7 Mast Height mm 2500
2.8 Head Guard Height mm 2470
2.9 Min. Ground Clearance mm 320
2.1 Min.Turning Radius mm 3200/3880
2.11 Wheelbase mm 1850/1860
2.12 Front wheel tread mm 1430
2.13 Rear wheel tread mm 1310/1380
2.14 Operating Weight kg 7000
Performance Parameter
3.1 Max.Travel Speed of unladen Kmh 36
3.2 Lifting Speed mms 520
3..3 Lowering Speed mms 490
3.4 Max. Gradeability of laden ≧40
Tire
4.1 Front Tyre 16/70-20
4.2 Rear Tyre 10-16.5
Engine and Gearbox
5.1 Battery VAh 1280 / 2460
5.2 Standard Engine YunNei
5.3 Engine Model YN4EZ085-32CR
5.4 Rated Power/RPM kw 67
5.5 Fuel Tank Capacity L 90
5.6 Gearbox Model 280
5.7 Transmission Type Hydrodynamic

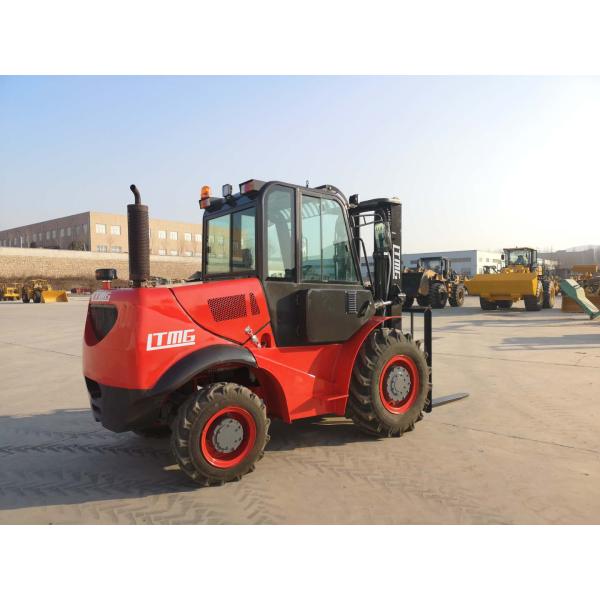

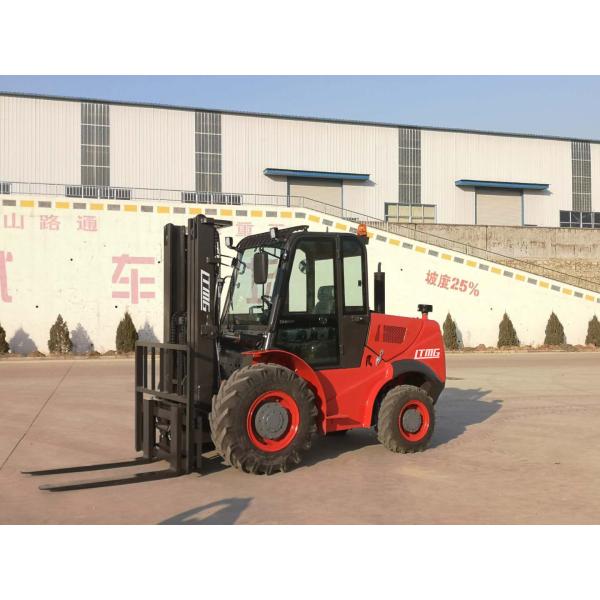

LTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ceLTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ce

LTMG  5ton rough terrain forklift 2WD 4WD all terrain forklift with ce

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
