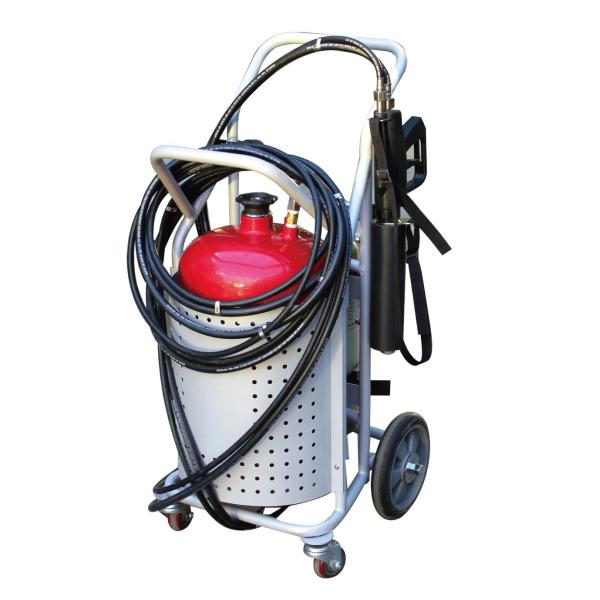

Stainless Steel Water Spray Fire Extinguisher , Advanced Fire Department Equipment
Stainless Steel Water Spray Fire Extinguisher , Advanced Fire Department Equipment
Stainless Steel Water Spray Fire Extinguisher , Advanced Fire Department Equipment
Stainless Steel Water Spray Fire Extinguisher , Advanced Fire Department Equipment
Specifications
Brand Name :
TOPSKY
Model Number :
QXWT35
Place of Origin :
China
MOQ :
1 Set
Supply Ability :
200 Sets/Month
Packaging Details :
Export standard
Name :
Fire Fighting Equipment/ water mist fire extinguisher (trolley type)
Filling capacity :
35 litres
Material :
Stainless steel
Working pressure :
6.0 Bar
Operating time :
Appr. 25 sec.
Flow rate :
24 litres/min
Operating temperature :
Tmin +5°C; Tmax +60°C
Description

Fire Fighting Equipment/ water mist fire extinguisher (trolley type)

Applications:

It has applied advanced aerodynamics technology from flow engineering applications involving liquid/gas mixtures to create QXW series water mist systems.

Trolley

The combination of the highly sophisticated Guns and a trolley supply system make the QXW series trolley the safest and ideal choice for handling medium size fires. The QXW series trolleys are ideal fire fighting solutions for coal mine , warehouses, workshops and construction sites where flameable materials are stored or processed.

Technical specification:

Extinguishing agent tank 　
Filling capacity 35 litres
Material Stainless steel
Working pressure 　
Pressure 6.0 bar
Propellant gas bottle 　
Medium Compressed air
Pressure cylinder Filling pressure: 300bar
Volume: 6.8 litres
Technical parameters 　
Operating time Appr. 25 sec.
Flow rate 24 litres/min
Operating temperature Tmin +5°C; Tmax +60°C
Carrying device Ergonomically shaped
Extinguishing gun 　
Changeover time Appr. 3 sec. (jet to spray mode)
Lancing distance Appr. 10 m jet mode
Ratings (extinguishing performance)
A Fire Class 55 A (as per EN3)
B Fire Class 233 B (as per EN3)
IIB (EN 1866) (e.g.: with exting. agent Moussel C)
Dimensions 　
Weight empty(with the gas bottle and valve ) 74.5 kg
Dimensions (LxWxH) Appr. 490x 527x 982mm
