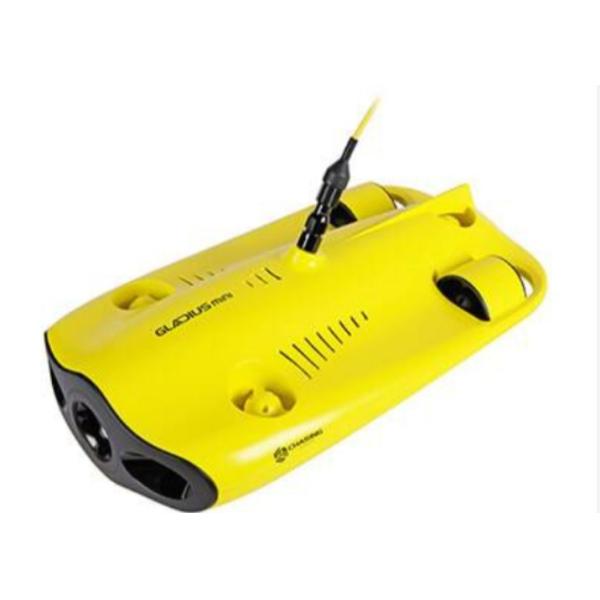

ROV2.0 under water robot

Features:

One key to set depth

100 meters deep

Maximum speed (2m/s)

4K Ultra HD camera

2 hours battery life

Single backpack portable

Technical parameter:

Host

Size: 385.226*138mm

Weight: <2.5KG

Maximum depth: 100m

Maximum speed: 4Kn(2m/s)

Battery: 55.5Wh (5000mAh)

Average battery life (50% speed, fixed depth mode): 1.5H-2H

Battery cycle times: >300 times

Repeater & reel

Weight of repeater & reel (without cable): <1.5KG

Repeater battery: 22.2Wh (2000mAh)

Maximum battery life: ≥5h (depending on the use environment)

Battery cycle times: >300 times

Wireless WIFI distance: <10m

Cable length: 50m (standard configuration, the maximum can support 200 meters)

Tensile resistance: 100KG (980N)

Remote control

Working frequency: 2.4GHZ (Bluetooth)

Working temperature: -10°C-45 C

Wireless distance (smart device and remote control): <10m

camera

CMOS: 1/2.3 inch

Aperture: F2.8

Focal length: 70mm to infinity

ISO range: 100-3200

Angle of view: 95*

Video resolution

FHD: 1920*1080 30Fps

FHD: 1920*1080 60Fps

FHD: 1920*1080 120Fps

4K: 3840*2160 30FPS

Maximum video stream: 60M

Memory card capacity 64 G

LED fill light

Brightness: 2X1200 lumens

Color temperature: 4 000K- 5000K

Maximum power: 10W

Dimming manual: adjustable

sensor

IMU: three-axis gyroscope/accelerometer/compass

Depth sensor resolution: <+/- 0.5m

Temperature sensor: +/-2°C

charger

Charger: 3A/12. 6V

Submarine charging time: 1.5 hours

Repeater charging time:1hour

Company Introduction

Beijing Topsky Century Holding Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of ​​1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals, and armed police in many fields. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.
