Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
Specifications
Application :
Other
Port Size :
2", 3", 4" & 6"
Place of Origin :
Shanghai, China
Model Number :
Solenoid Plug Valve
Material :
Stainless steel
Power :
Solenoid
Temperature of Media :
-40-60 Centigrade
Brand Name :
OEM
Pressure :
Low Pressure
Structure :
Check
Media :
Oil
Standard or Nonstandard :
Standard
valve :
Solenoid Valve
Packaging Details :
carton 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves
Port :
shanghai
Supply Ability :
3000 Unit/Units per Week
Price :
$200.00/pieces >=1 pieces
Description

Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media

V-80 Piston Valve

V & VS series Piston Valves

V series Mechanically actuated piston valves are designed for mounting on the meter outlet to completely shutoff the liquid flow with easy operation under any pressure system. The valve can be operated manually or connected via a mechanical linkage to a preset counter on the meter for single stage closure or two-stage closure to eliminate hydraulic shock. The valve is indexable in 90o turn for up & down or side facing outlet. 2",3",4" available for option.

Technical Specification

Model

Diameter

Used for Meter

Max. Flow Rate L/Min

Material

V-50

1.5"& 2"

M-40, M-50, M-50H

550

Aluminum

V-80

3"

M-80, M-80H

1136

V-100

4"

M-100, M-100H

2271

Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media

K-80 Check Valve

K Series Air Activated Differential Check Valve

K Series Air Activated Differential Check Valves are installed at the outlet of the meter, which is designed to stop the flow of liquid whenever air is present to ensure accurate measurement.

Technical Specification

Model

Diameter

Used for Meter

Max. Flow Rate L/Min

Material

K-50

1.5"& 2"

M-40, M-50, M-50H

550

Aluminum

K-80

3"

M-80, M-80H

1136

Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media

V-50-LPG Differential Valve

V-50-LPG Differential Valve

The differential valve is mounted at the outlet of the meter and connected with the vapor eliminator with the function to shut off the liquid flow whenever vapor occurs in the tube system. The valve maintains sufficient pressure to ensure the high-vapor pressure products, such as LPG & Anhydrous Ammonia (NH3) to be always remained in liquid state. The valve is spring loaded and to fail if closed.

Technical Specification

Model

Diameter

Used for Meter

Max. Flow Rate L/Min

Material

Working Pressure

V-50-LPG

1.5"& 2"

M-40, M-50, M-50H

760

Aluminum

350PSI

Solenoid Valve

Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media

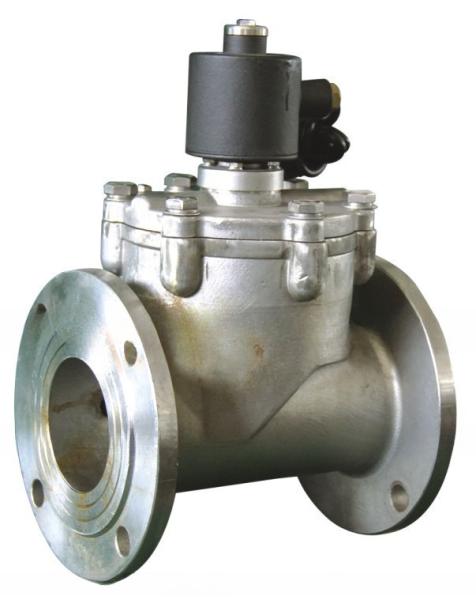

Stainless Steel Solenoid Plug Valve

Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media

Cast Iron Solenoid Air Check Valve

Solenoid Plug Valve & Solenoid Air Check Valve

Size: 2”, 3”, 4” & 6”

Power:220V/50HZ or 24V

Top Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil MediaTop Rated 2 inch Stainless Steel Solenoid Plug Valve/flow meter valves for Oil Media
