Specifications
Warranty :
1 year
Customized support :
OEM
Place of Origin :
Shanghai, China
Brand Name :
COWELL
Model Number :
LPG-GY7170A
Power Supply :
220V/50HZ
Display Type :
LCD
Product name :
truck weighing scales
Certification :
ce
Packaging Details :
wooden case for Cabinet typ LPG filling scale RS485
Port :
Shanghai, Ningbo, Guangzhou
Supply Ability :
10000 Unit/Units per Month
Price :
$630.00/pieces >=1 pieces
Description

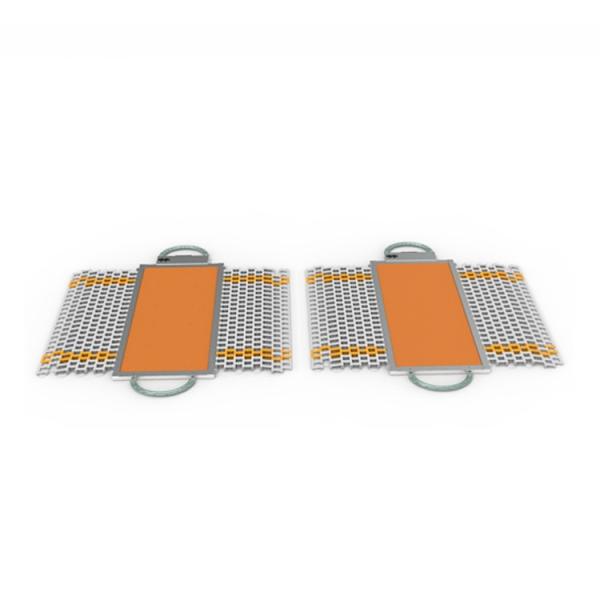

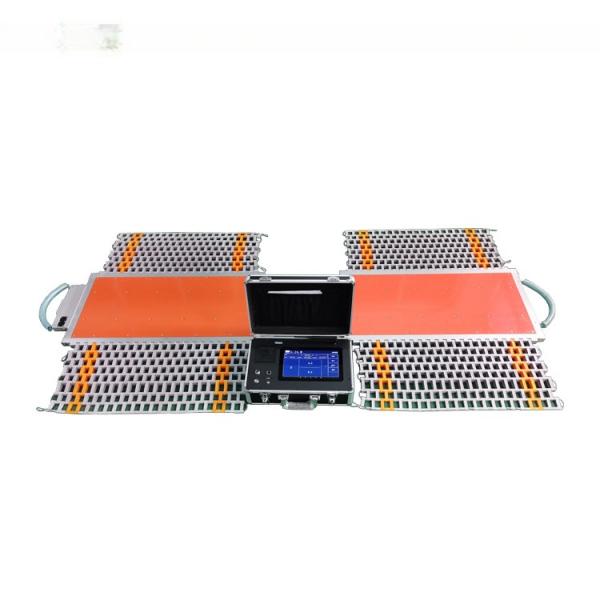

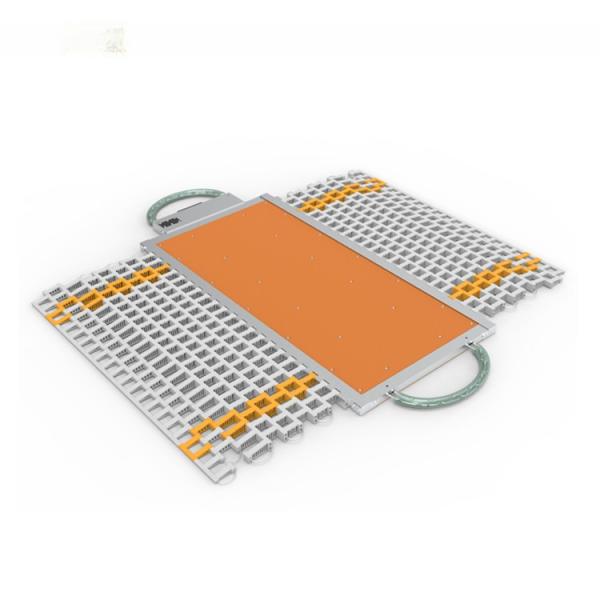

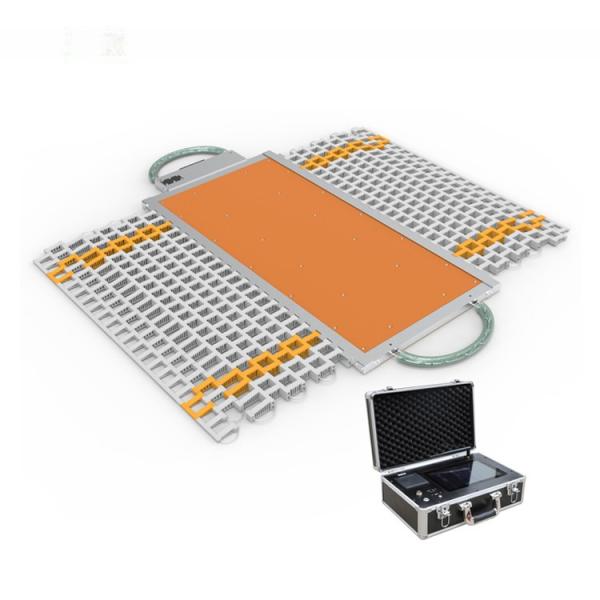

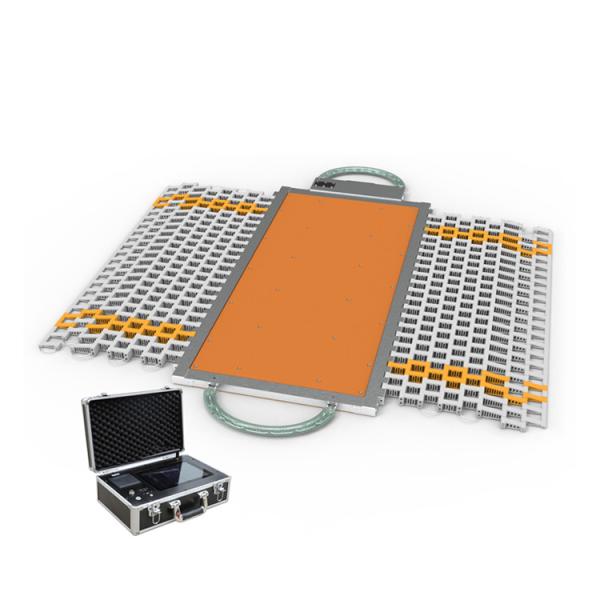

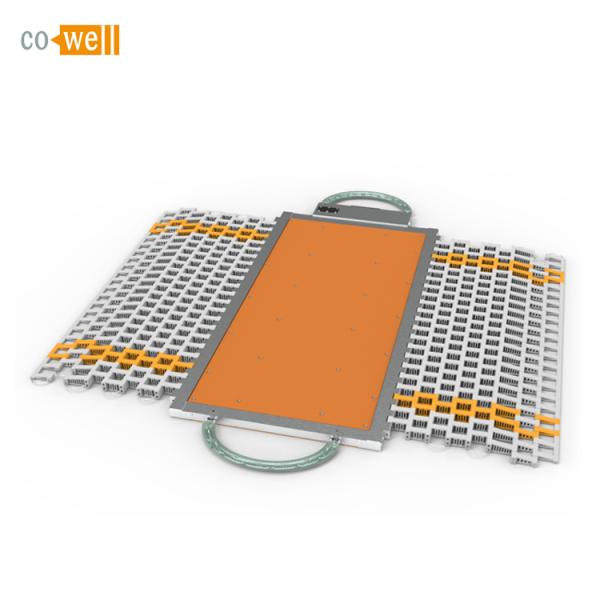

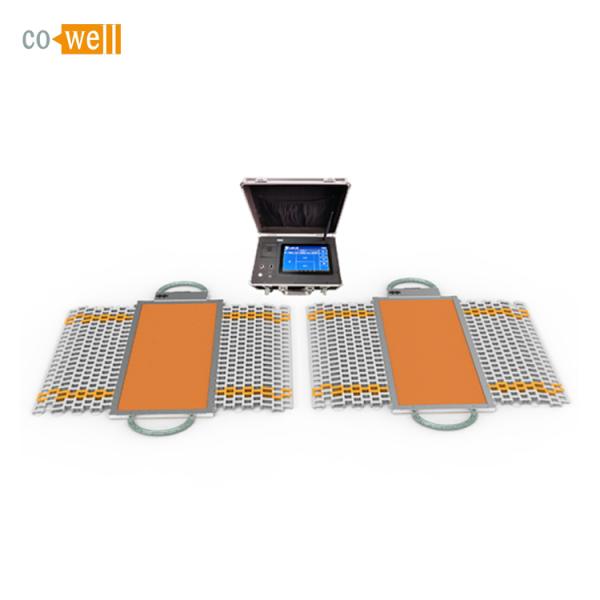

Cowell best selling factory directly portable car axle load scale

·Small body, great strength:

·The weighing platform is covered with high-strength steel plate, and the

surface is treated with PAOWANPS process to increase the scale body strength

and impact resistance; beautiful and eye-catching appearance, easy to observe;

internal use BOSTIC the company's special protective resin glue, multiple

protection, protection grade IP65.

·Single board range: 20t; the weighing board has a strong overload capacity,

safe overload: 120%; limit overload: 150%

·Easy to use, regardless of location:

·No need to pour the foundation specially, just put it on the hardened pave

ment and it can be used.

·The scale body has a strong ability to adapt to the environment, and is inspect

ed by high and low temperature testing equipment.It can be used normally at a

temperature of -30~+80.

·The instrument has various functions and software customization:

·Can be wired and wireless signal transmission, unique YSXLB technology antenna

designed by Ubao, no the line distance is long, and the barrier-free transmission

distance can reach more than 30 meters.

·The instrument can be connected to multiple weighing platforms without restric

tion, which is the most economical way to achieve single and multiple weighing

plates.Difffferent combinations of blocks can easily meet the needs of customers in

difffferent scenarios.

·Equipped with powerful instrument functions, rich peripheral interfaces, support

for online upgrades, and support for vehicle automation recognition system,

support enterprise internal software connection, comes with a variety of vehicle

axle type options, there are multiple the language version is optional.

·Premium preparation, ultra-high precision:

·Static accuracy 0.3%F.S, dynamic accuracy 1%-2%F.S.

·The scale body is made of Chinalco Group's advanced aviation hard alloy aluminum

material, built-in multiple sets of US DOWESTON stress components

High-precision stainless steel sensor, corrosion-resistant, anti-oxidation, high preci

sion and long service life.

·YP-Dynamic dynamic weighing algorithm and YP-Static static weighing algorithm

developed by the R&D team of American universities, and

Customized weighing high-frequency electronic components cooperate to obtain

overall ultra-high precision.

·Accessories are optional, customized on demand:

·Large screen, camera, scanner, printer, signal line, sensor, weighing software,

customized software.

·The slope can be lengthened according to customer needs.

Basic use

Dynamic: Generally, two weighing boards are required,

and the vehicle slowly drives past the weighing

boards.The meter automatically displays and prints the

weight.

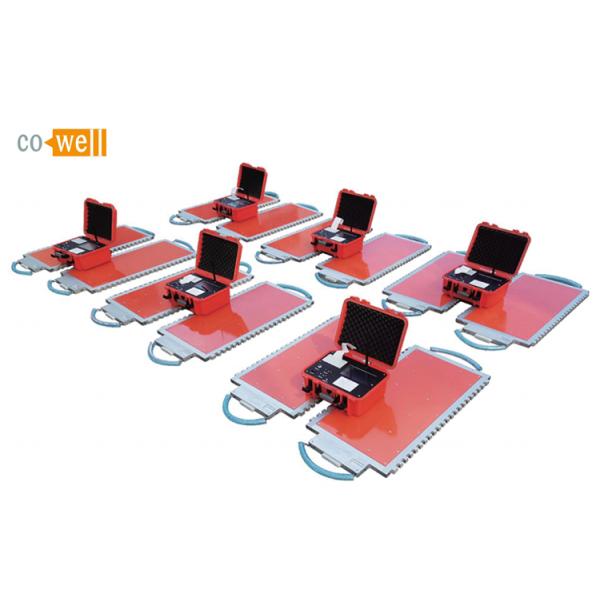

Static: Generally the number of weighing boards is the

same as the number of wheels, and the vehicle is

weighing.After a while on the heavy board, the indicator

will automatically display and print.

220V/50HZ Power Supply Truck Weighing Scales for Commercial Vehicles

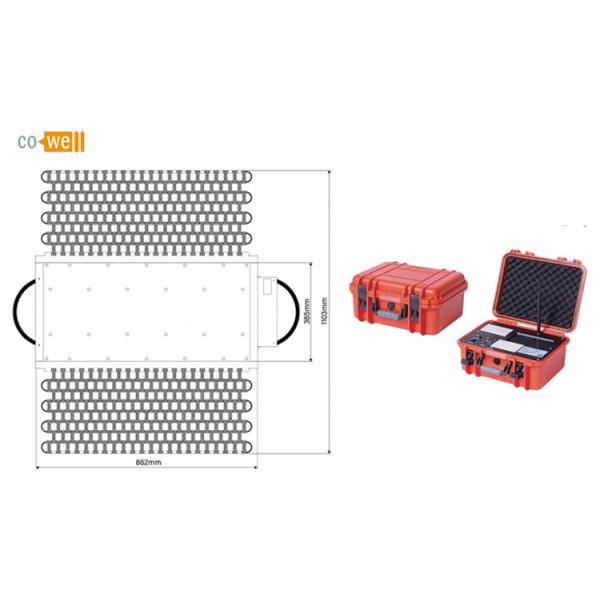

Technical Specification

Name

Body

Braided slope

Size (mm) 866*440*22 860*360*22
Weight(kg) 17 2
Remarks 20t range, size can be customized Slope length can be customized
