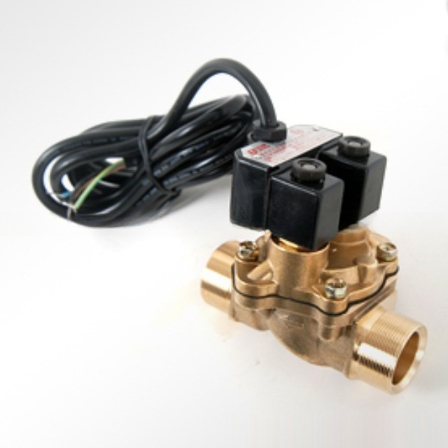

MSF Series Solenoid Valve
MSF Series Solenoid Valve
MSF Series Solenoid Valve
MSF Series Solenoid Valve
MSF Series Solenoid Valve
MSF Series Solenoid Valve
Specifications
Place of Origin :
China
Model Number :
MSF-20F/T;MSF-25F/T
Brand Name :
COWELL
Packaging Details :
Carton
Certification :
MFG. License
Payment Terms :
T/T
Delivery Time :
7-15 Working days
Diameter :
3/4", 1" & 1.5"
Voltage :
220VAC, 24VDC, 12VDC
Ambient Temperature :
-40~55 C degree
Connection :
Flange, NPT/BSPF
Medium :
Gasoline, diesel, kerosene etc
Description

MSF Series Solenoid Valve

  • Precise action, reliable, long service.
  • Diaphragm of main valve has capability of anti-corrosion and resisting -40℃ low temperature.
  • Special stainless steel magnetic material, never rusts and generates remanent magnetism.
  • Class F loop with good insulation.
  • Anti-Explosion Class:EXdⅡBT4
  • When main valve shuts off, work pressure 0.3～0.4MPa, flow rate is 3-3.5L/min.

Technical Specification

Model Diameter Connection Flow Rate (L/min)

Work Pressure

(MPa)

Voltage

(V)

Ambient Temperature

(℃)

Medium Temperature

(℃)
MSF-20F 20mm/3/4" Flange 50 0.035～0.45

AC220V

50Hz

DC24V/

12V

　

 -40℃～55℃ -40℃～65℃
MSF-20T 20mm/3/4" Thread M33×1.5 50
MSF-25F 25mm/1" Flange 85
MSF-25T 25mm/1" Thread M33×1.5 85
