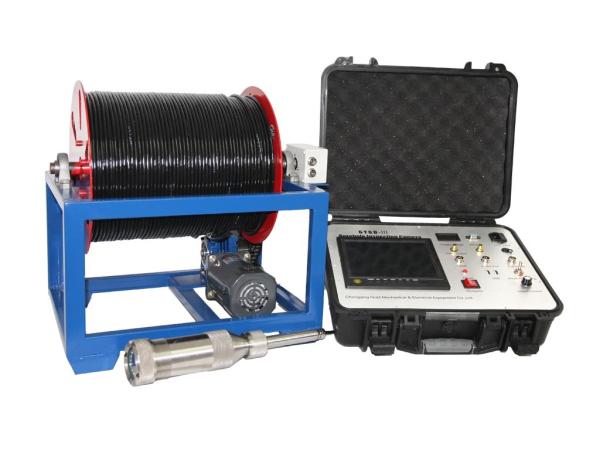

Deep Water Well Inspection Camera Underground Underwater Borehole Inspection Camera GYGD with 100M to 2000M Cable
Deep Water Well Inspection Camera Underground Underwater Borehole Inspection Camera GYGD with 100M to 2000M Cable
Specifications
Brand Name :
Gold
Model Number :
GYGD
Certification :
ISO
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
USD2000/set
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Export case
Function :
Water well camera
Warranty :
12 months
Description

Deep Water Well Inspection Camera Underground Underwater Borehole Inspection Camera GYGD with 100M to 2000M Cable

Contact Name: Vivienne

Mobile Phone: +86-15123029803

Skype: viviennecq

Email: cqgold04@hotmail.com

FAX: 023-62940030

Tele: +86-15123029803

Any of your requirements would be really appreciated ! Thanks.

Underground Water Detection With Color video Borehole Camera

Application

The underwater inspection camera is mainly used in underwater, borehole, water well drilling hole engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.

It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.

Specification

No. Product Configurations Dimension Specification
1 Probe Dia.: 80mm Length:470mm

(1) Front lens are imported resins,

(2) Not easy damaged,

(3) Pressure is 16-30Mpa

(4) Light: 9-12LED Lights
2 Camera

(1) Japan SONY inductor 1/3'' CCD,

(2) Image definition is HD 850 TVL

(3 Watertight

(4) Camera Angle: 180/360 degree
3 Professional logging cable

Length:

0-2000m(optional)

(1) With steel wire,

(2) Tension is 150kg,

(3) Destroy tension is 260kg
4 Main Control Host

(1) 220V/380V/12V optional.

(2) LCD dispaly can be 8/15inches.

(3) Aircraft grade aluminum alloay material
5 Downhole Pulley Can change the booth size according to the well mouth size
6 Logging Winch Manual / Electrical winch
7 Lithography System

(1) SONY disc-carving machine,(optional)

(2) Discs and U disk can be used
