JQX-2 Geological Portable Digital Inclinometer and Drilling Inclinometer for Borehole Inspection
JQX-2 Geological Portable Digital Inclinometer and Drilling Inclinometer for Borehole Inspection
JQX-2 Geological Portable Digital Inclinometer and Drilling Inclinometer for Borehole Inspection
JQX-2 Geological Portable Digital Inclinometer and Drilling Inclinometer for Borehole Inspection
Specifications
Brand Name :
Gold
Model Number :
JQX-2
Certification :
ISO
Place of Origin :
Chongqing,China
MOQ :
1sets
Price :
USD3000/set
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Export case
Function :
12months
Warranty :
12 months
Description

JQX-2 Geological Portable Digital Inclinometer and Drilling Inclinometer for Borehole Inspection

Contact Name: Vivienne

Mobile Phone: +86-15123029803

Skype: viviennecq

Email: cqgold04@hotmail.com

FAX: 023-62940030

Tele: +86-15123029803

Any of your requirements would be really appreciated ! Thanks.

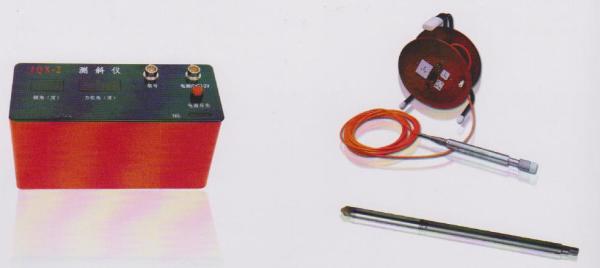

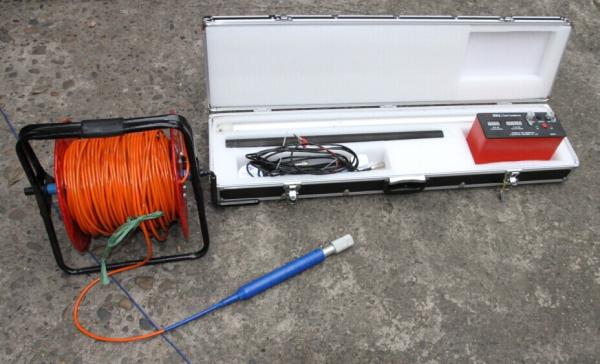

JQX-2 Portable Digital Inclinometer

Main Applications and Features:

Digital inclinometer is a new high-precision inclinometer system which consists of ground instrument, probe, cable and other components. It is widely used in measurement of vertex and azimuth for various types of geological drilling.

Widely used in measurement of vertex and azimuth for various types of geological drilling.

Direct-reading of vertex and azimuth

Digital display, point measurement or continuous measurement

Simple, reliable operation,

Main Technical Specifications:

Vertex Coverage: 0~60°

Vertex Accuracy: ≤ 0.1°

Azimuth Coverage: 0~360°

Azimuth Accuracy: ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)

Working Temperature: 0~85 ℃

Probe Outline Dimension: φ42×1000 mm

Ground Instrument Dimension: 240×95×140mm

Probe Weight: 2 Kg (weighing bar 5 Kg)

Probe Downhole Length: ≤1000
