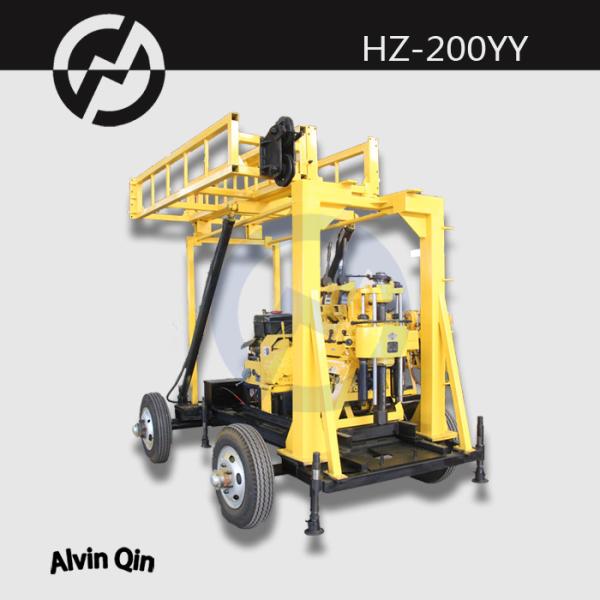

portable mobile Hydraulic water drilling machine HZ-200 series drilling rig
portable mobile Hydraulic water drilling machine HZ-200 series drilling rig
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
HZ-200YY
MOQ :
1 set
Price :
FOB Chongqing Qingdao USD6300
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
drilling depth :
200m
maximum open hole caliber :
300MM
end hole caliber :
75mm
drill rod caliber :
60mm
max.single line hoisting capacity :
2400kg
spindle stroke :
450mm
Description
portable mobile Hydraulic water drilling machine HZ-200 series drilling rig
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

HZ-200Yg water drilling machine

For Wells drilling and soil boring log

Application&Features

It is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drillling and driect grouting,civil wells and earth temperature entral air-conditioner,etc.

Features:

1.53*59 drilling rod adopted,high rigidity and strong delivery torque.

the machine is equipped with national patent technology---taper clutch,with charactristics of strong transmission troque,easy operation and free maintenance.

2.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.

3.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

4.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.

portable mobile Hydraulic water drilling machine HZ-200 series drilling rig

Specification

portable mobile Hydraulic water drilling machine HZ-200 series drilling rig

Drilling depth 200m
Max open hole caliber 300mm
End hole caliber 75mm
Drill rod caliber 60mm
Drilling angle 90°~75°
Drill weight (without power) 975kg
Triangle conveyer belt B950 x 4 B1700 x 3
The main machine moving distance 300mm
Power Diesel engine 22HP Electric motor 15kw
Spindle
spindle speed 64, 128, 287, 557r/min
Spindle stroke 450mm
Hoist
Max.lifting capacity 2400kg
Single line lifting speed 0.41, 0.82, 1.64m/s
Wirerope caliber 13mm
Wirerope length 35m
Reel diameter 140mm
Hug floodgate caliber 260mm
Hug folldgate belt width 70mm
Mud pump
Type Horizontal single-urn twin-action
Displacement Diesel engine 170L/min Electric motor 150L/min
Maximum pressure 3Mpa
Work pressure 1.5Mpa
Inlet pipe caliber 40mm
Outlet pipe caliber 30mm
Triangle conveyer belt B1728mm
Hydralic oil pump
Type CBT-F-314
Triangle conveyer belt B1100 X 1

Packaging & Shipping

portable mobile Hydraulic water drilling machine HZ-200 series drilling rig

Our Company View

portable mobile Hydraulic water drilling machine HZ-200 series drilling rigportable mobile Hydraulic water drilling machine HZ-200 series drilling rig

Project Site

portable mobile Hydraulic water drilling machine HZ-200 series drilling rig
