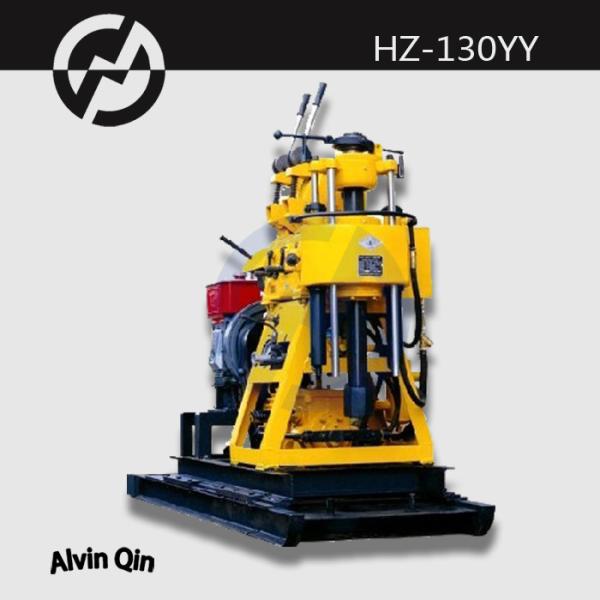

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin
HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
HZ-130YY
MOQ :
1 set
Price :
5100 USD FOB Qingdao
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
Drilling depth :
130m
Maximum open hole caliber :
260mm
End hole caliber :
75MM
Drill rod caliber :
50mm
Drilling angle :
90--75
Drill weight (No include power) :
560kg
Unity machine dimensions :
2.5*1*1.3m
spindle speed :
142,285,570r/min
Description
HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

Ground water drilling machine

Integrated a slide rail on HZ-130Y

Easier to move and operate

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin

Specification

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin

Unity machine parameter
Drilling depth 10-130m
Maximum open hole caliber 260mm
End hole caliber 75mm
Drill rod caliber 50mm
Drilling angle 90~75
Drill weight (No include power) 510 560kg
Unity machine dimensions 2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed 142,285,570r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 960kg
Single line lifting speed 0.41,0.82,1.64m/s
Tightrope caliber 27m
Mud pump of HZ-130YY model drilling rig
Type Horizontal single urn twin-action
Displacement 95/77L/min
Diesle engine Model s1110 18HP
Electric motor Y160M—4 11kw 1440r/min
Maximum pressure 1.2Mpa
Work pressure 0.7Mpa
Water inlet caliber 30mm
Water to exit caliber 25mm
Triangle conveyor belt B1575mm
Packaging & Shipping

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin

Our Company View

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machinHZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin

Project Site

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machin
