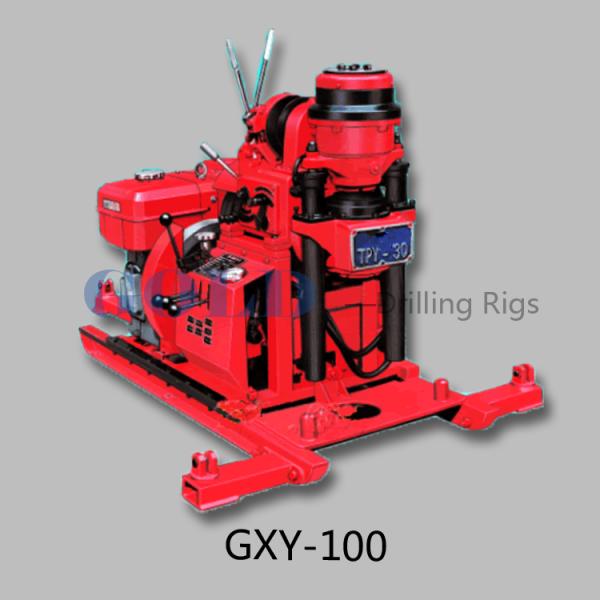

Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin
Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin
Specifications
Place of Origin :
China
Brand Name :
Gold
Certification :
CE ISO9001:2008
Model Number :
TPY-30
MOQ :
1 set
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
Price :
EXW USD5000/set
Warranty :
12 months
Description
Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

TPY-30 drilling machineis a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.

Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin

Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin

Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin

  • Light, good detachability, easy moving, suitable for mountainous area.
  • Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.
  • Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
  • Perfect performances, simple and compact design, easy operation.
  • Largely powered, reasonable speed range, suitable for various drilling methods.
  • Equipped with light and detachable aluminium alloy derrick.

Small Drilling Rig for expolration TPY-30 water well drilling rig, small size ,easy movin

Drilling capacity Hole dia Φ75mm,Φ110mm
Depth 25m,30m
Rotation table speeds 110;234;332
Rotation table output torque 0.326
Max pull force 20
Feed stroke 350
Retraction stroke 220
Single rope max lift force 3.43
Hoisting speeds (the second layer) 0.58;1.15;1.78
Oil pump CBW-F203-AFPL
Drill body Weight (excluding power unit) (kg) 240
Overal dimensions(L*W*H) 1270*624*890
Power unit Diesel engine Model R185A
Power 6.25
Speed 2400
Electric motor Model Y132S1-2
Power 5.5
Speed 2900
