China best quality manufacturer MGY-80 rotary pile drilling rigs
China best quality manufacturer MGY-80 rotary pile drilling rigs
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
MGQ--80
MOQ :
1 set
Price :
EXW USD5000/set
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
Drilling capacity :
Hole dia Φ110mm,depth 100m
Type of hydraulic power pack :
Electric motor,varibale oil pump
Hydraulic system rated pressure(Mpa) :
20
Top-head speeds(r/min) :
0---140
Lift speed(m/s) :
0—-0.12
Feed speed (m/s) :
0---0.19
Max pull force(N) :
50000
Max feed force (N) :
34000
Warranty :
12 months
Description

China best quality manufacturer MGY-80 rotary pile drilling rigs
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

MGY-80 hydraulic anchoring machine is mainly used in treating the disaster of landslide, rockslide so on, also used in rock anchoring, anchoring bar, strengthening retaining wall, supporting in deep foundation pit, mini-pile hole drilling, hydrography well drilling and high pressure jet-grouting for hydroelectric powerstation, communication, energy and capital construction.China best quality manufacturer MGY-80 rotary pile drilling rigsChina best quality manufacturer MGY-80 rotary pile drilling rigsChina best quality manufacturer MGY-80 rotary pile drilling rigsChina best quality manufacturer MGY-80 rotary pile drilling rigsChina best quality manufacturer MGY-80 rotary pile drilling rigs

China best quality manufacturer MGY-80 rotary pile drilling rigs

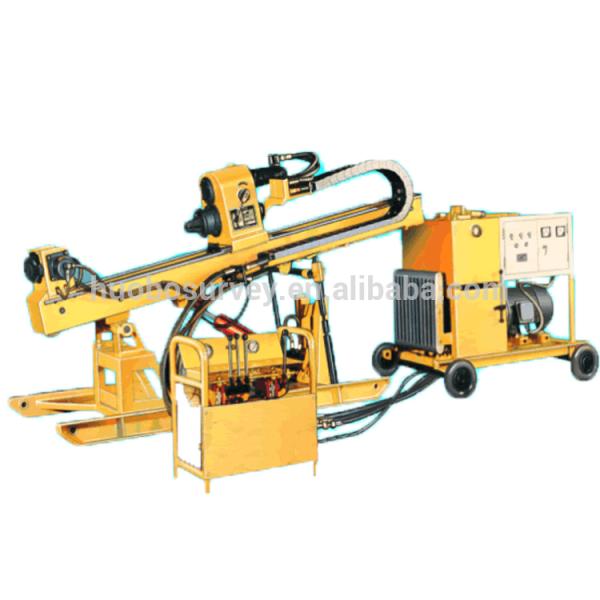

1.Use hydraulic transmission, the body is separated from power pack, operation desk separately mounted, to lighten the drill body.
2.Main hydraulic components such as oil motor, oil pump, quick joint so on are imported from US to make the drilling machine stable and reliable.
3.Equipped with hydraulic holder and hand powered unscrewer, to untighen the drill rod easily.
4.Good detachability, easy moving, special for high place work; simple design, compact arrangement, easy operation.
5.The top-head has large torque, wide range of speed, big pull force.

China best quality manufacturer MGY-80 rotary pile drilling rigs

Drilling capacity
Hole dia Φ110mm,depth 100m
Hole dia Φ200mm,depth 80m
Type of hydraulic power pack
Electric motor,varibale oil pump
Hydraulic system rated pressure(Mpa)
20
Top-head speeds(r/min)
Series I
0---140
Series II
0---50
Top-head torque (N.m)
Series I
1400
Series II
3500
Lift speed(m/s)
0—-0.12
Feed speed (m/s)
0---0.19
Max pull force(N)
50000
Max feed force (N)
34000
Max stroke (mm)
1800
Drilling angle range(°)
-100
Overal dimension of drill body(L*W*H)(mm)/Weight(Kg)
3270*1100*1425/1100
Dimension of power pack(L*W*H)mm/weight(kg)
1555*1255*1335/500
Dimension of operation desk(L*W*H)mm/weight(kg)
700*380*750*110
Power unit(electric motor)
model
Y1802M-2
Power(kw)
22
Speed(r/min)
2950

China best quality manufacturer MGY-80 rotary pile drilling rigs

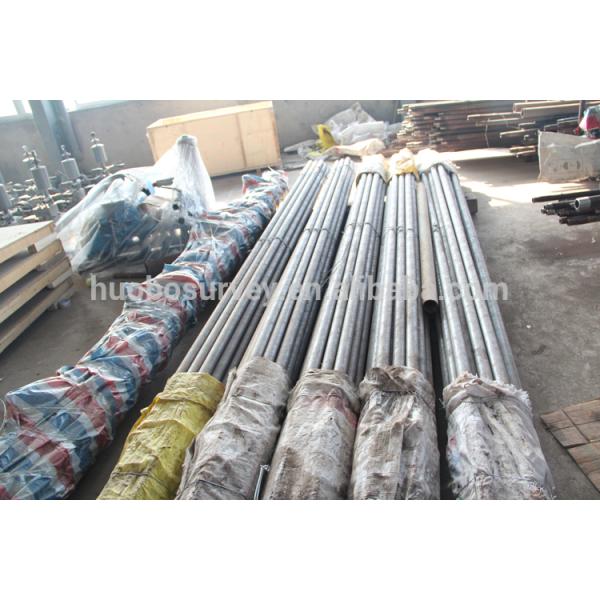

Package: Plastic sheeting

Deliverey: Container ship

China best quality manufacturer MGY-80 rotary pile drilling rigs

Established in 2009.

Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
