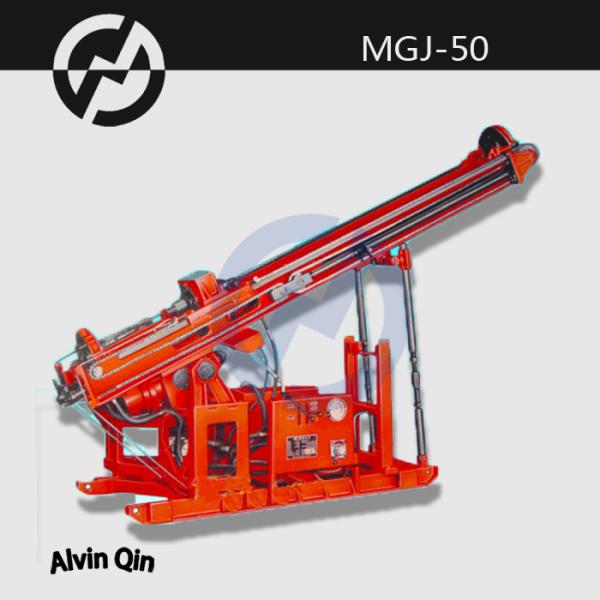

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling
MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
MGJ-50
MOQ :
1 set
Price :
EXW USD2000/set
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
MAX Torque :
2800
Description
MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

Horizontal anchor drilling rig MGJ-50 is mainly used for soil and rock anchoring, consolidating and strengthening foundation of highway and dam and retaining wall, preventing soil and rock from collapsing, supporting in deep foundation pit, pin timbering in underground engineering and handling the foundation of skyscraper.

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

Application&Features

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

1. The rig structure compact, light weight and detachable, convenient move andposition; adopts full hydraulic control, flexible operation Time saving, labor saving, and remote operation.

2. The use of low speed and high torque motor, so that the machine stable performance, reliable, long life.

3. This machine applicable range, drilling ability; power head stroke length, high drilling efficiency.

4. Power head and the guide rail adopts a new wear-resistant plate, guide railabrasion.

5.This machine drilling angle range 5 to 360 degrees. Track along the chassis frame and sliding, convenient, reliable drilling location.

6. The machine is suitable for various drilling methods.

Specification

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

No. Project name Unit Numerical
1 Drilling capacity mm 150 – 250
2 Drilling hole dia. m 100-50
3 Angle reange 0°~ 360°
4 Dynamic output speed r/min 46
5 Dynamic output torque N.m 3700
6 Power head max. feeding force kN 44
7 Spindle max. pull force kN 63
8 Power head max. stroke mm 1800
9 Power head rotary hydraulic system Quantitative gear pump + quantitative oil motor
10 Feeding hydraulic system Quantitative gear pump+Cylinder chain speed mechanism 5
11 The rated pressure of hydraulic system Mpa 20
12 Electric power Y180L-4 kW 22
13 Overal diamensions (l×b×h) mm 2900×1000×1320
14 Drilling weight kg 950
15 Power diamensions (l×b×h) mm 1340×880×1256
16 Power weight(kg) kg 450
17 Operation panel diamensions(l×b×h) mm 550×500×600
18 Operation panel weight kg 60

Packaging & Shipping

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

Our Company View

MGJ-50 horizontal anchor drilling rig grouting concrete wall drillingMGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

Project Site

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling
