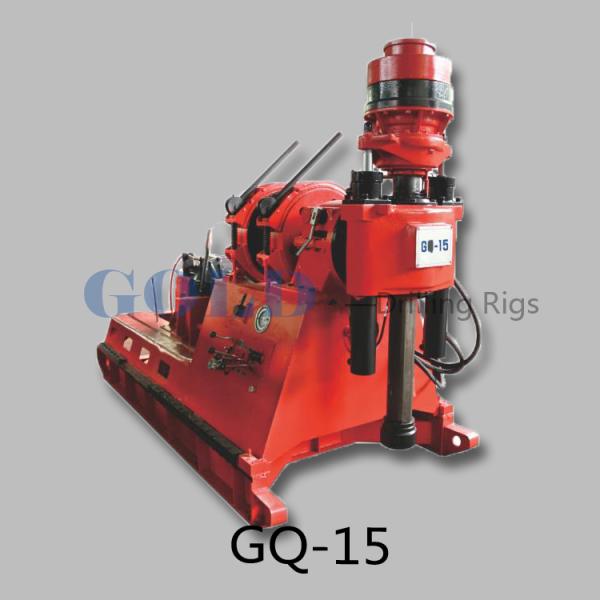

top drive drilling rig GQ-15 water well drilling rig strong structure
top drive drilling rig GQ-15 water well drilling rig strong structure
Specifications
Place of Origin :
Chongqing
Brand Name :
GOLD
Model Number :
GQ-15
Certification :
CE
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
MOQ :
1set
Price :
EXW USD5000/set
Warranty :
12 months
Description
top drive drilling rig GQ-15 water well drilling rig strong structure
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

Top drive drilling rig GQ-15 water well drilling rig

top drive drilling rig GQ-15 water well drilling rig strong structure

top drive drilling rig GQ-15 water well drilling rig strong structure

top drive drilling rig GQ-15 water well drilling rig strong structure

items unit Value
hole caliber mm 400 ~ 1000
drilling depth m 100 ~ 50
Spindle speed Y225M-6 electric motor forward r/min 47.6; 80; 134; 224; 355; 383
reverse 53
Y225S-4 electric motor forward 72; 121; 202.5;338; 536; 578.5
reverse 80
Max. spindle output torque Y225M-6 electric motor N.m 6000
Y225S-4 electric motor 4980
spindle push force kN 73.5
spindle pull force kN 98
Max. spindle feed stroke mm 600
lifting force of hoist (with single wire rope) kN 39.6
retraction distance mm 530
power unit Electric Y225M-6 30 kW 980r/min
motor Y225S-4 37 kW 1480r/min
overall dimension (L×W×H) mm 3030×1250×1935
weight (excluding power unit, kelly) kg 2200
Max. detachable part kg 350

top drive drilling rig GQ-15 water well drilling rig strong structure

Established in 2009.

Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
