Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine
Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
MGY-100BL
MOQ :
1 set
Price :
EXW USD5000/set
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
Hole caliber :
400 ~ 1000MM
Drilling depth :
100 ~ 50M
Warranty :
12 months
Description
Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

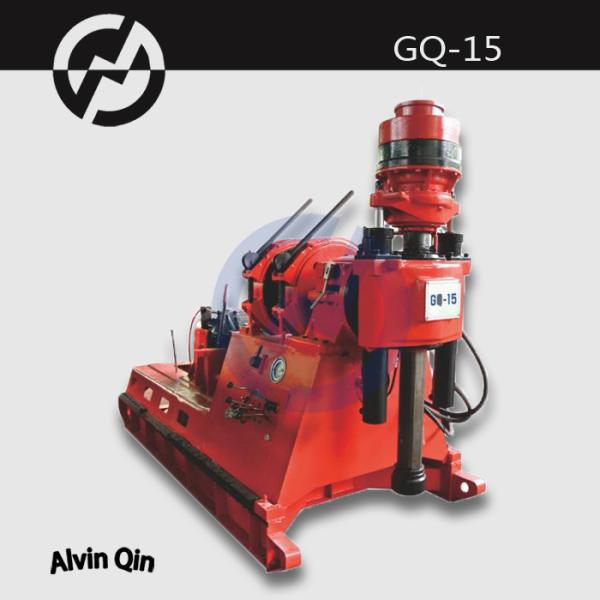

GQ-15 used for borehole drilling equipment

Also can be used for water well drilling & core sample drilling

Best choice for your projects.

perforar pozos de agua| perforaciones para agua| perforadoras de pozos| perforacion de pozo profundo| perforacion pozos agua| empresas de perforacion de pozos| venta de equipos de perforacion de pozos de agua

Product Description

Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine

Specification

items unit Value
hole caliber mm 400 ~ 1000
drilling depth m 100 ~ 50
Spindle speed Y225M-6 electric motor forward r/min 47.6; 80; 134; 224; 355; 383
reverse 53
Y225S-4 electric motor forward 72; 121; 202.5;338; 536; 578.5
reverse 80
Max. spindle output torque Y225M-6 electric motor N.m 6000
Y225S-4 electric motor 4980
spindle push force kN 73.5
spindle pull force kN 98
Max. spindle feed stroke mm 600
lifting force of hoist (with single wire rope) kN 39.6
retraction distance mm 530
power unit Electric Y225M-6 30 kW 980r/min
motor Y225S-4 37 kW 1480r/min
overall dimension (L×W×H) mm 3030×1250×1935
weight (excluding power unit, kelly) kg 2200
Max. detachable part kg 350
Packaging & Shipping

Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine

Our Company View

Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling MachineMini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine

Project Site

Mini Drilling Rig Water From China Construction Equipments GQ-15 Borehole Drilling Machine
