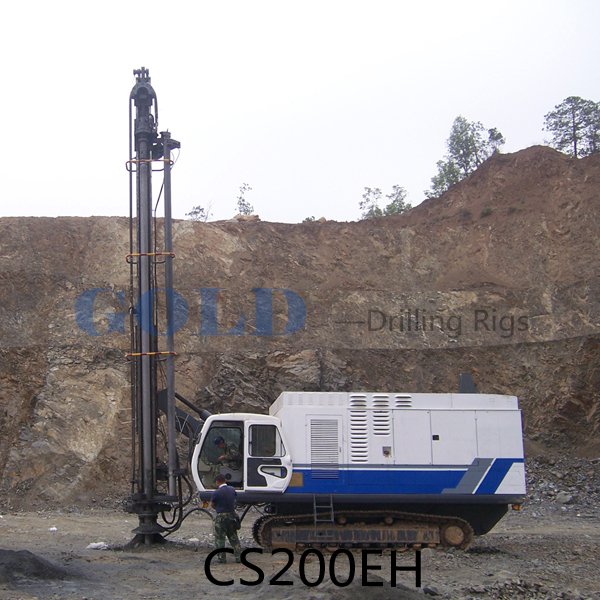

integration crawler down-the-hole drill CS200EH downhole drilling motor
integration crawler down-the-hole drill CS200EH downhole drilling motor
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
CS200EH
MOQ :
1 set
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
Price :
EXW USD5000/set
Warranty :
12 months
Description
integration crawler down-the-hole drill CS200EH downhole drilling motor
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

Product Description

integration crawler down-the-hole drill CS200EH downhole drilling motorintegration crawler down-the-hole drill CS200EH downhole drilling motor

Specification

Item Name Specifications Supplier Remarks
1 Structure L×W×H mm 12700×3450×5000 Dry dust collecting outside plug-in type, not included inside
Weight kg 33000
2 Chassis track assembly PC200-7(lengthening)
Travel motor GM 35L-D-76-140-3
total displacement of Motor(full/half) 140/76
Travel speed 2.0/1.0( Fast/slow block)
Gradeability ≥20°
3 Drilling parameters Drilling diameter mm 138~202
Drilling depth m 18m Can be option
Boom swing angle 0~40°
Drilling angle -15°~+60° Vertical basis
Swing angle about the propeller ±20° Advancing with the angle of the vertical line
Drilling rods diameter mm 114 According drilling diameter
Drilling rods length m 9
Drill library drill pipe capacity 1 pieces
4 Compressure parameter Model E1000RH
Sullair
 Add a set of pre-filter
Output pressure MPa 2.07
Displacement m3/min 28.3
Motor type Y2-355L-4
Power kW 250
5
Power
System
 Engine model 4BTAA B3.9 C115 CUMMINS
Power kW 86/2200rpm
Max. torque N.m 447/1500rpm
Motor type Y2-225M-4
Power kW 45
Hydraulic pump Model A1OV045
Hightech
 Rexroth technology
Displacement ml 45
6
Advance
Parameter
 Advance motor model IY3-1000IZD47+F
YINING
Output torque N.m 2800
Total displacement ml 1078
Propulsion force (lift)
kN
 0~39 Continuously adjustable
Propulsion speed (lift) 0~26m/min Continuously adjustable
7
Rotation
Parameter
 cycloid Motor Model 604-1384 YIDUN
Displacement ml 160
Gearbox reduction ratio 4.3
Rotary torque Nm 4700
Working rotation speed rpm 0~44/0~88 Two steps of continuously adjustable
8 American
Box changes		 Rated capacity kVA 500
Rated input voltage KV 6
9 Others Impactor RH550 Sandvik
Control type PLC
Electrical system voltage V DC24
Catching dust way Wet type+ dry type Bring their own water tank, available for the eight-hour work
10 Working condition Maximum altitude m 3000
Ambient temperature -40~50℃
