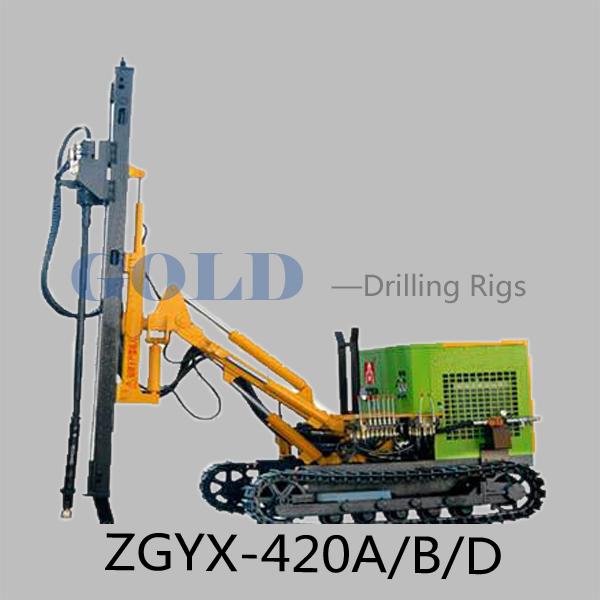

The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
CE
Model Number :
ZGYX-410
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
MOQ :
1 set
Price :
EXW USD5000/set
Warraty :
12 months
Description
The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]
Product Description

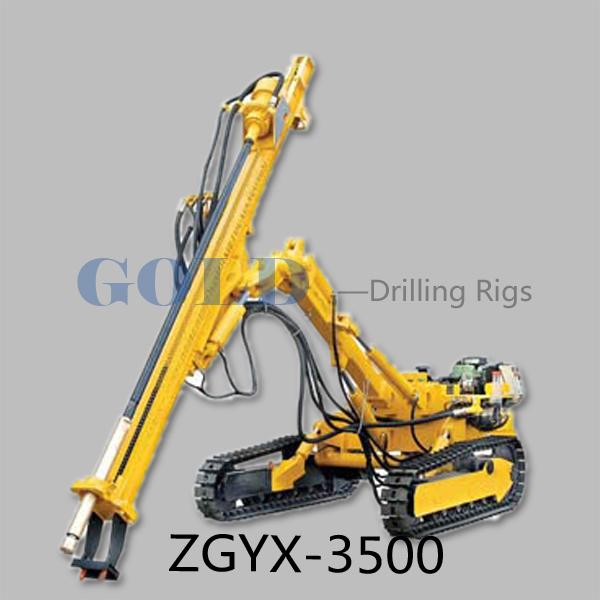

The drilling jumbo is a new improving type based on the original model ZGYX—2600,3500.

The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig

Features

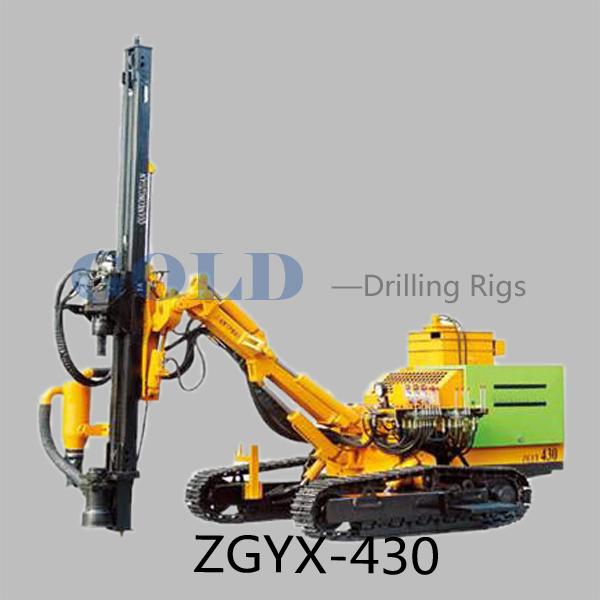

The characters of drilling jumbo ZGYX—410,420,430 is as follow:
1.it uses the moving sub-head,and hydraulic power is provided by the two-pump. The hydraulic system keep stability and reduce the use of cost.
2.it uses chains to keep pushing,increaing the lifting force and lower the trouble
3.Increasing Strength of Bent Beams and Both steel guideways, wear-resisting material clips reduce the trouble.
4.electric drilling jumbo adds the Retractable cable device ,decrease the injure of the bad condition.
5.add compressed air system.of diesel engine.and decrease the trouble of diesel engine.

Specification

Working Wind Pressure(Mpa) 0.7 - 2.0
Air Consumption(m3/min) 8 - 20
Bore Dia.(mm) 90 - 145
DTH-Hammer (mm) 930 Medium Pressure,340A
Bore Depth.(m) 30
Length of Drilling Pole (mm) 3000
Drilling Pole Diameter(mm) StyleA:60 StyleB:76
Climbing Ability(°) 30
Traveling Speed (km/h) 2 - 3.2
Rotating Speed (rpm) 0 - 80
Swing Torque (N.m) 1970
Total Weight(kg) 4500
Dimensions (mm) 5100×2260×2550
Matched Power
Yuchai YC4D80 ,Yuchai 4D952-K207
30kW- 4 Motor

Matched compressor recommended:
Diesel engine portable screw air compressor 110SCY-14.5 or 132SCY-14.5 or 179SCY-14.5
Electric engine portable screw air compressor 75SDY-14.5 o 90SDY-14.5 or 132/185SDY-14.5
