HZ-130YY portable water well drilling rigs for sale
HZ-130YY portable water well drilling rigs for sale
Specifications
Place of Origin :
Chongqing
Brand Name :
GOLD
Model Number :
XY-130YY
Certification :
CE
Packaging Details :
Plastic sheeting or wooden case for drilling rig
Delivery Time :
10 days
Payment Terms :
T/T, West union, L/C
Supply Ability :
100 sets per month
MOQ :
1 set
Price :
EXW USD5000/set
Drilling depth :
130 m
Maximum open hole caliber :
260 mm
Warranty :
12 months
Description
HZ-130YY portable water well drilling rigs for sale
Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

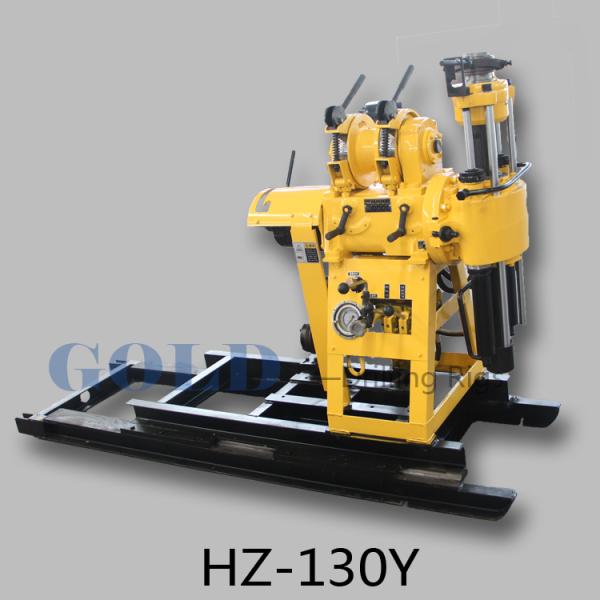

Water well drilling rig HZ-130YY

HZ-130YY portable water well drilling rigs for sale

HZ-130YY portable water well drilling rigs for sale

HZ-130YY portable water well drilling rigs for sale

HZ-130YY portable water well drilling rigs for sale

Unity machine parameter
Drilling depth 10-130m
Maximum open hole caliber 260mm
End hole caliber 75mm
Drill rod caliber 50mm
Drilling angle 90~75
Drill weight (No include power) 510 560kg
Unity machine dimensions 2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed 142,285,570r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 960kg
Single line lifting speed 0.41,0.82,1.64m/s
Tightrope caliber 27m
Mud pump of HZ-130YY model drilling rig
Type Horizontal single urn twin-action
Displacement 95/77L/min
Diesle engine Model s1110 18HP
Electric motor Y160M—4 11kw 1440r/min
Maximum pressure 1.2Mpa
Work pressure 0.7Mpa
Water inlet caliber 30mm
Water to exit caliber 25mm
Triangle conveyor belt B1575mm

HZ-130YY portable water well drilling rigs for sale

Package: Wooden Case or Plywood

Delivery: Container ship, 10 days after receiving deposit

HZ-130YY portable water well drilling rigs for sale

Established in 2009.

Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.

FAQ

1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, piling rig, etc. We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.

Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2,Are your products qualified?

Yes, our products all have gainedISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?All of our machines hold theISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offerone-year quality warrantyfor machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
