China Borehole Camera Manufactures for Water Well Video Cameras
China Borehole Camera Manufactures for Water Well Video Cameras
Specifications
Brand Name :
Gold
Model Number :
GYGD
Certification :
ISO
Place of Origin :
Chongqing, China
MOQ :
1set
Price :
EXW USD2000/set
Supply Ability :
100sets/month
Delivery Time :
10 days
Packaging Details :
Export case
Warranty :
12 months
Lens type :
Wide angle camera and rotary camera
Depth :
100m to 2000m
DVR :
Built in DVR
Description

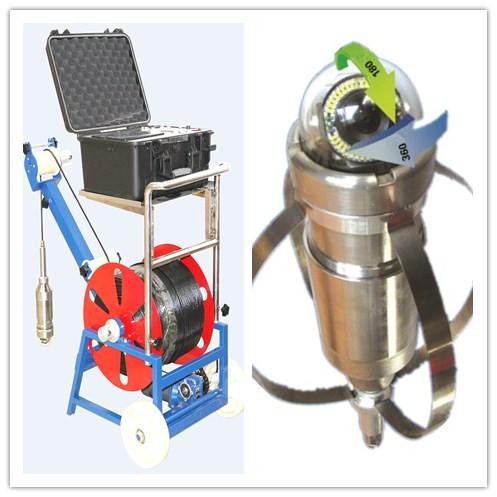

GYGD Borehole Inspection Camera

System component:

Ground displayer,camera probe, manual/ electrical winch with cable, DVR, Wellhead pulley

China Borehole Camera Manufactures for Water Well Video Cameras

Technical specification:

No. Product Configurations Dimension Specification
1 Camera Probe Dia.: 50/80mm Length:470mm

(1) Front lens are imported resins,

(2) Not easy damaged,

(3) Pressure is 20Mpa

(can be under 2000m deep water)

(4) Light: 6-12 LED Lights
2 Camera

(1) Japan SONY inductor 1/3'' CCD,

(2) Image definition is HD 850 TVL

(3 Watertight

(4) Camera Angle: 360 degree
3 Professional cable

Length:

0-2000m (optional)

(1) With steel wire,

(2) Tension is 150kg,

(3) Destroy tension is 260kg
4 Main Control Unit

(1) 220V/380V/12V optional.

(2) Aircraft grade aluminum alloay case
5 Downhole Pulley With counter
6 Logging Winch Hand/Electrical winch
7 Building HD DVR With SD card

Main application:

Stratum structure divide

Well wall stratum crack

Karst development discrimination

Distinguish fractured development zone

Determine the karst distribution position

Long time underground borehole monitoring

Features:

Real time video, collect, record

Clearly image show on ground instrument

Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole

Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,

oceaneering
