Downhole Inspeciton Camera 100m to 2000m Depth Borehole Well Video Colour Camera Centeral and Side View
Downhole Inspeciton Camera 100m to 2000m Depth Borehole Well Video Colour Camera Centeral and Side View
Specifications
Brand Name :
Gold
Model Number :
GYGD
Certification :
ISO
Place of Origin :
Chonqing, China
MOQ :
1set
Price :
EXW USD2000/set
Supply Ability :
100sets/month
Delivery Time :
10days
Packaging Details :
Export case
Camera Type :
180degree and 360degree rotary
Pixel :
850Line
Voltage :
220v/12v/110v optional
Warranty :
12months
Usage :
View water well
Description

Downhole Inspeciton Camera 100m to 2000m Depth Borehole Well Video Colour Camera Centeral and Side View

Contact Name: Vivienne

Mobile Phone: +86-15123029803

Skype: viviennecq

FAX: 023-62940030

Tele: +86-15123029803

Email: cqgold04@hotmail.com

Any of your requirements would be really appreciated ! Thanks.

Main application:

Stratum structure divide

Well wall stratum crack

Karst development discrimination

Distinguish fractured development zone

Determine the karst distribution position

Long time underground borehole monitoring

Features:

Real time video, collect, record

Clearly image show on ground instrument

Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole

Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,

oceaneering

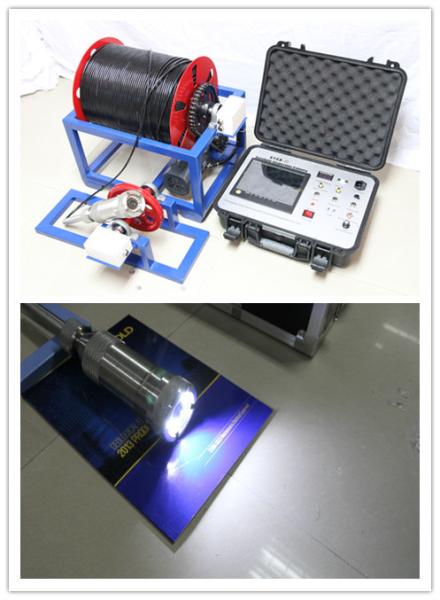

System component:

Ground displayer, logging probe, electrical winch with cable, DVR, Wellhead pulley

Technical specification:

No. Accessories Dimension Specification
1 Camera

Dia:

40mm, 75mm Optional
  • SONY inductor 1/3'' CCD
  • Horizontal resolution 850lines
  • Camera:360º rotary
2 Probe Length 270mm
  • Front lens are imported resins
  • Pressure is 20Mpa (can be under 2000m deep water)
3 Controller
  • 220V/380V/12V optional
  • LCD display can be 8/15inches
  • Aircraft grade aluminum alloy
4 Winch Manual/Electrical Winch
5 Cable

Diameter:6.2mm

Length:100-2000m
  • With steel wire
  • Tension is 150kg
  • Destroy tension is 250kg
6 Wellhead pulley With depth counter
7 DVR Build in ground controller DVR with storage card

Downhole Inspeciton Camera 100m to 2000m Depth Borehole Well Video Colour Camera Centeral and Side View
