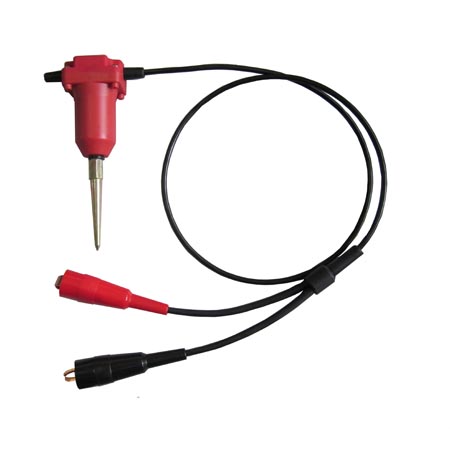

2hz/2.5hz/4hz/4.5hz Seismograph Geophone Seismic Sensor for Sale
2hz/2.5hz/4hz/4.5hz Seismograph Geophone Seismic Sensor for Sale
Specifications
Brand Name :
Gold
Model Number :
GD
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
USD35/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/month
Delivery Time :
7days
Packaging Details :
Export package
Product :
Vibration tester
Frequency :
1hz to 100hz
Type :
Vertical/horizontal/3component
Warranty :
1 year
Description

2hz/2.5hz/4hz/4.5hz Geophone Seismic Sensor for Sale

2hz/2.5hz/4hz/4.5hz Seismograph Geophone Seismic Sensor for Sale

It are remarkably simple (yet ingenious) devices. The active element of the device consists of a mass hanging on a spring. When the ground moves, the mass (because it has inertia) wants to remain motionless. If you were watching the seismometer as the ground moved, it would look like the mass itself was moving. But, in reality, you are moving with the ground, and the mass is remaining motionless.

2hz/2.5hz/4hz/4.5hz Seismograph Geophone Seismic Sensor for Sale

Type 4.5
Natural frequency(HZ) 4.5±0.5
Typical spurious frequency(HZ) ≥140
Coil resistance(Ω) 375±5%
Open circuit damping 0.56±8%
Open circuit sensitivity(v/m/s) 28.8±5%
Distortion(%) 0.3
Moving mass(g) 11.1
Max. coil excursion P.P(mm) 3
Allowable tilt(°) 0
