Cheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection Camera
Cheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection Camera
Specifications
Brand Name :
Gold
Model Number :
GYGD
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Price :
USD1000 to USD8000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
3days
Packaging Details :
Export case
Product name :
CCTV Camera
Depth :
Deep cctv camera
Power :
Electrical CCTV Camera
Warranty :
12 months
Description

Cheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection Camera

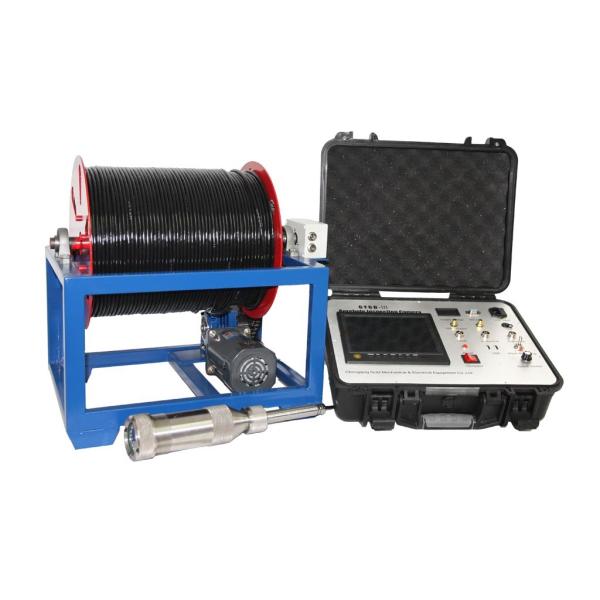

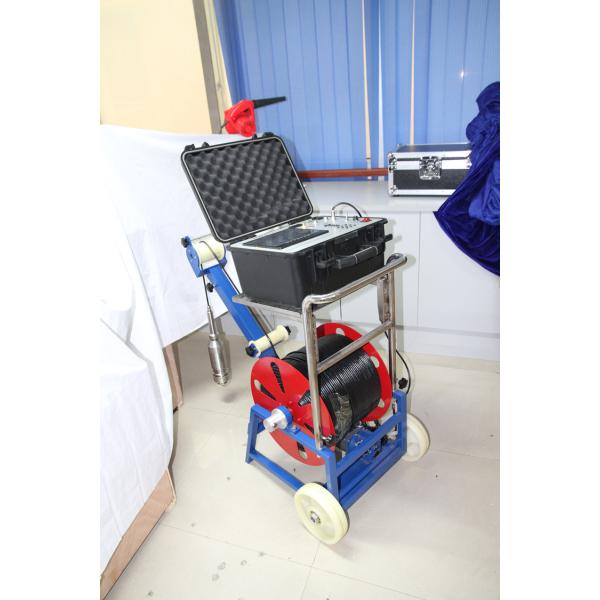

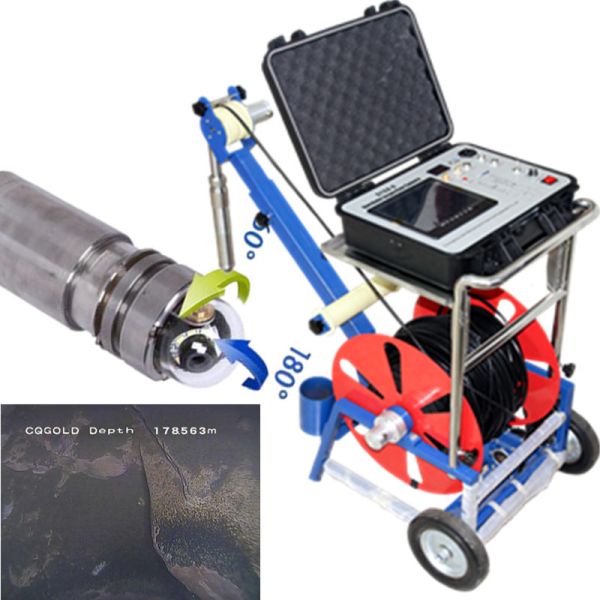

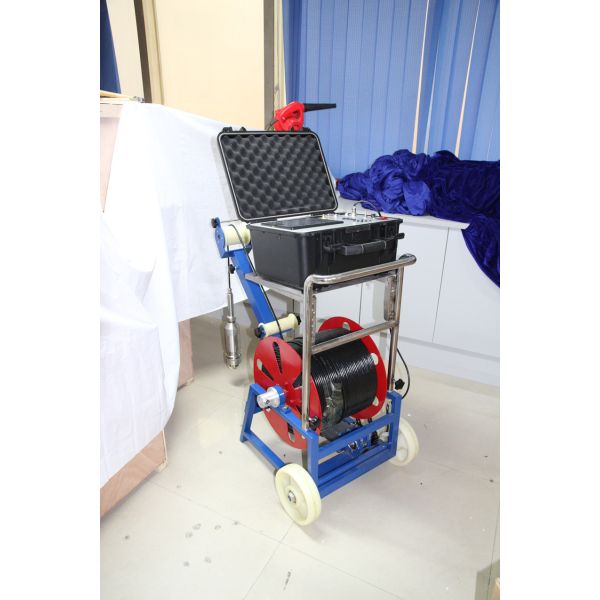

The system comes standard with the winch, control centre, monitor, Camera, and power cable. The camera is also compatible with underwater of equipment which allows the option to upgrade to an downhole video camera.

Cheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection Camera

WINCH
Cable: 100m to 1000m or 500 feet (152 meters) of Kevlar Reinforced Coaxial Cable
Cable Head: Detachable Laval Quick-Connect Cable Head, Pressure Rated to 5,000 PSI with Built in Strain Relief.
Drive: Manual Hand Crank Reel with Collapsible Handle for Maximum Portability
Brake: Interlocking, Manual Brake with Actuator Lever for 360 degree Stopping Capability
Dimensions: 17 Inches High (43 cm), 15.5 inches Wide (40 cm), 15 inches Deep (39 cm)
Weight: 22 lbs (10 kg) without cable. 30 lbs (13.6 kg) with 350 feet (107 m) and 33 lbs (15 kg) with 500 feet (152 m)
Monitor: 7 inch LCD Colour Monitor with Adjustable Mounting Bracket
Depth Counter: On-screen depth Display measured in feet and tenths or meters with Optional Tripod
Tripod: Optional Tripod with Telescoping Legs extends from 33 inches (84 cm) to 48 inches (122 cm) with Adjustable Sheave Roller. Optional Optical Depth Encoder, Counter Wheel, and Connecting Cables Available.

Camera Diameter: 1.66 inches (4.22 cm) O.D.
Overall Camera Length: 16.5 inches (42 cm)
Housing: Stainless steel

Total Camera Weight: 9 lbs (4.1 kg)
Pressure Rating: Pressure tested and waterproof to 750 psi
Camera Resolution: Downhole greater than or equal to 540 TVL (both NTSC and PAL)
Operating Temperature: 0 to 50 C (32 to 122 F)
LED Lighting: 18 High intensity, long life, shock proof LEDs

Cheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection CameraCheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection Camera

Cheap Borewell CCTV Camera 200m/500m/1000m Deep Water Well Inspection Camera
