Electrical Resistivity Survey Meter Geophysical VES Test Equipment for Groundwater Surveying
Electrical Resistivity Survey Meter Geophysical VES Test Equipment for Groundwater Surveying
Specifications
Brand Name :
Gold
Model Number :
WDDS-2
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Price :
USD1000/set to USD3000
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month
Delivery Time :
10 days
Packaging Details :
Export case
Product name :
Geophysical resistivity meter
Method :
Vertical electrical sounding resistivity meter
Voltage :
700v
Current :
3.5A
Warranty :
12 months
Description

Electrical Resistivity Survey Meter Geophysical VES Test Equipment for Groundwater Surveying

Electrical Resistivity Survey Meter Geophysical VES Test Equipment for Groundwater Surveying

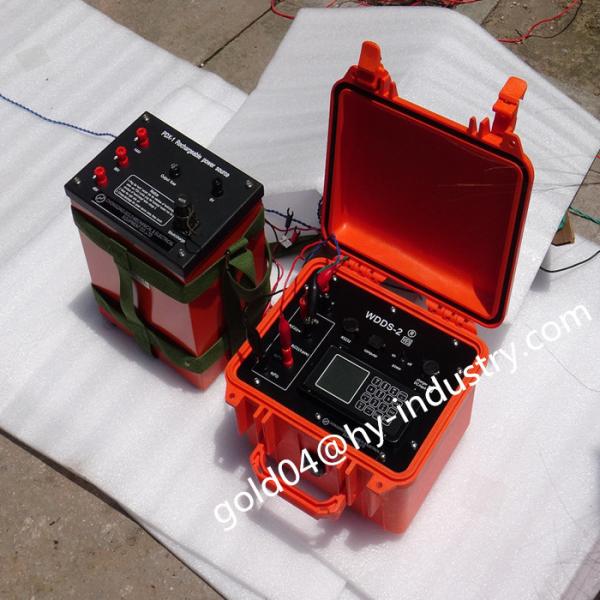

WDDS-2 Resistivity Meter is the basic resistivity meter only with function of 1D Res Sounding

This resistivity meter is the new generation DC resistivity instrument using 32-bit single chip computer technology and 24-bit A/D technology. Widely used in metal and non-metal resources exploration, civil geophysical prospecting, railway and bridge prospecting etc, it also can be used in hydrology and engineering geology prospecting such as underground water exploration, dam foundation setting out and dam hidden danger exploration etc. This instrument can be applied to geothermal prospecting.

Electrical Resistivity Survey Meter Geophysical VES Test Equipment for Groundwater Surveying

specification:

Receiving:

Voltage:+-24V,+-0.5% 1bit,24bit A/D

Maximum voltage sampling resolution:0.01μV Input impedance:≥50ＭΩ

SP compensation range:+-10V Current:3.5A,+-0.5% +-1bit,24bit A/D Maximum current sampling resolution:0.02μA

50Hz power frequency interference suppressing better than 80dB

2.Transmitting:

Maximum transmitting power:3500W

Maximum supply voltage:+-1000V(2000Vp-p)

Maximum supply current:+-3.5A(7Ap-p)

Power supply pulse waveform:duty ratio: 1:1 bipolar 3.Others:

Display:160×160 LCD

Storage capacity: 1GB (expandable)

Power supply: Internal battery (external 12V), provides continuous working hours more than 20 hours. Main machine interface: A,B,M,N. HV DC, external power supply and charging port, RS-232 and USB port. Dimension: 270mm×246mm×175mm

Weight: ≤4.2kg(WDDS-2)≤5.5kg (WDDS-2B)

Working temperature: -10℃～+50℃,95％RH

Storing temperature: -20℃～+60℃

Internal high power battery (only WDDS-2B):

Maximum working power 200V.

Electrical Resistivity Survey Meter Geophysical VES Test Equipment for Groundwater Surveying
