Portable Multi Shot Light Weight Electronic Inclinometer
Portable Multi Shot Light Weight Electronic Inclinometer
Specifications
Place of Origin :
China
Brand Name :
GOLD
Certification :
ISO CE
Model Number :
GD0-1
MOQ :
1set
Price :
10-50
Packaging Details :
Natural Package
Delivery Time :
Within 10 working days
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
1000 sets/quater
Description

Portable Multi Shot Light Weight Electronic Inclinometer

Main Applications and Features

The instrument is an instrument used to determine displacement by dip angle. It is mainly used to detect horizontal displacement of deep excavation, side slope, foundation, and pier during observation periods. Bury casing tube in the ground by drilling. When deformation occurs in deep excavation, side slope, and foundation, the casing tube will change, too. The inclinometer probe moves along casing tube and make determination point by point. Then you can get accurate horizontal displacement. Then you can make prediction to provide guide to construction according to horizontal displacement determined. When make determination for pier, you just fix it on the pier, it can determine inclination change of pier.

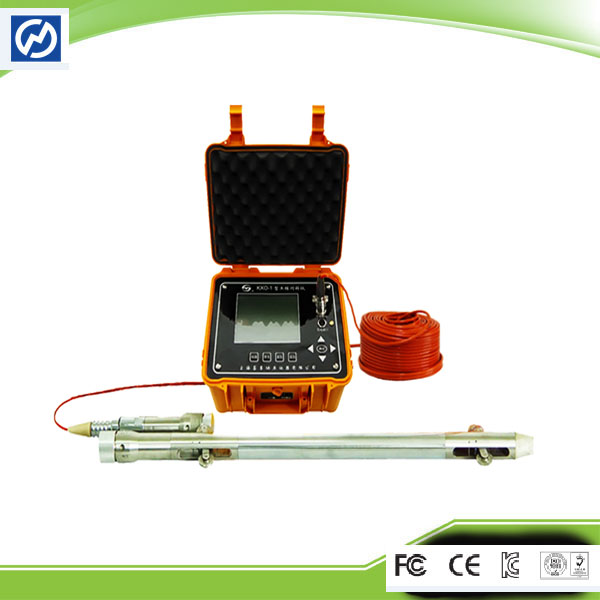

The picture of Electronic Inclinometer

Portable Multi Shot Light Weight Electronic Inclinometer

Main Technical Specifications

1. Inclinometer probe: φ34×800mm;
2. Rectangular error of accelerator sensor: ≤0.5°;
3. Distance interval between guide wheels: 500 mm;
4. Measurement accuracy: 0.5mm/1m, with resolution of 5″;
5. Measurement range: 0∼30º;
6. Measurement depth: ≤ 50 m;
7. Cable: 60 m;
8. Data storage: test data of 60 boreholes;
9. Working temperature:
(1) Controlling case: -10℃ ~ +50℃;
(2) Inclinometer probe: 0℃~ +50℃;
10. Size of controlling case: 275×225×155 mm;
11. Power supply: contain chargeable lithium battery. It can work for more than 8 h after been charged.

Activities display of our team

Portable Multi Shot Light Weight Electronic Inclinometer

Why choose us?

1.We have more than 6 years of developed sales chanels in many countries.

2.Our company are highly acclaimed and favorably accepted by numerous customers and

possessed of the right to import and export.

3.We prominent emphasize the human concern,respect,rust in company management,

as we as stimulate staff's sense of responsibility and the sense of mission.

4.Inspected by the Inspection Institution of Bureau Veritas Certification.

5.100% QC inspection Before Shippment.

6.CE/ISO listed,competitve price.effective delivery.

Contact me as follow
Contact person:Elvis Tang
Tel:+86-023-62940053 Phone:+86 13637882303
Whatsapp:18223102673 Skype:tang.yan86
Facebook:Hiayan
Web:www.cqtestkit.com
www.huobosurvey.en.alibaba.com
