Water Drilling Machine and Mining Machine for Drilling 0-1000M
Water Drilling Machine and Mining Machine for Drilling 0-1000M
Water Drilling Machine and Mining Machine for Drilling 0-1000M
Water Drilling Machine and Mining Machine for Drilling 0-1000M
Water Drilling Machine and Mining Machine for Drilling 0-1000M
Water Drilling Machine and Mining Machine for Drilling 0-1000M
Specifications
Brand Name :
Gold
Model Number :
GD
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
20000
Payment Terms :
L/C T/T Western Union
Supply Ability :
100 set /moth
Delivery Time :
10days
Packaging Details :
Plastic sheeting or wooden case
Drill Depth :
0-600M
diameter :
75-300mm
drill type :
rotary
engine :
diesel
Description

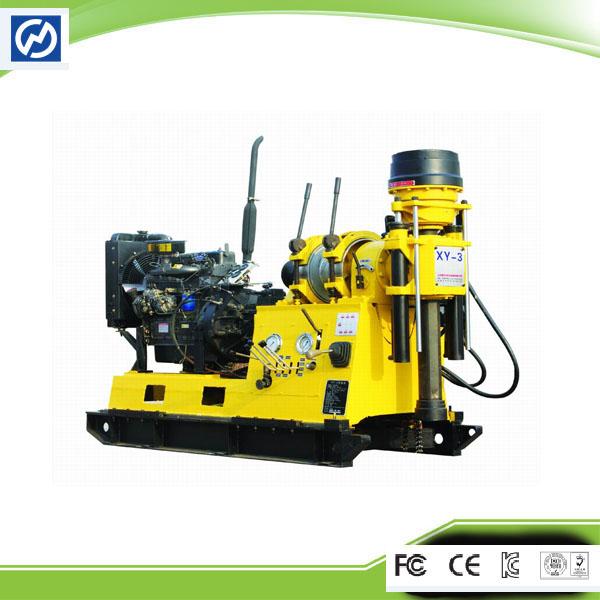

The picture of Mobile Drilling Rig

Water Drilling Machine and Mining Machine for Drilling 0-1000M




What's the feature of our Mobile Drilling Rig?

1. 53*59 drilling rod adopted,high rigidity and strong delivery torque.

2. The machine is equipped with national patent technology---taper clutch,with characteristics of strong transmission torque,easy opration and free maintenance.

3. For the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability for the winch.

4. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

5. We are first one to equip with mud pump with the flow 160L/min in China so that it will save cost and also make the machine compact,mobile and lightweight.


What's the technical parameter of our Mobile Drilling Rig?

Drilling depth m 100 250 300 600
Drilling DI mm 300 200 150 75
Open hole DI mm 300
End hole DI mm 75
Drilling rod mm Φ60
Drilling angle 90°-65°
Rotary Spindle
Spindle forward speed r/min 30-1050
Spindle reverse speed r/min 29-137
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity KN 60
Main Winch ( drive hydraulic system)
Single line lifting speed m/min 0-45
Hug floodgate belt width mm 90
Tightrope diameter mm 14
Hoist single line lifting capacity KN 40
Roller diameter mm 200
Roller cubic measure m 30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement L/min 250
Work pressure Mpa 7
Water inlet caliber mm 75
Water to exit caliber mm 50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure 63mL/r 20Mpa
Behind displacement,pressure 25mL/r 20Mpa
Drilling rig Power
Diesel engine Hp 4100# 40HP
Electric motor KW Y180L-4 22KW



What's the accessories of Mobile Drilling Rig?

Water Drilling Machine and Mining Machine for Drilling 0-1000M




Water Drilling Machine and Mining Machine for Drilling 0-1000M




Trade Terms

1.Payment:T/T,Western Union,L/C

2. Delivery Time:within 10 week working days

3.Warranty:1 Year

4.Packing information:wooden cases with standard exporting package



Our packing way for your reference


Water Drilling Machine and Mining Machine for Drilling 0-1000M


Contact me as follow
Becky Luo
Email: gold08@hy-industry.com
Whatsapp: 86-18716810768
Skyep: beckyluo127
