Specifications
Brand Name :
JZHY
Model Number :
JZ-726
Certification :
CE / ISO
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per Month
Delivery Time :
7-10 Days
Packaging Details :
Wood Density Board
Support :
OEM/ODM
Description

JZ-726 EUI EUP HEUI All-In-One Machine Pump Injector HPI Test Bench

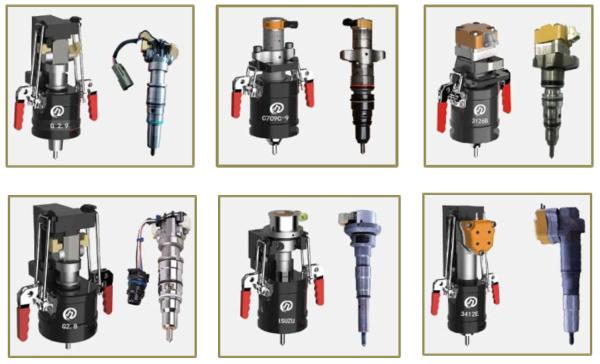

Standard Functions:

  • Test unit injectiors (EUI)
  • Test unit pumps (EUP)
  • Testing HEUI injectors

Optional Functions:

  • Test X15, Q60 unit pump

Assistant Functions:

  • Fuel tank oil level lower limit alarm
  • Equipped multiple high-precision filters
  • Test oil automatic heating/cooling control
  • Real-time display injection/return curves

Technical Parameters
Output 7.5KW
Speed Control Mode Frequency Converter
Power 3-Phase 4-Wire 380V 50/60HZ
Cooling System Air Cooling (Air Conditioning Optional)
Nozzle Sensor Gear Flow Sensor
Rail Pressure 0-2700 Bar
Rail Pressure Precision ±5 Bar
Oil High Pressure 0-315 Bar
Diesel Low Pressure 0-25 Bar (manual)
Diesel Tank Volume 20L Filtration Accuracy: 3 µm
Oil Tank Volume 20L Filtration Accuracy: 5 µm
Pulse Width 100-3000 µs
Fuel Temperature 40±2°C
Machine Dimension 1900*1050*1830 mm
Packing Dimension 2000*1200*1950 mm
Net Weight 920KG
Gross Weight 1030KG
