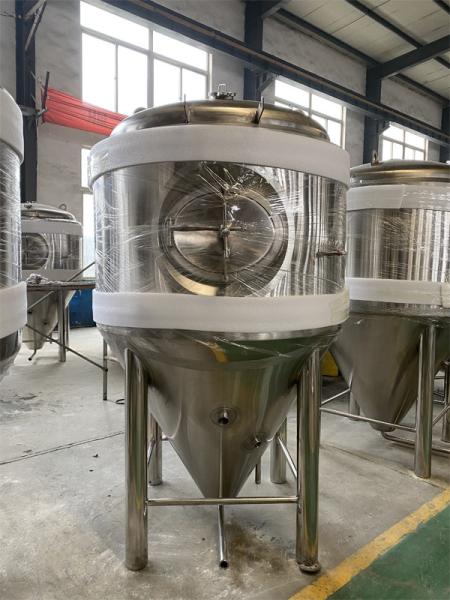

10BBL Beer Brewing Equipment Stainless Steel Conical tank

Products description:

Material food grade SS304, duoble wall tank, Inner wall thickness is 3mm,Outside is:2mm,dished head and cylinder tank with four legs;

Inner surface adopt pickled and passivated

Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.

Side Manhole

Design pressure 3bar, Working pressure: 1.5-2.0bar; Bottom design: 60 degree cone for easy to exist yeast.

With dimple cooling jacket .Cleaning system: Fixed-round rotary cleaning ball.

PT100, temperature sensor ,Dry hops adding device on the top.

Automatic pressure control with techanical pressure regulating valve.

CIP arm with spray ball, pressure gauge, , sanitary sampling valve, breath valve, Ice water solenoid valve, drain valve, etc.

Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

Company Information:

Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and tradecomprehensive enterprise dedicated in research, manufacturer, development, sales and after-sale service, until now have the 16 years produce experience, company focuses on beer system project that refer to fruit wine equipment, white spirit and alcohol equipment etc, our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ value and market competitive.

Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.

Our certification:
