high quality 100L beer brewing system sus304 micro craft beer making machine for brewery

ZH-100L Beer Brewing Equipment

We are the beer brewing equipment manufacturer in China, all of our products have passed CE and ISO certification.Mainly supply 50L-5000L beer brewing system for brewery, pub, restaurant and home brewing amateur. If you have a good idea about start a brewery, and you don't know what to do in the process, you are welcome to communicate with our experienced sales staff. If you are looking for the most reasonable price, you are also welcome to contact us for the best quote.

Product list

1. Malt Milling

Double roller

Power : 0.55kw

Speed:500(r/min)

Capacity:300(kg/h)

Controlling input adjustable slide gate,equip motor, pulley, belt etc.

2. Mash System

1. Total volume: 600L, Effectivevolume:500L

2. Inside surface: SUS304, Thickness:3mm

Outside surface: matte polishing stainless steel, Thickness:2mm;

Thermal insulation material: rock wall, thickness: 80MM,

Liner pickling passivation

3. Materials: Stainless steel 304

4. Heating method: steam heating

5. Feedstock method: it is designed by seal pump to pump out design, Mash pump with high power and low speed.

6. Sealing method: Top pressure manhole feeding,

7. Temperature measurement method: PT100 temperature probe

8. Top stainless steel manhole, size: 350mm.

9.. Cleaning method: CIP Fixed rotate cleaning ball and sparage coil. top manhole,

10. With:thermometer, level all necessary valves and fittings;

11. Stainless steel legs, with screw assembly to adjust leg height.

12. Matching valve accessories

13. Processing technology: argon arc welding, external polishing, internal pickling passivation, no welding dead angle, to ensure fluid quality.

14. The upper part is equipped with a reducer and a connecting mixer.

15. The internal mixing device is equipped with the connection speed reducer and evenly heated.

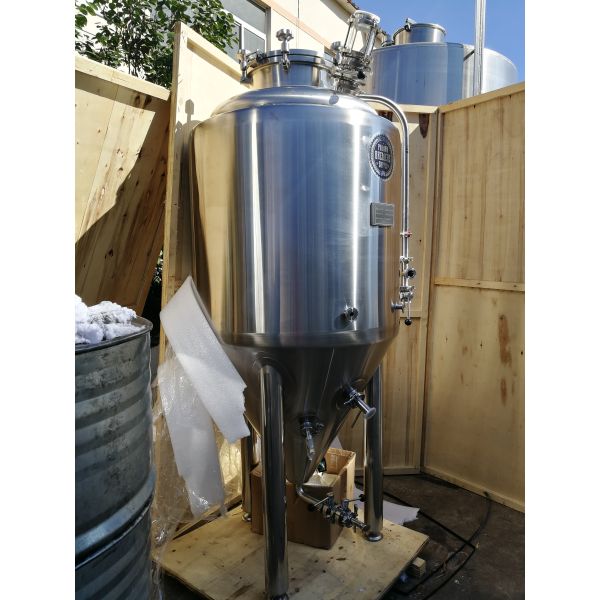

3. Fermentation System

1. Totalvolume: 600L( 30% air volume),Effective volume:500L,

2. cylinder tank; Inside surface: SUS304, Thickness:3mm,Outside surface: polishing stainless steel, Thickness:2mm, liner pickling passivation

3. Thermal insulation material: Polyurethane (PU) foam,Insulation thickness: 80MM.

4 Working pressure: 0.2Mpa;

5. Bottom design: 60degree cone for easy to exist yeast. Liner pickling passivation

6. Cooling method: Dimple cooling jacket(Cone and cylinder 2 zone cooling); Or screw type belt

7. Cleaning system: Fixed-round rotary cleaning ball.

8. Temperature measurement method: PT100 temperature probe

9. Control system: PT100, temperature control;

10. Manhole:Top Manhole

11. With: CIP arm with spray ball, pressure gauge, mechanical pressure regulating valve, hops adding device and CO₂ adding device,sampling valve, breath valve, Ice water solenoid valve, etc.

5. CIP Cleaning System

1. Material SUS304

2. Thickness for tank 2mm

3. Heating power for Alkali Tank 2KW

4. Tank amount 2pcs

5. Valves, pipes, tri-clamps 6pcs, DN 32,

6. Half open manhole for easy cleaning and no dead corner.

6. Control system

1. Power Control for Mash System,

2. Control Wort pump; Frequency control.

3. Temperature control, control the mash system, fermentation temperature.

4. refrigerator, ice water pump,

5. Power Control for Cooling System.

Question and Answer:

1, Are you a manufacturer?

- Yes, our production experience has been more than 7 years

2, Can you customize it according to my requirements?

- Of course, just contact us and let me know your special requirements.

3, Can you provide me more details?

- No ploblem, tike tank argon arc welding welds, tank pickling passivated surfaces, external polishing details, etc.

4, Can you help me calculate the shipping cost?

Of course, you just need to tell me your port information.
