ZH- craft beer brewing equipment

Applications area: Beer Bars, Hotels, Restaurants etc.

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and tradecomprehensive enterprise dedicated in research, manufacturer, development, sales and after-sale service, until now have the 16 years produce experience, company focuses on beer system project that refer to fruit wine equipment, white spirit and alcohol equipment etc, corollary equipment, our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ valve and market competitive.

1. Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.
2. Manhole: Side manhole.
3. Design pressure 3bar, Working pressure: 1.5bar;
4. Bottom design: 60degree cone for easy to exist yeast.
5. Cooling method: Dimple cooling jacket
6. With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, CO2 adding device, sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.
7. Surface protection, weld slinging band with stainless steel leg, adjustable bolt to adjust leg height;
8. Argon arc welding, Inside and outside the polishing, No welding corner to ensure the quality of the fluid

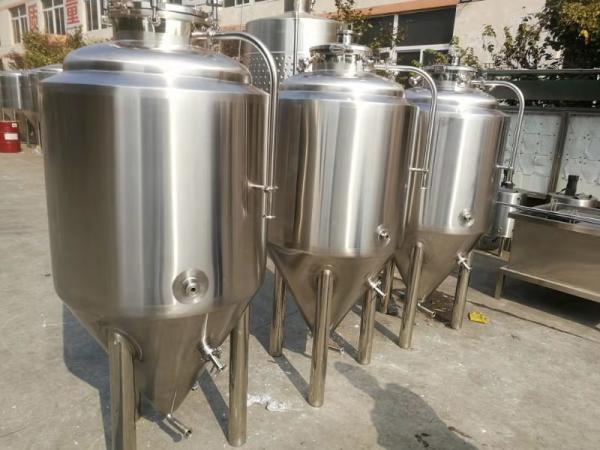

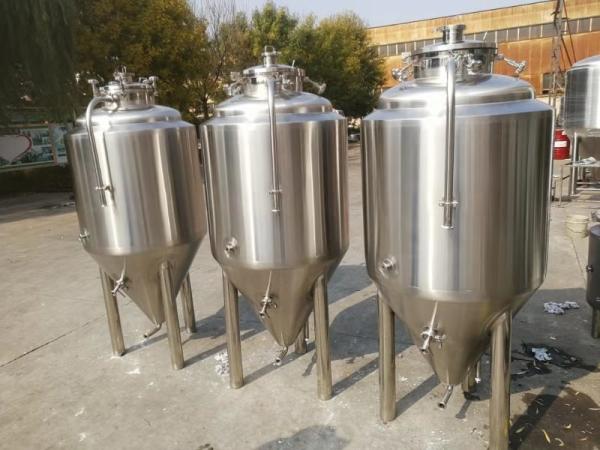

Details of fermentation tanks:

Pressure gauge PRV Side manhole

Manhole Sample valve CIP pipe Beer Outlet

Working by our workers

From the very beginning during the production.

The technical drawing of the 300L fermenter with side manhole.

Necessary accessories

More reference of 300L fermenters with top manhole(Located the Netherlands)

Some data of the general fermenters.

Ten services:

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.
