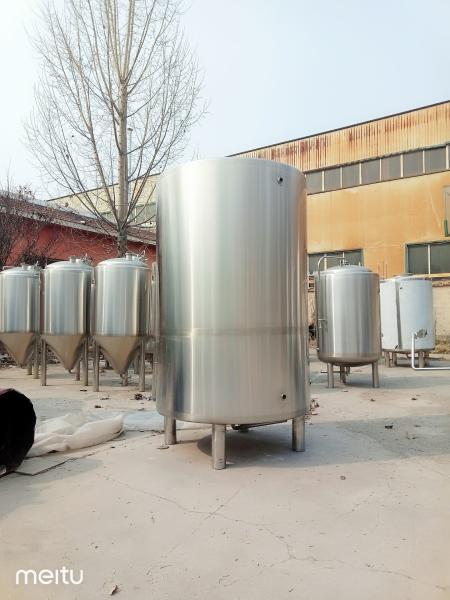

Bright beer tank are often called serving tanks, tax determination tanks or clear beer tanks, bright beer tanks or maturation or conditioning tanks. These tanks are used for the storage of the beer prior to being served or packaged. Depending on their application, the beer serving tanks can be glycol jacketed or can be located in the cold room. For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.
Equipment Sturcture:
Mash lauter tank with 3mm SUS304 interior shell, 2B finished surface, top with quick-open ordinary pressure manway, 15°cone bottom with outlet port. Self-made filter sieve plate, side out manhole, Middle of the tank with PT100 temperature probe, thickness of rock wool is 50mm, Exterior shell with 2mm SUS 304, drawbench finished surface. Kettle whirlpool tun with 3mm SUS304 interior shell, 2B finished surface, top with quick-open ordinary pressure manway, 15°cone bottom with blow-down and side with outlet. Middle of the tank with electrical heated tube and temperature probe, thickness of rock wool is 50mm, Exterior shell with 2mm SUS 304, drawbench finished surface.
Control box used to control pump, show and control mash and kettle temperature, removable plate heat exchange, wort oxygen fixture which will show outlet temperature. All equipment fixed on mobile platform.

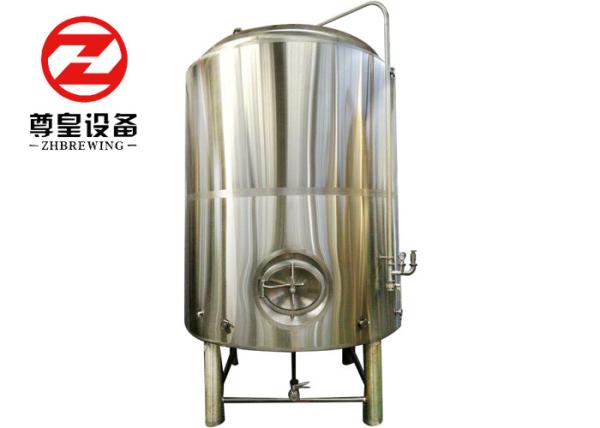

Description Stainless steel micro brewery wine / Bright beer tank
Sanitary stainless steel Bright beer serving tank stainless steel storage tank | |
Function | Beer maturation/conditioning/serving/filted beer receiving |
Tank capacity | 2000L(+20%headspace minimum) |
Interior shell | SUS304 full welded,TH=3mm |
Exterior shell | SUS304 full welded,TH=2mm |
Insulation | High density polyurethane foam;TH=80mm |
Glycol jacket | Dimpled plate on side wall |
100% TIG welding with pure argon gas shield | |
TC connection CIP arm with 360 degree coverage spraying ball |
Engineering:before buyer confirm the order,we support sending the necessary brewery equipment layout,3D brewery drawing,beer brewing flow chart and tank drawing let you reference.
After-sales
We guarantee the main system 5 years warranty,the electrical component 1 year warranty,during the warranty time ,if have parts broken we will change new one for free or send engineer to maintain(except the worker wrong operation).
