Most breweries today use cylindro-conical vessels, or CCVs, which have a conical bottom and a cylindrical top. The cone's aperture is typically around 60°, an angle that will allow the yeast to flow towards the cone's apex, but is not so steep as to take up too much vertical space. CCVs can handle both fermenting and conditioning in the same tank. At the end of fermentation, the yeast and other solids which have fallen to the cone's apex can be simply flushed out of a port at the apex.

_{Main Features:}

Fermenter:

1. Effective volume:2000L, dish head and cylinder tank;

2. Inside surface: SUS304, TH:3mm,

Outside surface: SUS304, TH:2mm;

Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.

3. Manhole: top manhole on dish head, (or side manhole)

4. Design pressure 3bar, Working pressure: 1.5-2.0bar;

5. Bottom design: 60 degree cone for easy to exist yeast(according to room height)

.

6. Cooling method: Dimple cooling jacket,

7. Cleaning system: Fixed-round rotary cleaning ball.

8. Control system: PT100, temperature control;

With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, sanitary sampling valve, breath valve, Ice water solenoid valve, drain valve, thermometer etc.

9. Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

10. Complete with associated valves and fittings.

Main Part details

1	Dimple cooling jacket

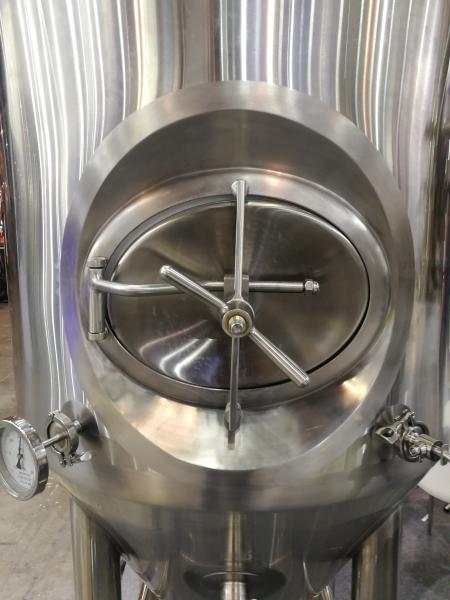

2	Manhole(side manhole or top manhole )
3	Cleaning ball
4	Cleaning tube
5	Drain outlet valve
6	Sample valve
7	Mechanical pressure relief valve
8	Ice water solenoid valve
9	breath valve
10	hop port
