500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
Specifications
Brand Name :
ZHBREW
Model Number :
ZH-500L
Certification :
CE , ISO 9001
Place of Origin :
Jinan , ShanDong , China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
20 sets per month
Delivery Time :
20 working days
Packaging Details :
Steel frame or wooden cases
Function :
Fermentation
Capacity :
500L
Manhole :
Side manhole
Insulation :
PU=80mm
Thickness :
Inside: 3 mm , outside : 2mm
Height :
2.2meter
Heat area :
1.35 ㎡
Weight :
265 KG
Description
500L Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System
Company Information

Shandong Zunhuang Brewing Equipment Co., Ltd., which is a professional craft beer equipment manufacturer in China.

Our equipment have passed ISO9001, CE, third-party inspection, exported to 60 countries and regions around the world.

Fermentation System

1. Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.
2. Manhole: Side manhole.
3. Design pressure 3bar, Working pressure: 1.5bar;
4. Bottom design: 60degree cone for easy to exist yeast.
5. Cooling method: Dimple cooling jacket
6. With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, CO2 adding device, sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.
7. Surface protection, weld slinging band with stainless steel leg, adjustable bolt to adjust leg height;
8. Argon arc welding, Inside and outside the polishing, No welding corner to ensure the quality of the fluid

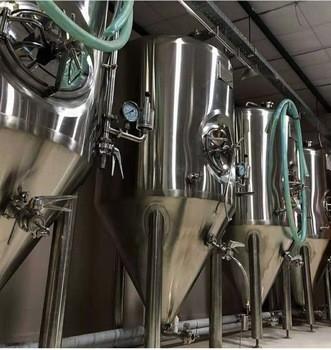

Pressure gauge PRV Side manhole

500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System

Manhole Sample valve CIP pipe Beer Outlet

Necessary accessories

500 Liters Beer Fermentation Tank Conical Fermenter Equipment For Beer Brewing System

Some data of the general fermenters.

Items Total Volume/L ID/mm OD/mm Height/mm

Exchange area

/Square meter

 Weight/kg
50L Fermenter 70 350 450 1530 0.37 65
100L Fermenter 140 500 630 1430 0.5 85
200L Fermenter 250 600 750 1850 0.8 150
300L Fermenter 400 650 800 2190 1 195
400L Fermenter 550 750 900 2200 1.3 220
500L Fermenter 660 800 970 2200 1.35 265
600L Fermenter 770 800 970 2420 1.6 280
1000L Fermenter 1300 1050 1200 2630 2.8 320
2000L Fermenter 2560 1400 1560 2900 3.7 540

FAQ


1.Q: Are you a manufacturer?
A: We are the manufacturer of beer brewing equipment for 16 years.
2.Q: Can I have the customized products for myself?
A: Yes,we can design and manufacture as client's requirements.
3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certificate and highly in accordance with GMP. Equipment is made of high quality of SUS304/316. Inspect certificate is available.
4.Q: How about the after sales service?
A: For our after-sale service, we promise all life of technical support to new and old customers.
All of our products is available with 10 years warranty even for spare parts within quality warranty period, our service is free of charge.

Ten services:

1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you nee
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.
