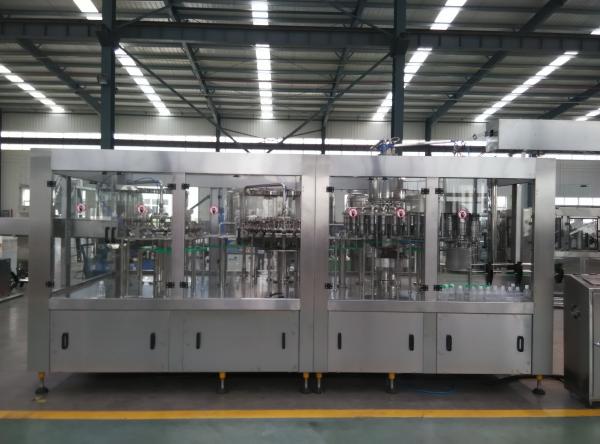

Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V
Specifications
Brand Name :
GD
Model Number :
GD
Certification :
CE, UL,ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
20 sets per month
Delivery Time :
40-50 working days
Packaging Details :
iron frame /plate
Type :
Filling Machine
Condition :
New
Application :
Beverage, Chemical, Commodity,
Packaging Type :
Barrel, Bottles, Cans, jars, tins
Automatic Grade :
Automatic
Driven Type :
Pneumatic+electric
Voltage: :
AC220V or AC380V
Power :
3.5Kw.
Material :
SS 304 and alloy
Filling volume: :
0-1000ml,5000ml
warranty :
12 months
Description

Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V

Suitable as an economic equipment of basic technology but of constructive quality and professional design, that can be assembled easily by means of the labeling of its components and once assembled and connected it is plug and play, to be operated with ease in the brewing and CIP cleaning processes.

Quotation

Name Type Power Size (mm) Quantity
Brick Carton Filling Machine GD-ABF-3600 35kw 5500*2000*4380 1
U-straw applicator 4.5kw 1740*850*1145 1
Note

(1) The above quotation is on EXW Basis.

(2) Shipping port: Qingdao port, China.

(3) Payment: 30%TT before production, 70%TT before shipment.

(4) The period of validity is: 30 days.

(5) Quality guarantee date: one year.

(6) After sales service: We guarantee the machines' quality for one year about the key components. We also provide some spare parts for the quick-wear parts. If there's any quality problem in the machines, we are in charge of solving the problem.

Main technical parameters

1．3600 packets/hour Aseptic Brick Shape Carton Filling Machine

Main imported elements of the machine

No. Name Supplier Origin
1 PLC Mitsubishi Japan
2 Touching screen PWS6A00T-P Japan
3 Electricity switch MOELLER French
4 Control valve BURKERT Germany
5 sensor SICK Germany
6 dynamo ABB Sweden
7 Water pump CALPEDA Italy
8 Pneumatic control parts FESTO,CAMOZZI Germany
9 XMTG OMRON Japan

Main Technical Parameters:

Type BH3600
Produce Ability 3600Packets/Hour
Capacity 250ML&200ML
Form Aseptic Brick Shape Carton
Shelf Life 9-12months
Working Air Pressure ≥0.6MPa
Total Power 35Kw
Measurement 5500mmx2000mmx4380mm
Weight 3300Kg
Power Source 380V±10 %( 3φ) 50/60Hz
Total Power 30Kw
Air usage amount 500±100L per sec(0.6～0.7Mpa)
Steam usage amount 4.5kg per hr(130±5℃,0.17±0.03Mpa)
Purified water usage amount 15L per sec(0.3～0.45Mpa,below 20℃)
H2O2 usage amount 0.2per 8 hrS(density:35％)
Control system PLC
Content temperature 15℃～25℃
Content viscosity Below 30CP
Printing equipment Ink Jet Printer
Conveyer Belt Chain
Connection dimension 2200mm(W)x 3500mm(H)
Type of connection and caliber Thread entrance, 1/2
Connecting pressure 50～150±10Kpa
Container spec 106X41X63mm
Temperature of filling room 19.4～25℃
Operating Staff Needed 1

2．U-STRAW APPLICATOR

Main Technical Parameters:

Type BH-1
Produce ability 8000 pcs/h
Power supply 380V±10 %( 3φ) 50/60Hz
Power 4.5 kw
Air supply 0.4~0.6Mpa
Weight 300 kg
Measurement 1740(L) x850(W) x1145(H) mm
