3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub
3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub
3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub
3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub
3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub
3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub
Specifications
Brand Name :
CGET
Model Number :
CG-
Certification :
ISO CE UL
Place of Origin :
Shandong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300Set Per Years
Delivery Time :
30Wofk Days
Packaging Details :
Steel frame or wooden box
Processing :
Fermenting Equipment
Condition :
New
Processing Types :
Beer or Alcohol
Power(W) :
80Kw
Dimension(L*W*H) :
Customized
Voltage :
3phase/380(220,400,415,440)v/50 (60)Hz
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
Craft Beer Brewing Equipment
Description

3 Phase Small Commercial Brewing Equipment 100L - 1000L For Restaurant Pub

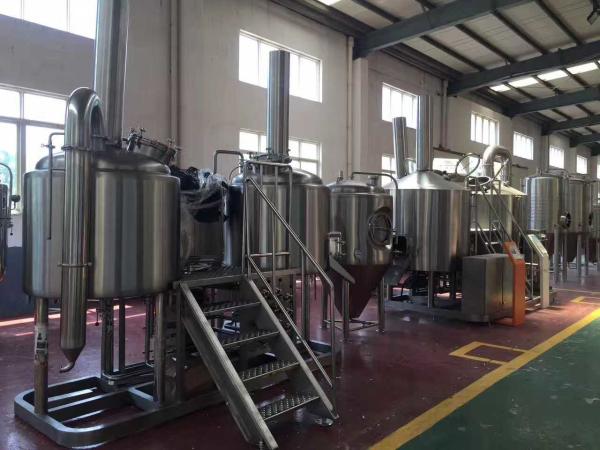

Our beer brewery equipment consists of milling system, mashing system, fermenting system, cooling system, control system and CIP system, of which the capacity can be customized from 200L to 5000L. We provide turnkey project, with the advantage of low energy consumption, small space occupation and easy for operation. The equipment can be designed according to different flavor, production and capacity. We offer professional and complete service before, during and after your purchasing.
The mashing system can be designed as two-vessel, three-vessel, four-vessel and five-vessel system, our qualified engineers will provide the most suitable choice for you.

Features & Advantages:

Mashing tun / Boiling tun: Use steam heat method, with designed jacket and agitation device to ensure the heating rate while avoiding coking, saving steam.
Lauter tun / Whirlpool tun: Easy assembly, with detachable combination of arable knife and sieve plate to achieve better stirring effect. Increase the diameter of the central cylinder to improve the effect of stirring and drain rate. The wort outlet is designed according to dynamic study which enables the collection of wort to be faster and more homogeneous. The design on the bottom of whirlpool tun is in line with the characteristic of the sink trub, which separate the clear wort and turb well.
We can provide customization according to different design: mash tun with lauter tun, boiling tun with whirlpool tun, or separate 4 vessels combination.
All tanks are manufactured by SUS304/316, with an inner polish of less than 0.4µm and outer polish of less than 0.8µm.

System list

Equipment

 100L 200L 300L 500L 1000L
Mashing system Mash tun 100L 200L 300L 500L 1000L
Lauter tun 100L 200L 300L 500L 1000L
Wort pump 1m3/h 3m3/h 3m3/h 3m3/h 3m3/h
Heat exchanger 2m3 3m3 4m3 6m3 6m3
Wort Oxygenator (optional) Optional Optional Optional Optional Optional
Fermenting system Fermentation tank 100L / 6-8pcs 200L / 6-8pcs 300L / 6-8pcs 500L / 6-8pcs 1000L / 6-8pcs
Yeast tank 2L 2L 3L 5L 10L
Bright beer tank (optional) 100L 200L 300L 500L 1000L
Cooling system Ice water tank 300L 500L 800L 1500L 2000-3000L
Cooling machine 3HP 4HP 5HP 5HP 5HP/Group
Ice water pump 1.7m3/h 1.7m3/h 1.7m3/h 1.7m3/h 1.7m3/h
CIP system Washing tank 50L / 2pcs 50L / 2pcs 50L / 2pcs 50L / 2pcs 100L / 2pcs
Pump 3m3/h 3m3/h 3m3/h 3m3/h 3m3/h
Control system PCL style control cabinet (200*700*400)
Comment: All components & parameters can be customized according your requests.
