Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Specifications
Brand Name :
CGET
Model Number :
CG-200 500 1000
Certification :
CE ISO9001
Place of Origin :
Shandong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300set per year
Delivery Time :
30work days
Packaging Details :
Iron crate, wooden box, suitable for long distance sea transport packaging or Wooden case
Processing :
Fermenting Equipment,
Condition :
New
Processing Types :
Beer
Voltage :
220V/380V
Product :
Micro Beer Brewery Brewhous
Material :
Stainless Steel 304/ 316
Application :
Brewpub or micro brewery
Warranty :
12 months
Control system :
Semi-automatic
Description
Craft Beer Home Microbrewery Equipment Stainless Steel 304 / 316 Material
Product Description

Micro Beer Brewery 200 300L 500L 1000L Brewhouse Beer Brewing Mash Tun System

Mash Tun Advantages
• New technology and Engineer from Jinan Shandong.
• High standard materials, stainless steel, nice appearance.
• The parts use famous brand.
• The Seamless welding, good sealing performance
• The beer is very delicious and nutritious for body.

Mash Tun Speification

• 20L-10000L capacity
• Factory manufacture with low price
• Hot sale model

Technical Specification

Item Name Spec Qty Material Technical Parameter

Main Machine

 01

Mash/

Lauter tank

 200L 1 SUS304

1. Material: SUS304

2. Total volume:300L, effective volume:200L;

3. Thickness of insulating layer:80mm;

4. Inner Body Thickness: 3mm.

5. With cleaning ring, top CIP spray 2 balls

6. TOP mechanical agitation: cycloidal reducer;

7. Milled plate false bottom :4mm

8. The manhole with sight glass

9. Thermo well tube with PT 100 temperature probe;

10. Ribbon polished for the welded place;

11. With Liquid meter

12. Condensate water pipe

13. Three legs with brace and adjustable bolt;

14. Necessary fittings and valves.

Decorative tube

LED Sight light

Digital display gauge
02

Kettle/

Whirlpool tank

 200L 1 SUS304

1. Material: SUS304

2. Total volume: 300L,effective volume:200L;

3. Electrical heating,power 10 kw

4. Condensate water pipe

5. Thickness of insulating layer: 80mm;Rock wool

6. Inner Body Thickness: 3mm.

7. Top two CIP Spray balls

8. Ribbon Polished on welds

9. The manhole with sight glass;

10. Thermowell tube with PT 100 temperature probe;

11. with Liquid meter

12. Three legs with brace and adjustable bolt;

13. With tangent line

14. Necessary fittings and valves.

Decorative tube

LED Sight light

Digital display gauge
03 Plat Heat Exchanger 3m2 1 set Stainless Steel

1. One Stages

2. outside measurement: 450×230×550

3. Water inlet: G3/4

4. Water outlet: 32SMS outside screw;

5. Wort inlet/outlet:φ32SMS outside screw

04 Wort pump 3m3/h 1 Stainless steel

1. With frequency conversion speed regulation;

2. Sanitary degree

3. electricity details: have to confirm with me

4. Flow rate: 3m³/h, lift:18m

5. Tri-clamp connection

Fittings 01 Brewhouse pipelines

ISO:

φ38/φ32

 1 set SS304
02 Wort thermometer (0~100℃) 1 Glass With stainless steel casing tube
03 Wort oxygenate device φ32 1 Stainless steel

1. For wort oxygenate

2. Put at outlet of the heat exchanger

3. With titanium stick

4. With wort thermometer
04 Titanium stick φ22×125 1 Metallic Titanium

1. For the oxygenate filtration, the filtration rating:0.45μm;

2. Let the oxygen into the wort more homogeneous and quickly
05 Measure tube φ32 1 Stainless steel Height=350mm
06 Brix meter 10°,20° Glass Using for measuring the brix in the brewing process
07 Operating Platform 1 Stainless steel It will design according to the size of the customer’s place and the brewhouse

Advantages:
1. Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach CE, PED,LVD export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.
7. New production technics.
8. Stable quality, high performance, strict quality control.
9. All the equipment are adopted 100%TIG welded joints, mirror Polishing.

Application

professional home microbrewery basic home brewing equipment has been widely used around the world, such as small breweries, hotels, bars, teaching laboratories and leisure field, according to the German Munich pure vinification, divided into "Larger" and "Ale" two series, brewing barley beer, wheat beer, dark beer, green beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.

More Equipment for your reference

Except the professional home microbrewery basic home brewing equipment , we still make:

professional home microbrewery:50L~200L mini brewery, for home brewery fan, mini brasserie
basic home brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger

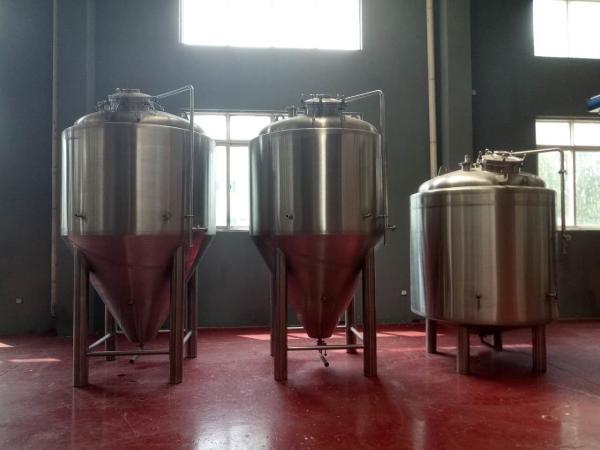

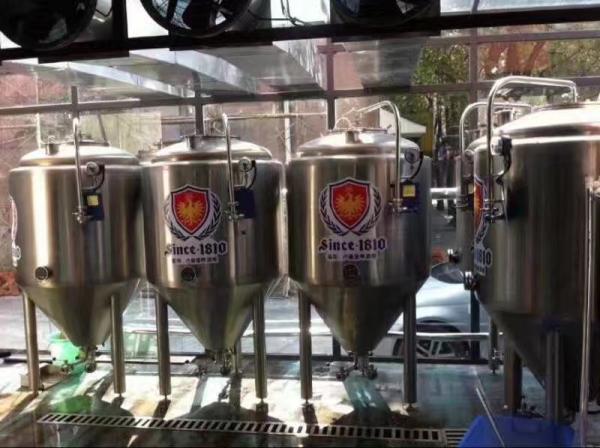

Fermenters/Unitanks:50L~10000L
Bright beer tanks/Serving tanks/Conditioning tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower
Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine
Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing,
double head keg filling&Washing
Application

Packaging & Delivery
Packaging Details
Micro Beer Brewery 300L 500L 1000L Brewhouse Beer Brewing Mash Tun System package:
By independent containers or by bulk carriers PVC film, or wooden case, or steel frame.
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with separated box.
3. After loaded into containers, all equipment will be tightly fixed to the containers.
Port
qingdao

1. Q: It's the first year(1st year) for you to produce brewing equipments?
A: No. We have worked in this business for more than Twenty-one years years,
2. Q:How many years is your warranty ?
A: The the warranty of main engine is 3 years, and auxiliary is 1 year.
3. Q: Can you do OEM or ODM?
A: Yes, we can do both.
4. Q: How to control temperature ?
A: PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
5. Q:Ask:how to install the machine ?
Answer:You can install the machine under the instruction of video, email or photo .if for the large project , we can arrange the worker help you to install it in your country .
6. Q: Is customized available ?
A: Yes.
