Small Commercial Brewing Equipment Mini Brewery Plant Electrical Or Steam

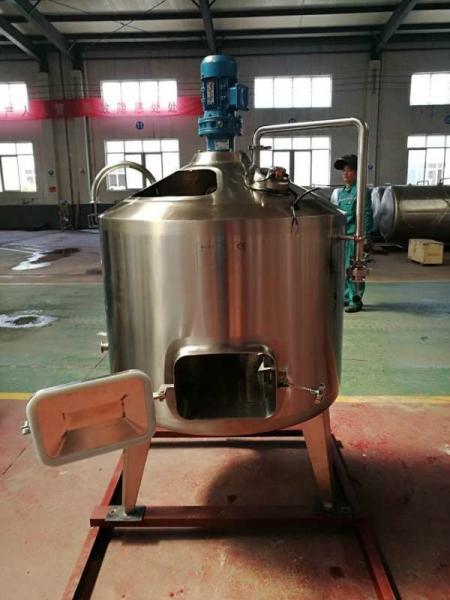

Mash/Lauter tank

1. Material: SUS304

2. Total volume:300L, effective volume:200L;Conical head

3. Thickness of insulating layer:80mm;

4. Inner Body Thickness: 3mm.

5. With cleaning ring, top CIP spray 2 balls

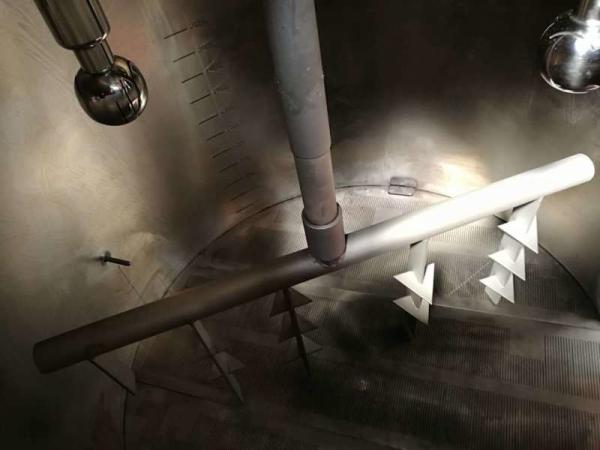

6. TOP mechanical agitation: cycloidal reducer;

7. Milled plate false bottom :4mm

8. The manhole with sight glass

9. Thermowell tube with PT 100 temperature probe;

10. Ribbon polished for the welded place;

11. With Liquid meter

12. Condensate water pipe

13. Three legs with brace and adjustable bolt;

14. Necessary fittings and valves.

Decorative tube

LED Sight light

Digital display gauge

Kettle/ Whirlpool tank

1. Material: SUS304

2. Effective volume:200L;Conical head

3. Electrical coil heating,power 10 kw

4. Condensate water pipe

5. Thickness of insulating layer: 80mm;Rock wool

6. Inner Body Thickness: 3mm.

7. Top two CIP Spray balls

8. Ribbon Polished on welds

9. The manhole with sight glass;

10. Thermowell tube with PT 100 temperature probe;

11. with Liquid meter

12. Three legs with brace and adjustable bolt;

13. With tangent line

14. Necessary fittings and valves.

Decorative tube

LED Sight light

Digital display gauge

1. Q: Are you a manufacture?

A: Yes, we’ve been in producing, exporting and installing brewery equipment for 21 years.

2. Q: Have you sold equipment to our country before? Which brewery is it?

A: We have 600+ world-wide customers, covering every continent. With your detailed request of brewery,

we’ll provide you contacts for calling and visiting our successful brewery projects.

3. Q: What kind of equipment should I choose?

A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.

4. Q: Is customize available?

A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.

5. Q: Will I get design or solutions for my brewery?

A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.

6. Q: How should I install the brewery?

A: You will get our full and accurate online guidance, including video, picture instruction, etc. If you need a paid installation service, our experienced technicians will handle the whole process as a turnkey project.

7. Q: Is your system manual or automatic?

A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.

8. Q: How should I pay?

A: After signing contract, 30% by T/T in advance and balance before shipment.

9. Q: How long does the production take?

A: Generally 30 working days since receipt of down-payment.

10. Q: What about quality warranty?

A: We provide 5 years warranty for main equipment, and 1 years for electric devices.
