3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
3000l micro brewery jacketed fermentatio tank for craft beer stainless steel 304 tank unitank with carbonation stone
Specifications
Brand Name :
CGET
Model Number :
3000L fermentation tank
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 sets per month
Delivery Time :
25 working days
Packaging Details :
steel frame
Description

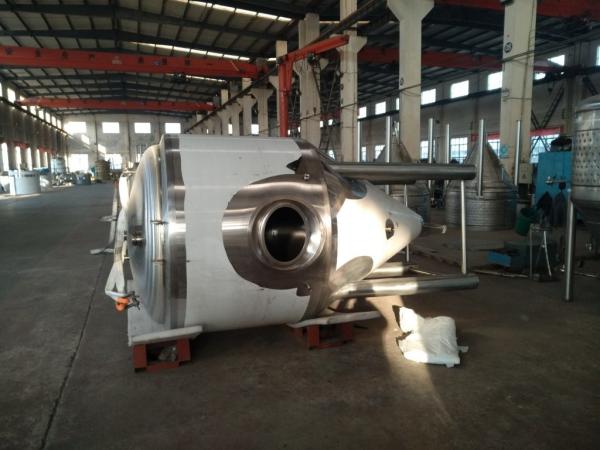

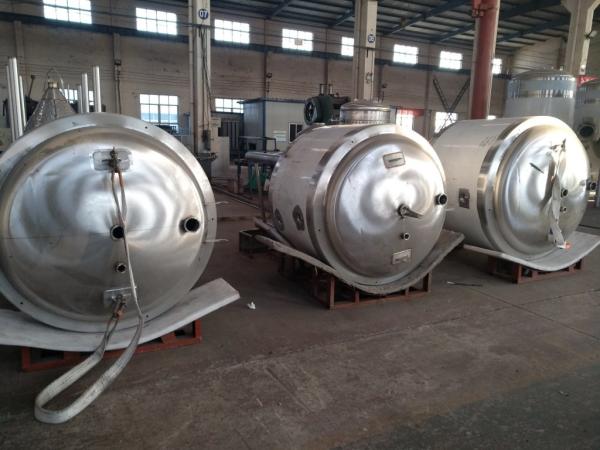

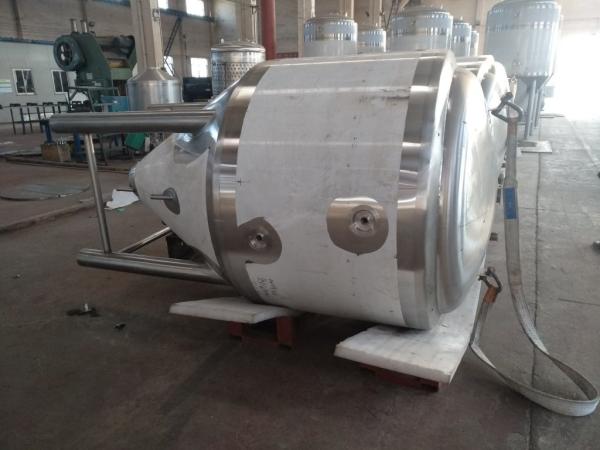

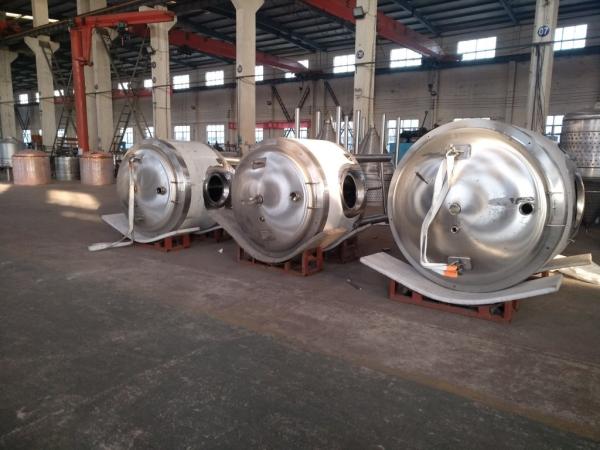

3000L Fermentation tank stainless steel tank, pressurized tank

1. Unitank, with carbonation device

2. Working volume:3000L, with 25% head space

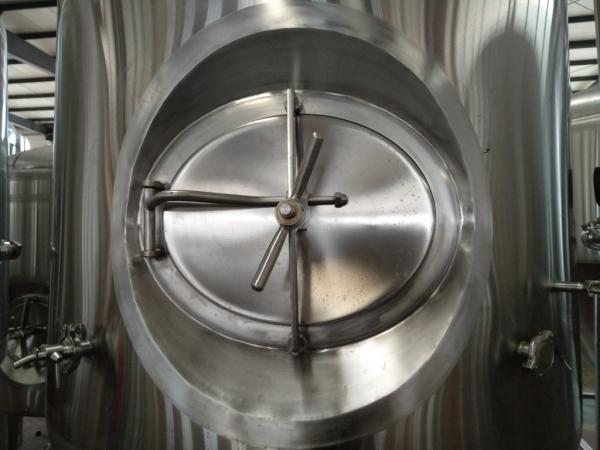

3. side manway

4.Material SUS304

5.Design pressure 30 psi , using pressure:15psi;

6.Racking Arm and discharge port with butterfly valve and fittings;

7.PLC control, dimple plate cooling jacket.

8.Insulation thickness: 80mm; Inner tank thickness: 3mm; cladding thickness:2mm

9.CIP arm and rotary spray ball

10.Release and breath valves

11. sample valve, mechanical pressure regulation valve

10.Pressure gauge & Thermometer & Sample valve.

11.Dimple plate cooling jacket with glycol inlet and outlet;

12.Four legs with brace and adjustable bolt;

13.Interior of tank is mechanical polished, inner body polishing ratio ≦0.4μm. Out plate surface protection welding line Belt Sander Polished.

14.With valves and accessories matched.
