Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
Specifications
Brand Name :
GONGDA
Model Number :
GD-CGFB-16/16/6
Certification :
CE, UL,ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
20 sets per month
Delivery Time :
40-50 working days
Packaging Details :
iron frame /plate
Voltage :
220V or 380V or Customized
material :
SUS304
Type :
Filling Machine
Application :
Beer or Beverage
Driven Type :
Electric 380V 50Hz 3 phase, According to Customer request
automatic degree :
fully automatic
Description

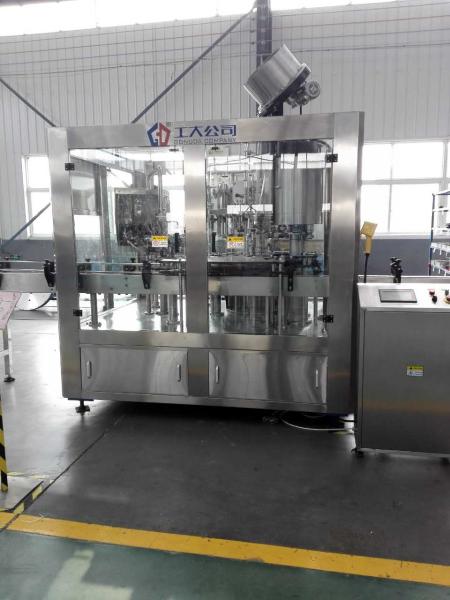

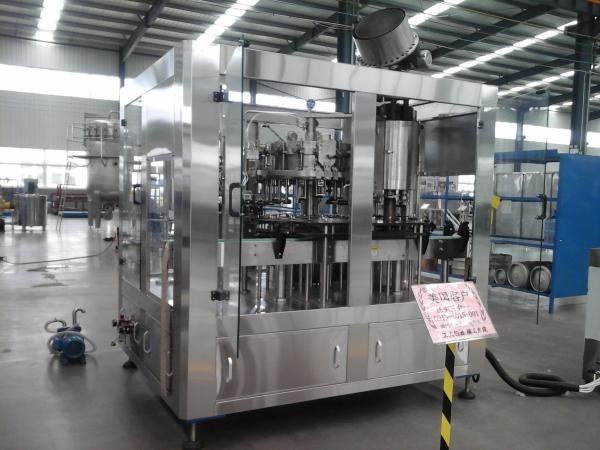

Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper
  1. Introduction

GD-CGFB16/16/6 type beer bottle rinser-filler-capper 3-1 unit machine is designed combined with the actual situation in our country after the introduction and absorption. It adopts the bottle filling and capping technique of Germany technology. It has been specially used to microbrewery.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process and realize that it only starts to filling when there is a bottle, otherwise it will stop filling and no broken bottles. The filling process is cleaner and pure due to it’s twice vacuumization of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 preparing pressure to realize a second vacuum ensure no air and bacteria in the bottle, guarantee the filling quality and warranty quality time. Filling cylinder braces use worm-gear box going up and down to satisfy bottles of different height. Float switches in the filling cylinder ensure a smooth liquid inlet. Therefore, this machine is the best ideal choice for beer or beverage factories.

Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper

2) Structure and function

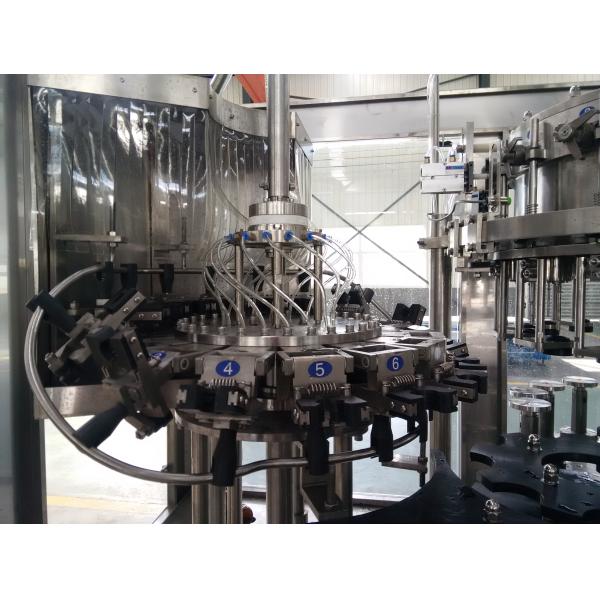

a. The rinsing part rinsing bottle inside with sterile water before going into the filling part (16 heads)Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper

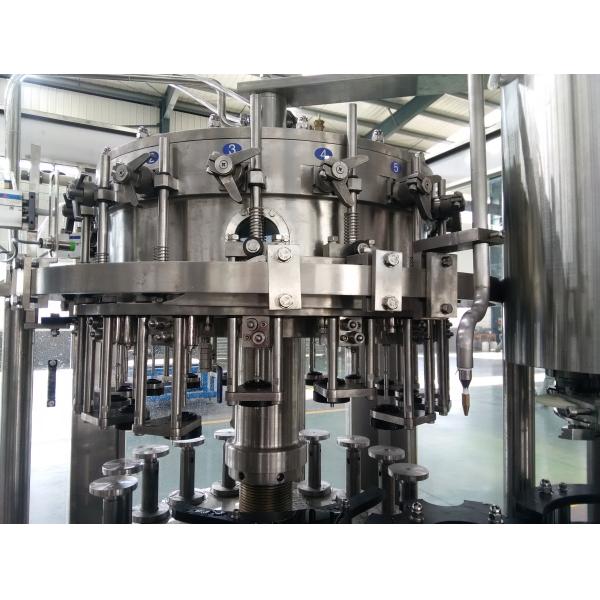

b. The filling part with twice vacuumizing and CO2 inject before filling . (16 heads)

Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper

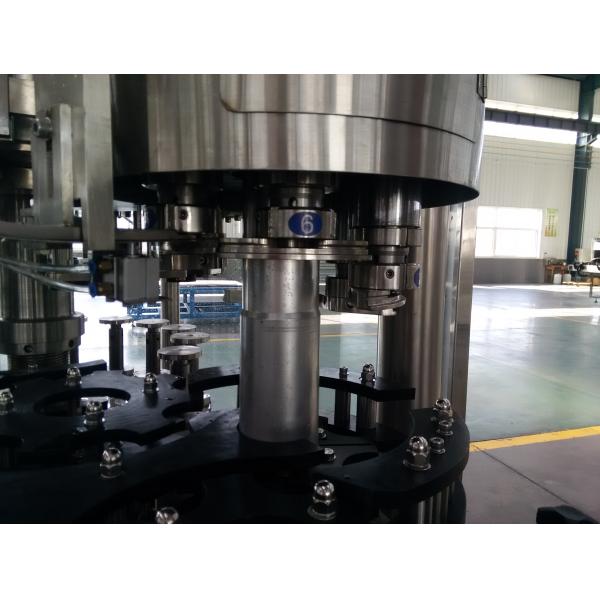

c. Before capping, we used high pressure water arouser to push air (O2) out of bottle .to keep beer in good quality . (6 heads)

Electric 3 In 1 Glass Bottle Filling Machine Beer Washer Filler Capper

Basic parameters date

Model GD-CGFB-16/16/6
Rinsing heads 16
Filling heads 16
Capping heads 6
Capacity 2000-2500BPH (Secondary vacuum)
Frequency converter Mitsubishi
PLC SIMENS ﹠ Mitsubishi
Pressure of Liquid tank ≤0.45Mpa
CO2 consumption 160g/100L
Sterile air consumption 0.2m3/min(0.4～0.6Mpa)
Water consumption Vacuum pump0.2m3/h
Suitable bottle size Height: 105～300mm
Bottle neck Φ50～Φ85 mm
Water consumption Vacuum pump 0.2m3/h
Installed capacity 7.62KW
Dimension 2200mm(L)*1820mm(W)×2750mm(H)
Net weight 2500kgs
