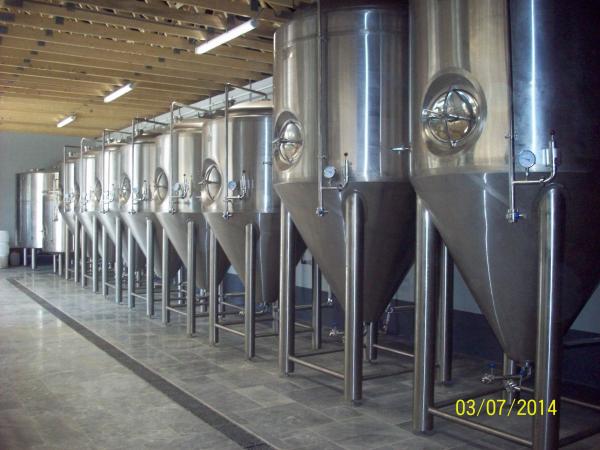

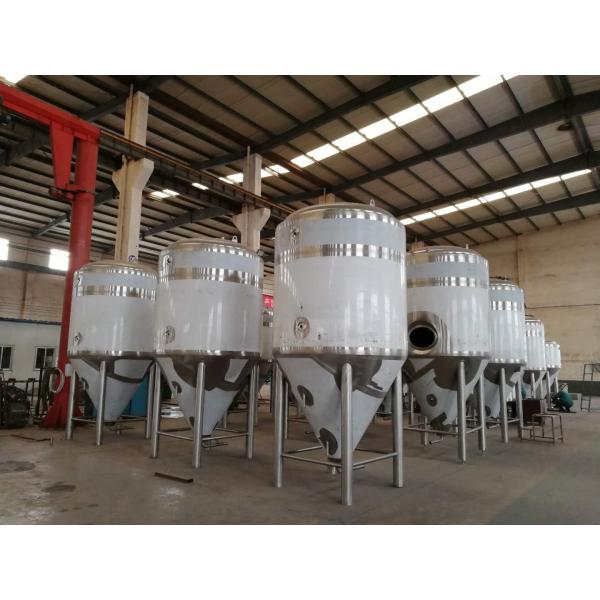

1. Unitank, with carbonation device

2. Working volume:10BBL, with 25% head space

3. side manway

4.Material SUS304

5.Design pressure 30 psi , using pressure:15psi;

6.Racking Arm and discharge port with butterfly valve and fittings;

7.PLC control, dimple plate cooling jacket.

8.Insulation thickness: 80mm; Inner tank thickness: 3mm; cladding thickness:2mm

9.CIP arm and rotary spray ball

10.Release and breath valves

11. sample valve, mechanical pressure regulation valve

10.Pressure gauge & Thermometer & Sample valve.

11.Dimple plate cooling jacket with glycol inlet and outlet;

12.Four legs with brace and adjustable bolt;

13.Interior of tank is mechanical polished, inner body polishing ratio ≦0.4μm. Out plate surface protection welding line Belt Sander Polished.

14.With valves and accessories matched.

Our product advantages

1. Brewhouse heating is side and cone steam heating jacket, bottom Cone heating(patent product NO:2009200271826)),It can greatly save energy.

2.Chiller: Patent product (Patent No.ZL2006 2 0083168.4) ,save 30% energy.

3.Valves:Fermenter with vacuum breathing valve and Mechanical pressure relief valve,double guarantee the safety of fermenter .

4.Miller Plate Welding: Good welding of dimple cooling jacket compared with other supplier, no leaking risk

5. Insulation thickness:Complete filling PU insulation in fermenter .

6. PLC control system. frequency conversion speed regulation pump and moter .

7Mechanical Polish, Polish accuracy is 0.6μm,our standard is higher than domestic supplier .

8.Cladding is adopted mechanical polished with uniform welding lines .

9.Manway: Flanging butt joint on manway pipefittings;beautiful and secure weld joints .

10.Stronger supporting to fix down the false bottom to meet high plato beer brewing standard.

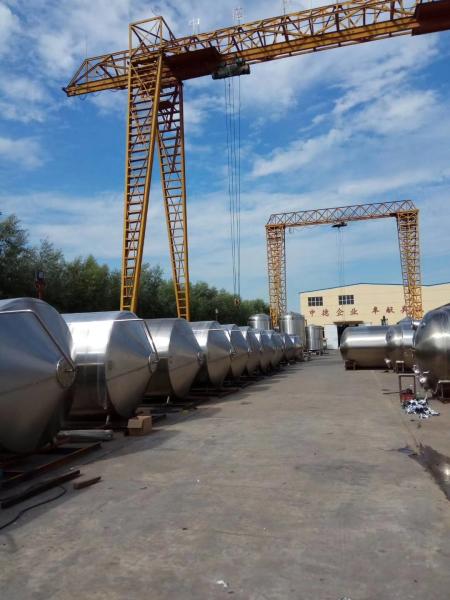

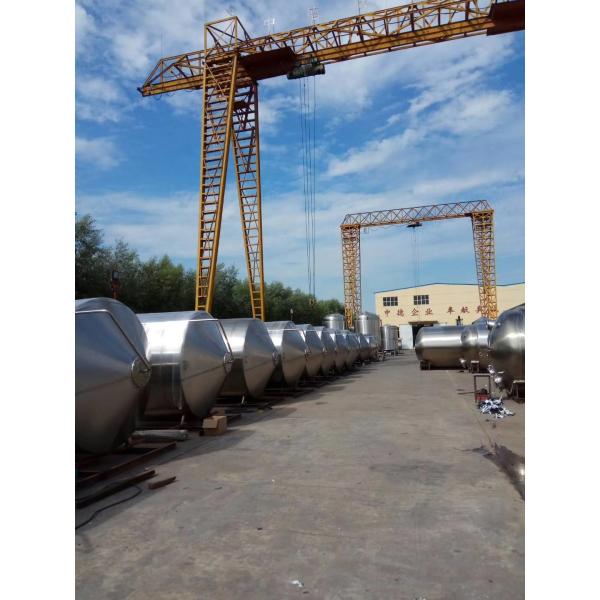

Zhongde Group (21 years since 1997)

Professional in brewing and packing (bottle and can)equipment in China.
