Mash system Details:

1. Inner-jacket is 3.0MM, external-jacket is 2.0MM.

2. Brew water inlet, SS304, Connection type: fast connection

3. CIP washing equipment, SS304, comprehensive cleaning

4. Mixer motor:motorpower: 1.5 KW The infinite gear motor

5. Spot lamp,used for tank lighting

6. With manway, material is SS304, circular manhole thickness 2.0mm, diameter 400mm, normal pressure manhole design.

7. With liquidmeter, observe the liquild level in the tank samples can be taken from the level base

8. Thermometer: the iron shell metal thermometer, temperature of the tank used for observation, accuracy of plus or minus 0.1 degrees.

9. Vinasse outlet, stainless steel 304, size is 430x330mm

10. Filter plate (Activity false bottom)

11. Wort collecting pipe

12. Insulation: PU heat preservation, thermal insulation layer thickness of 100 mm

13. Supporting leg: four stainless steel legs

14. Supporting studdle, Strengthen the legs supporting strength, Material quality: stainless steel 304

15. Foot bolts,those what can adjust the height of the equipment and easy to be installed

Mash system is the most important part in the whole beer brewery. The configuration is according to client's needs.

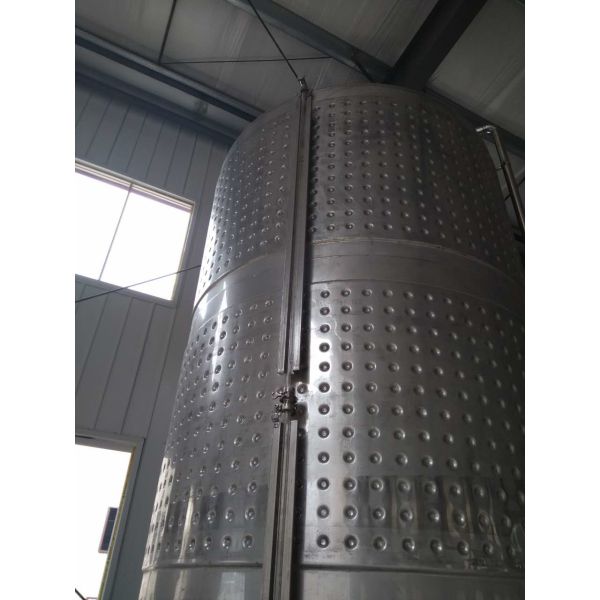

Fermentation Details:

Cooling way: Glycol water belt or miller plate;

Cooling media: glycol water or alcohol water.

Material: Inner (SUS304)thickness: 3.0mm;

External-Jacket(SUS304) thickness: 2.0mm;

Top seal head, thickness: 3.0mm.

Insulation: Polyurethane-thickness: 80mm.

The inner surface polished to Ra0.6um.

Equipped with: Cone 60° resist compression design, Side manhole: 430*330mm.

With sampling valve, vent valve, safety valve, pressure gauge, solenoid valve and etc.

Fermentation tank pressure: Design pressure 0.3MPa; Working pressure 0.15Mpa.

Cleaning System: CIP washing unit: Comprehensive cleaning.

Foot bolt: Adjust the height of the equipment, easy to install.

The Fermentation tanks number is according to the beer brewing daily output.

Glycol cooling details:

It used to cooling the fermenter and water to keep the beer fresh. This part play important roles in the whole set beer brewing equipment.

Our chiller use high quality Australia Coolsoon brand. The important advantage of the chiller we provide for the clients as follows:

1. safety refinements: Compressor overheating protection, Overcurrent protection, High and low pressure protection, Over-temperature protection,

Flow protection,Phase sequence/phase protection, Exhaust overheating protection.

2.Word famous chiller, quality is excellent. If there is something wrong in future,

it is easy to find spare part.

This high qulaity chiller will make sure the cooling system in the commercial brewery works very well, durable, high efficiency.
