380V 220V Stainless Steel Conical Tank Jacketed Conical Fermenter Glycol Cooling

big large brewery turnkey brewery complete brewery whole plant

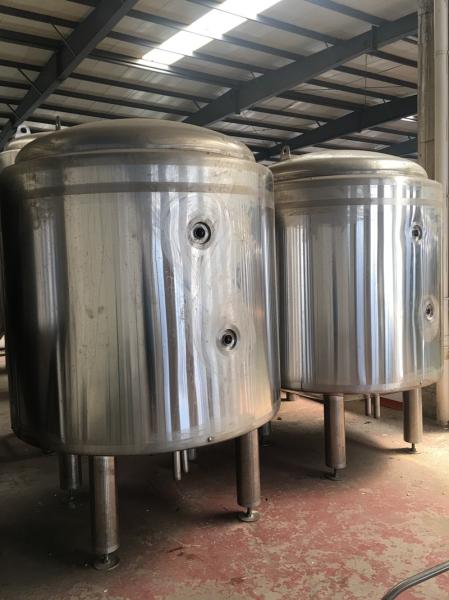

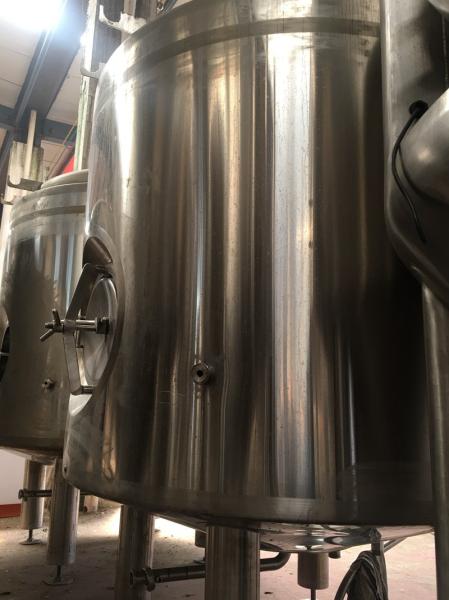

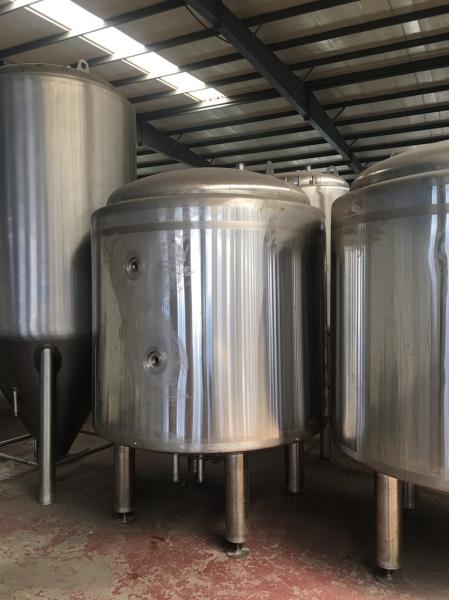

bright beer tank for maturation, jacketed, glycol cooling, stainless steel

Fermenter Unitank of 2,000 liters x 5 units

1. Minimum net work volume of 2000 liters + 25% minimum free space at the head of the tank. - 60º conical cylinder fermentation tank

2. Preferred working pressure: 1.5 bar minimum.

3. Pressure test with water and gas at 3 bar minimum..

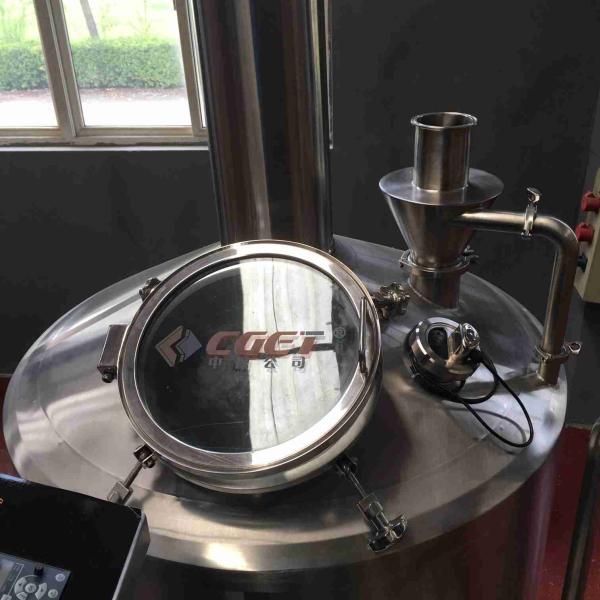

4. Manhole in top / without shadows to the CIP cleaning. - Interior finish SUS304 2B with internal mechanical polishing of minimum welds of Ra. -

5. 50 mm high density polyurethane insulation minimum.

6. Maximum dimensions: 1550 mm wide

7. Independent Cooling jackets around the cylinder and bottom cone with minimun cooling area: 3.5 m2 - Minimum working pressure of the cooling jackets 1.5 bar, minimum pressure test 3 bar. - PRVP valve in Dish head, tared to the maximum working pressure of the tank

8. Rotating arm for CIP cleaning of the interior, equipped with 360º ball and Butterfly Sanitary Valve. - Rotary arm for pressure control equipped with "tee" for Membrane Pressure Gauge

9. SS304 (Stainless Steel Diaphragm Gauge), adjustable (spunding) pressure relief valve and final butterfly valve. -

10. Tri clamp Dry Hop Port 4 "in Top with End Cap - Tri Clamp + Sanitary sample valve. - Tri Clamp + Stainless steel sphere thermometer SUS304. - Tri Clamp + Thermowell and temperature probe PTC 100 - Tri Clamp port with carbonation stone + ¼ "Check valve + small ball valve

11. Rotating racking arm and port on cone with butterfly valve with sliding seal without leakage. -

12. Tri clamp total discharge arm with butterfly valve - Liquid livel indicator with flexible tube and sanitary ball valve between the CIP arm and the total discharge arm of the cone.
