Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
Specifications
Brand Name :
CGET
Model Number :
CGET-FVT-3000
Certification :
CE ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
20 days

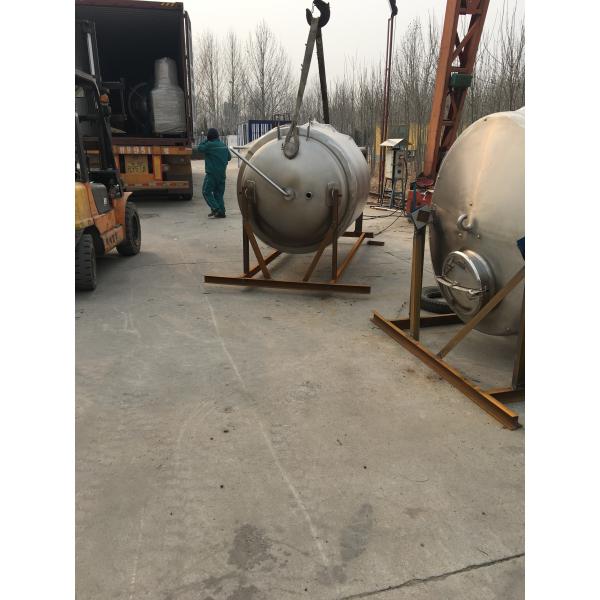

Packaging Details :
steel frame for sea container
material :
stainless steel
color :
silver
insulation :
Polyurethane Foam
thickness :
Inner 3mm/external 2mm
surface :
polished
type :
vertical
condition :
new
cooling :
glycol
voltage :
380V or 220v customized
warranty :
12 months
Description

Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L

1. Stainless steel 304；Dished head;

2. Dimension :φ1800×3748mm

(According to the plant area );

3. Effective capacity 3000L;

4. Heat transfer area 5.9 m2;

5. Design pressure:3Bar; Working pressure:2Bar;

6.Double-stage cooling jacket, stainless steel solenoid valve, mechanical pressure regulating valve;

7. Dimple cooling jacket: 1.5mm;

8. Insulation thickness: 80mm; Inner tank thickness: 2.5mm,outer thickness:2mm

9. Conical base 60°

10. CIP pipe and rotary spray ball

11. Beer racking arm and bottom drain port, associated valves and fittings;

12. Top hops add port;

13.Side manhole;

14. respiration valve, sample valve; Sampling valve and sampling port(Clamp connect)

15. PT100 temperature probe.

16. Four stainless steel legs, with screw assembly to adjust leg height,

17.With hanging ladder

1. Material SUS304

2. Working volume:30HL, with 20% head space；

3. Two stages dimple plate cooling jacket.

4. Insulation thickness: 100mm; Inner tank thickness: 3mm;

5. Inner body polishing ratio ≦0.4μm

6. Ribbon polished on welds

7. Carbonation Stone; liquid level meter;

8. Side manhole;

9. Design pressure: 60psi, using pressure: 45psi;

10. Breathe & pressure relief valve;

11. Pressure gauge & Thermometer & Sample valve.

12. Four legs with brace and adjustable bolt;

13. With necessary fittings and valves

Fermentation control cabinet:

1. Display degree together;

2. Siemens Brand Touch Screen;

3. PLC control system S7-1200 system;

4. Control the temperature & pressure of the fermetner and bright beer tanks;

5. Control the temperature of the cooling system;

Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
