Specifications
Brand Name :
GD
Model Number :
GD-TQX-02
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
20 sets per month
Delivery Time :
40-50 working days
Packaging Details :
iron frame /plate
Type :
washing Machine
Application :
Beverage, Chemical, Beer,
Packaging Type :
Barrel ,keg
Automatic Grade :
Automatic
Driven Type :
Pneumatic+electric
Voltage: :
AC220V or AC380V
Power :
3.5Kw.
Filling volume: :
0-1000ml,5000ml
Description

High Power Two Heads Packing Production Line Keg Washer Filler 0Ml - 1000Ml


1. Introduction:

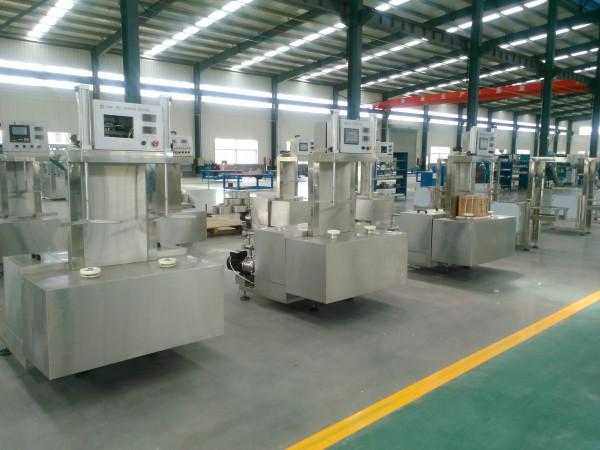

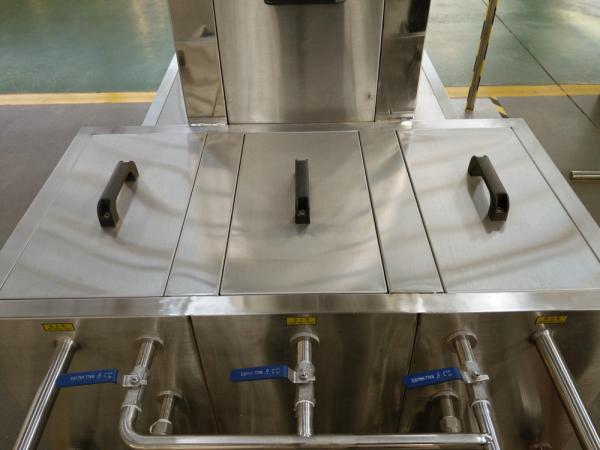

This machine is designed for the washing and sterilizing work of stainless steel keg. And this machine can do the works washing, sterilizing and CO2 pressure preparing automatically.

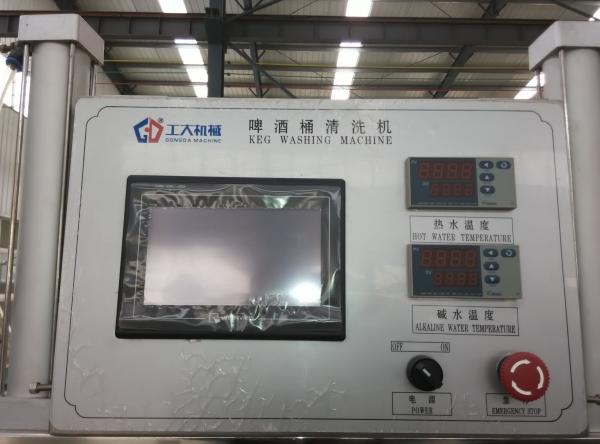

The machine control unit adopts Germany's Siemens Logo! Control the whole process. All the control parameters (time value) can be adjusted with no-stop. This equipment is easy to operate, by selecting the switch Settings and change the cleaning head can be realized for different draft beers barrel and preservation barrels. The machine is including water-saving and power-saving in one, it can save water 50%.

High Power Two Heads Packing Production Line Keg Washer Filler 0Ml - 1000Ml
2) Working procedure
Stainless steel keg washing procedure :
Compress→ air blast residual →clean with clean water→ air blast →clean with hot alkaline water→ air blast(recycle to alkaline water tank)→clean with hot water→ air blast(recycle to clean water tank)→steam sterilize→ steam pressure maintaining→ clean with sterile water→ air blast to hot water tank →CO2 preparation→ cylinder return


3) Features
Its features are as follows:
1) The high powered water pumps clean completely.
2) Establish working routine willfully, easy to use.
3) Equipped with CO2 prepare presses function.
4) The saving water installment, 50% water off in the clean process.
5) Unique water temperature control device, the lye clean.
High Power Two Heads Packing Production Line Keg Washer Filler 0Ml - 1000Ml

4) Specification and size and main technical parameter:

Capacity40-70kegs
Worktable size (mm)525x1140
Worktable height(mm)660
Machine outside measurement(mm)1140x1150x1750
Piston maximum stroke(mm)300
Air consumption8 - 22.5m3/hour
Water consumption1-3 m3/hour
Washing styleInverted washing
Kegs’ size(mm)Diameter:ф250-500 Height:400-660 mm
Net weight(Kg)245



5) Technology specification

Pressure of air0.6-0.8 Mpa
Pressure of the cylinder0.4-0.5 Mpa
Pressure of CO20.2-0.3 Mpa
Pressure of steam0.15-0.2Mpa
Hot alkaline water temperature40-80℃
Hot water temperature40-80℃
Hydrogen peroxide concentration0.5％
Concentration of caustic soda1.5％
Power voltageCustom -made
