Steel Firm Fixed / Sliding Hanger Conductor Rail System For HFP56 Accessories With Light Weight
Steel Firm Fixed / Sliding Hanger Conductor Rail System For HFP56 Accessories With Light Weight
Steel Firm Fixed / Sliding Hanger Conductor Rail System For HFP56 Accessories With Light Weight
Steel Firm Fixed / Sliding Hanger Conductor Rail System For HFP56 Accessories With Light Weight
Specifications
Brand Name :
NANTE
Model Number :
HFP56
Certification :
CE
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
L/C, T/T
Supply Ability :
1000000pcs/year
Delivery Time :
1-2 weeks
Packaging Details :
CARTON
Max.current :
240A
Flexible strength :
75N/mm2±10%
Max.voltage :
690V
Poles :
3-4 poles
Standard Housing :
-20°C up to +70°C
Tensile strength :
75N/mm2±10%
Description

Type Weight(kg) Material

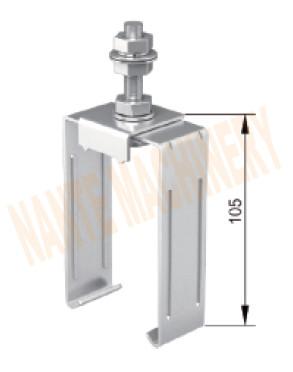

56HG-3(Fixed Hanger) 0.21 Steel

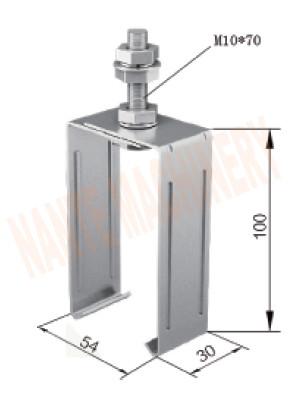

56HG-4(Sliding Hanger) 0.17 Steel

Specifications

Factory price hanger of conductor rails.

Standard brackets for powerail attachment to crane girders are available.

Powerail with sliding and fixpoint hangers.

Standard distance between suspension points for indoor and outdoor installations: 1200mm.

Application

The ranges of applications of HFP Power Rail Enclosed Conductor System

1. Overhead and elongated tracks for cranes.

2. Electric hoists, electric tools, stacking systems.

3. Electric tools

4. Other applications for supplying power to moving power load.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Current collectors

The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.

Spring loaded carbon brushes maintain uniform contact.

Connecting cables and hinged or flexible towing arms included.

Double Current collectors for transfer applications and higher amperage.

Steel Firm Fixed / Sliding Hanger Conductor Rail System For HFP56 Accessories With Light Weight

Steel Firm Fixed / Sliding Hanger Conductor Rail System For HFP56 Accessories With Light Weight

HFP Series Multiple-Poles Conductor Rail System
Max. voltage 600v Bending strength 75N/mm²±10%
Dielectric strength 30-40kv/mm Tensile strength 40N/mm²±10%
Special resistance 5×1015 Ohm×cm Leakage resistance CTI600-2,7
Surface resistance 1013 Ohm×cm Design and Manufacturing Standard GB7251.2-2006
Distance between each suspension bracket (m) 1.2 Rail length per piece (m) 4
Flame retardant Class B1-no flaming particles, self-extinguishing
Permissible Ambient temperature Standard insulation -30°C- +70°C|High temperature insulation -20°C- +115°C|Low temperature insulation -40°C- +80°C
