Specifications
Brand Name :
NANTE
Model Number :
SH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Supply Ability :
100000 sets per year
Delivery Time :
1-2weeks
Packaging Details :
CARTON
Max Capacity :
20t
Duty :
M4
Sling Type :
Wire Rope
Traveling Speed :
20m/min
Lifting Motor :
1.5-13
Description

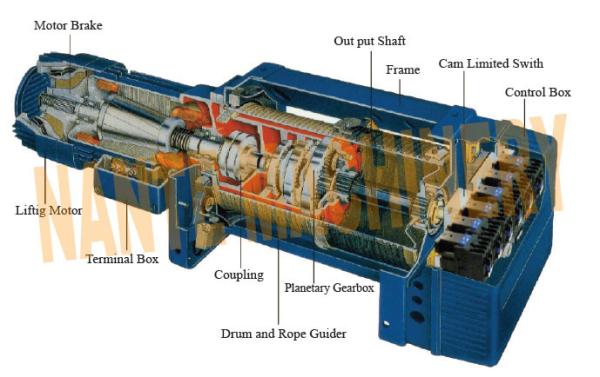

SH SERIES ELECTRIC ROPE HOIST

SH series steel rope electric hoist have newest designing with quadrate outline, modularize construction, good unitized capability.

1. The fundamental mode change combine is very convenient and multiform.

2 The special long transmission shaft.

3. The reducer use planetary speed-down drive which have high effective, low yawp long using life.

4. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable.

5. With the advanced guide rope technology from overseas, unit is very reliable and safety.

6. High precision and super mechanical apin limiter.

7. High quality control electric component with low malfunction.

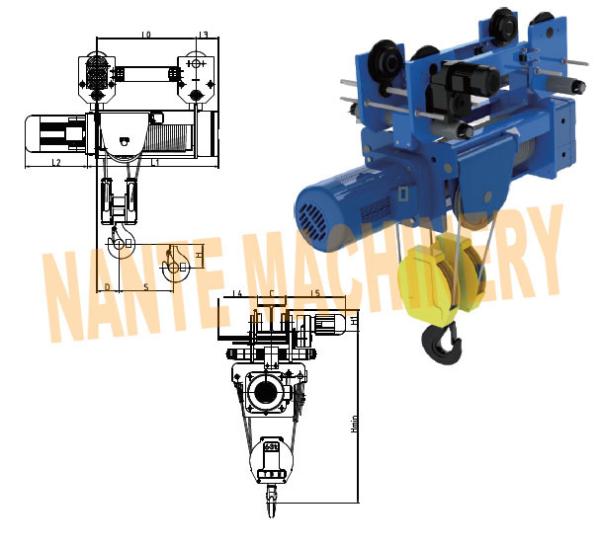

Underhang Hoist

SH(2/1 Rope)

Type Capacity
(t)		 Duty Rope
reeving		 Lifting
speed
(m/min)		 Lifting
motor
(kw)		 Traveling
speed
(m/min)		 Traveling
motor
(kw)		 L2
(mm)		 Suitable for Rail C
(mm)		 L3(mm) L5
(mm)		 L4
(mm)		 H1
(mm)		 Hmin
(mm)		 S
(mm)		 Lifting height(H) Size
Single speed Double Speed I H 9m 12m 18m 24m 30m
SH3B 1 M4 2/1 8.4/2.1 1.5/0.4 20/6.7 0.37/0.12 300 500 110-180 180-420 138 375 282 121 979 0.0161H 479 576 770 964 1158 L0
681 778 972 1166 1360 L1
137 137 137 137 137 D
SH4B 2 M4 2/1 7.2/24 3/1 20/6.7 0.37/0.12 350 535 110-180 180-420 147 375 282 121 1153 0.0174H 562 716 924 1132 1340 L0
771 925 1133 1341 1549 L1
182 232 232 232 232 D
SH5B 3.2 M4 2/1 7/1.6 4.5/1.1 20/6.7 0.37/0.12 380 600 110-180 180-420 161 375 282 121 1249 0.0182H 598 757 975 1193 1411 L0
827 986 1204 1422 1640 L1
198 248 248 248 248 D
SH6B 5 M4 2/1 7.6/1.8 7.5/2.0 20/6.7 0.55/0.18 460 645 130-180 180-420 194 429 278 151 1361 0.0191H 638 832 1061 1290 1519 L0
907 1101 1330 1559 1788 L1
210 290 290 290 290 D
SH7B 8 M4 2/1 8/2 13/3.4 20/6.7 0.75/0.25 520 620 140-180 180-450 211 434 308 179 1516 0.0194H 689 885 1118 1351 1584 L0
1005 1201 1434 1667 1900 L1
243 323 323 323 323 D
SH8B 10 M4 2/1 6.4/1.6 13/3.4 20/6.7 0.75/0.25 520 620 140-180 180-450 211 434 308 179 1516 0.0194H 689 885 1118 1351 1584 L0
1005 1201 1434 1667 1900 L1
243 323 323 323 323 D

Note: the lifting height of 9m is not available for double lifting speeds.

SH(4/1 Rope)

Type Capacity
(t)		 Duty Rope
reeving		 Lifting
speed
(m/min)		 Lifting
motor
(kw)		 Traveling
speed
(m/min)		 Traveling
motor
(kw)		 L2
(mm)		 Suitable for Rail C
(mm)		 L3(mm) L5
(mm)		 L4
(mm)		 H1
(mm)		 Hmin
(mm)		 S
(mm)		 Lifting height(H) Size
Single speed Double Speed I H 6m 9m 12m 15m
SH4B 3.2 M4 4/1 3.6/1.2 3/1 20/6.7 0.37/0.12 350 535 110-180 180-420 147 375 282 121 1105 0.0174H 716 924 1132 1340 L0
925 1133 1341 1549 L1
SH5B 6.3 M4 4/1 3.5/0.8 4.5/1.1 20/6.7 0.55/0.18 380 600 130-180 180-420 161 429 278 151 1225 0.0182H 757 975 1193 1411 L0
986 1204 1422 1640 L1
SH6B 10 M4 4/1 3.8/0.9 7.5/2.0 20/6.7 0.75/0.25 460 645 140-180 180-420 194 434 308 179 1314 0.0191H 832 1061 1290 1519 L0
1101 1330 1559 1788 L1
SH7B 16 M4 4/1 4/1 13/3.4 20/6.7 0.75/0.25 520 620 150-180 180-450 250 434 186 179 1412 0.0194H 885 1118 1351 1584 L0
1201 1434 1667 1900 L1
SH8B 20 M4 4/1 3.2/0.8 13/3.4 20/6.7 0.75/0.25 520 620 150-180 180-450 250 434 186 179 1412 0.0194H 885 1118 1351 1584 L0
1201 1434 1667 1900 L1

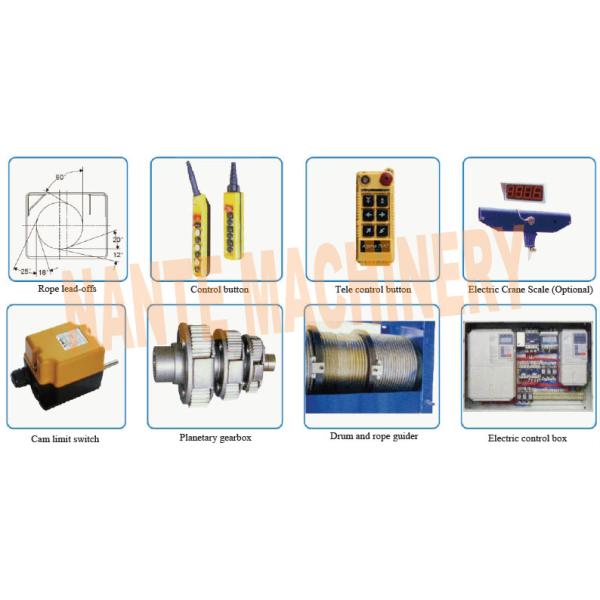

Accessories
