Factory Workshop Festoon System For Overhead Crane Cable Roller
Factory Workshop Festoon System For Overhead Crane Cable Roller
Factory Workshop Festoon System For Overhead Crane Cable Roller
Factory Workshop Festoon System For Overhead Crane Cable Roller
Specifications
Brand Name :
Nante
Model Number :
C32
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1meter
Price :
Nogetiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000meter/year
Delivery Time :
within one week receiving payment
Packaging Details :
Plywood case
Material :
Galvanized Steel/Stainless Steel
Bearing :
Ball bearing
Temperature :
-40~+125℃
Cable Load :
＜120Kg
Travel Speed :
＜120m/min
Weight :
1.19Kg
Description

Technical Data:


Factory Workshop Festoon System For Overhead Crane Cable RollerFactory Workshop Festoon System For Overhead Crane Cable Roller

Type C32*30*1.5 C40*40*2.0 C63*63*4.0 C30*28*1.5
Material Galvanized steel / Except C63
Weight kg/m 1.19 2.00 5.98 1.03
Technical data
A 32 40 63 30
B 30 40 63 28
C 12 13 18 10
6 1.5 2.0 4.0 1.5
Spacing Max. Cable Load
1.5m 89kg 188kg 503kg 70kg
2.0m 51kg 103kg 425kg 36 kg
2.5m 39kg 73kg 302kg 22kg
3.0m 23kg 49kg 195kg -
4.0m - 28kg 85kg -

Type Towing Trolley End Trolley Middle Trolley Round Cable Trolley
Wheels

Ball bearings, hardened, galvanized

Temperature resistance Lub. grease of wheels: -30°C to +125°C

Max. travelling speed: 160m/min.

Ball bearings, hardened, galvanized

Temperature resistance Lub. grease of wheels: -30°C to +125°C

Travelling speed: ca 120m/min.
Material

Carrier body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprene
Dowel: brass
Hardware: galvanized

Temperature: resistance: -30°C to +100°C(ABS Saddle 80°C)

 Carrier body: steel, galvanized
Clamp: steel, galvanized
Sling: nylon
Dowel: brass
Hardware: galvanized
Max. cable load Max. 25kg per carrier Max. 25kg per carrier Max. 30kg per carrier Max.22kg per carrier
Dim. Of cable (mm) Max. 75w×32δ Max. 75w×32δ Max.75w×32δ Max. D=50mm/D=80mm/D=160mm
Weight (kg) 0.61 0.39 0.415 0.29

C Track Festoon System for Crane, Galvanized Steel Conductor Rails With Brass Dowel , C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

Detailed Product Description

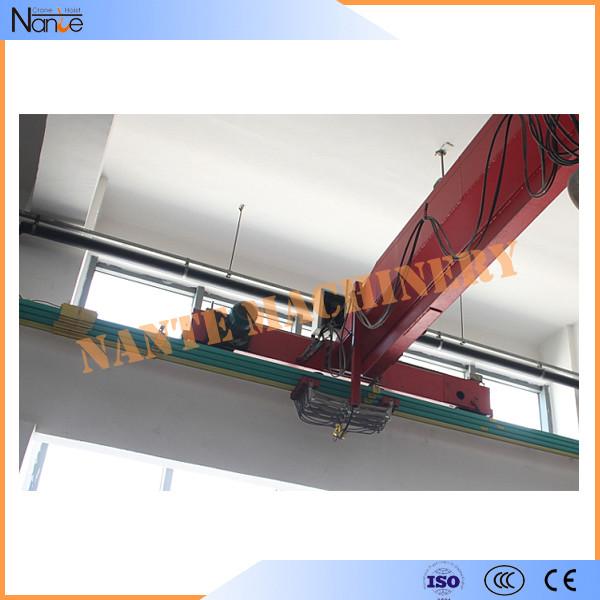

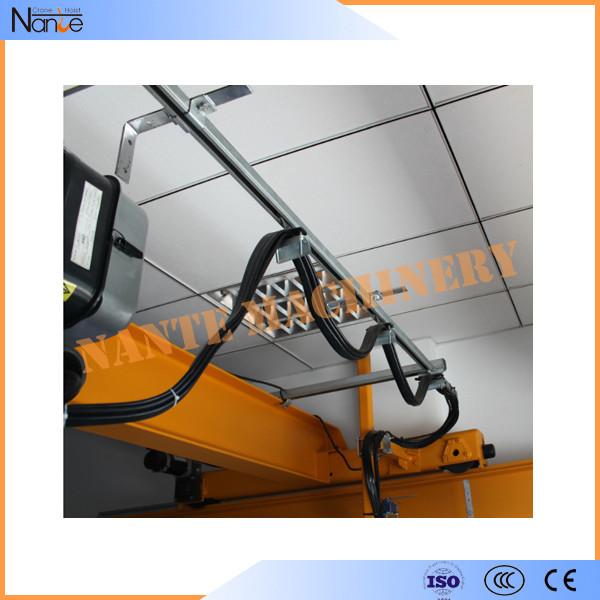

Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

Application

C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation. All accessory well included for customer.
