Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1
Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1
Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1
Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1
Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1
Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1
Specifications
Brand Name :
Nante
Model Number :
F24-12D
Certification :
ISO, CE, CCC
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
300000 Piece/Pieces per Year
Delivery Time :
According to customer's requirements
Packaging Details :
Seaworthy packing
Model Number: :
F24-12D
Speed: :
Single
Control Distance: :
Within 100m
Description

Detailed Product Description

General Specification

  • Frequency 310.3-331.2 MHz
  • Frequency control quartz crystal
  • Output terminal full sealed relay 20A/250V passive switch signal .
  • Structure glass fiber
  • Receiving high frequency sensitivity >-110dBm
  • Transmitting high frequency output power<4dBm
  • Reaction rate 0.065s.
  • Protection IP65
  • Operation distance 100 meters
  • Convenient Windows port to operate and copy function.
  • UP/Down East/West South/North keys can be set to mutual rejection.
  • The key Start function can set to start skip or common by computer.

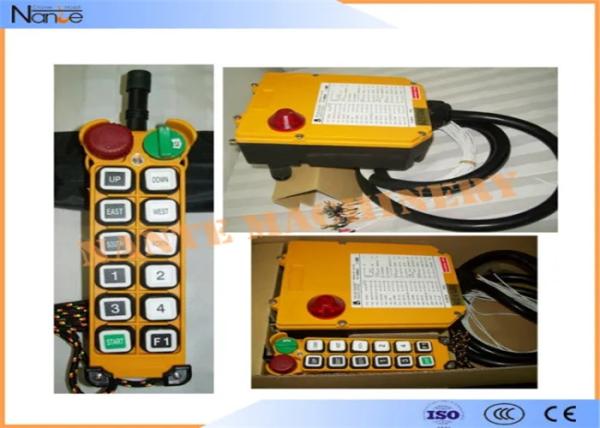

Remote Control for Crane / Industrial Wireless Single Speed Controller F24-12S1

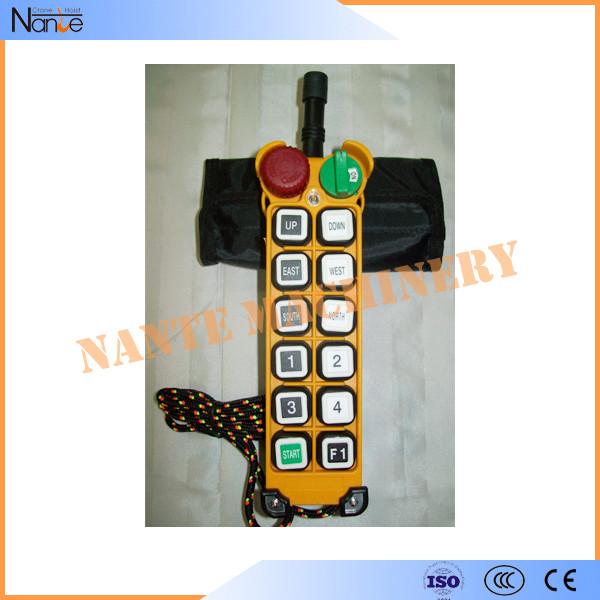

Transmitter
• Dimension: 218x60x60mm
• Weight: Approx.350~365g (without batteries)

Function,

11 programmable, double step pushbuttons, EMS plus start and stop

Receiver
• Dimension: 290x230x70mm
• Weight: 1900 g (without wire cable)
• Receiver Power Supply: 24/48/110/220/380 VAC

Detailed Product Description

Radio Remote Controls have become a key element within a modern working context where safety, productivity,

freedom of movement has a continuously increasing importance. Industrial radio controllers are consequently for

time saving and risk reduction working instruments.

Thanks to the radio controller, the operator stands in the place with the best visibility and lowest operation risk.

The wireless technology allows controlling the machine in full autonomy without requiring other operators to

support the job with indications.

Remote Control For Crane Single Speed Controller Within 100m F24 - 12S1

Application

The ranges of applications of our industrial radio remote control system

1. overhead bridge cranes,

2. gantry crane

3. beam launcher

4. monorail hoists,

5. motorized jib cranes o

6. Other pieces of industrial equipment.

Transmitter Power supply: 2 AA Alkaline batteries
Over 4.3 billions unique ID code available Hamming
Hamming code $ enhanced safety watch-dog circuit
code & enhanced safety watch-dog circuit
Internal antenna for both transmitter & receiver (Option: Receiver external passive antenna available)
Operating temperature:
-35=Cto +85CC
Enclosure protection class IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
Receiver power supply: 24/48/110/220/380 VAC & 12/24VDC Easy
customization with new F-23 FLEX* design VHFCN
1-80MHZ
UHFCN 112-152MHZ
