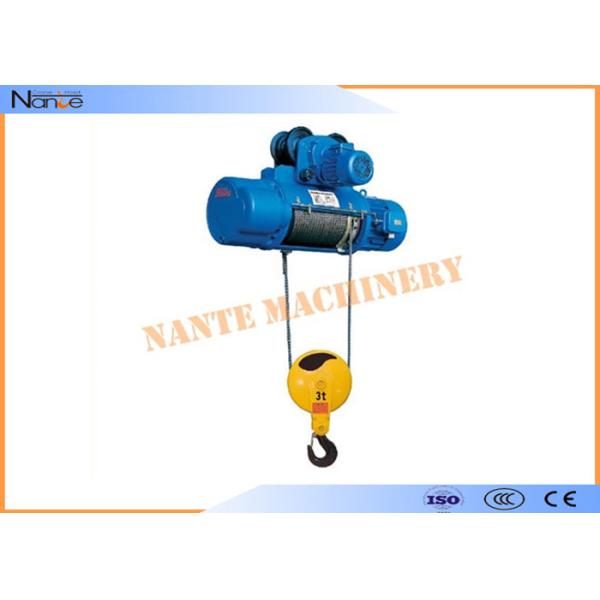

Monorail Hoist Electric Wire Rope Hoist with Accurate Stroke Limit and Load Protection is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What’s more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.

Quick Details

Condition: New

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Nante

Model Number: SH

Usage: Construction Hoist

Power Source: Electric, 3P, 380V, 50HZ, other type also available

Sling Type: Wire Rope

Maximum Lifting Weight: 20ton

Maximum Lifting Height: Max.30m

Lift Speed: 7.5/2.0m/min

Certification: ISO, CE, CCC

Warranty: 12 month

Housing: Tailor-made strengthened profile

Track Type: H beam, box girder, I beam

Control Type: Pendent control, remote control

Packaging Details:

Wire Rope Hoist:Plywood package

Delivery Detail:Within 50 days

1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.

2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.

3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.

4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.

5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control

6.Gear

By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.

7.Chain

Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.

8.Hook

Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.

Design Feature

• SH series wire rope hoist, adopts the latest design of quadrate style
• Modular design, good unitized capacity, enables diversified transformation of fundamental mode
• Unique drive layout type, completely abandon the traditional form of the long drive shaft, realize extremely smooth transmission
• Planetary reduction drive, high efficiency, low noise, longer life
• Original cylindrical rotor - cone brake wheel motor, low noise, reliable braking
• introducing foreign advanced rope guide, reliable performance
• Advanced mechanical rotary limit switch, high accuracy
• Electrical components with high quality control
• Low failure rate
• Full-scale capacity range from 400kg-50000kg
• Fully comply with the newly international standards.
• Electrical components with high quality control

General Drawing

Technical Parameter for STANDARD HEADROOM TROLLEY HOIST SH

Our Service

WE can provide to customer an integrated solution which includes project consultant, design, manufacturing, transportation, installation, maintenance and technical support. Our one-stop services can not only save our customers time but also minimize their cost.

In compliance with our service concept “Customer First”, we provide the following support services to ensure smooth running of customer’s lifting and handling equipments: Presale Technical Support, After-sale Maintenance, Spare Parts Support, and Customized Solutions.
