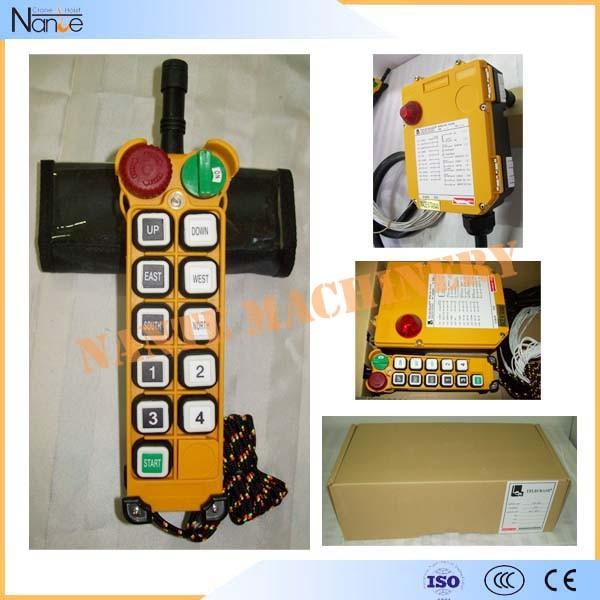

Detailed Product Description Durable Nylon-Fiber Housing Industrial Radio Remote Controller, TELECRANE F24-10S

• Low power consumption with 2 AA batteries (last up to 2 months in normal operation)
• Operating range up to 100 meters
• Programmable function setting through Windows-based software.
• Economic efficiency, ease of operation.
• Pre-wiring standard cable making wiring procedures easier.
• 100% compatible components reducing stock of spare part.

Features:

The feature of transmitter:

F24-10S 12buttons: 10 single speed buttons+ 1 urgent stop button+ 1 “start” button and 1 safety key.

F24-10D 12buttons: 10 double speed buttons+ 1 urgent stop button+ 1 “start” button and 1 safety key.

Design features:

Name: F24-10S/D radio remote control set (transmitter and receiver)

Size: L*W*H( 186*61*65)mm

Weight:255g(exclude battery)

receiver
Size: L*W*H( 290*230*70)mm.

Weight:1200g (include 1.5m output cable)

Battery: 2 pcs 1.5V AA Alkaline.

Battery safety protect: it auto power off when power is not enough.

Safety key is used to avoid usage by unauthorized.

General specification:

• Frequency: 310.3-331.2 MHz
• Frequency control:quartz crystal
• Output terminal: full sealed relay 20A/250V (passive switch signal).
• Structure:glass fiber
• Receiving high frequency: sensitivity >-110dBm
• Transmitting high frequency: output power<4dBm
• Reaction rate: 0.065s.
• Protection: IP65
• Operation distance: 100 meters
• Convenient “Windows” port to operate and copy function.
• UP/Down;East/West;South/North buttons can be set to mutual rejection.
• The key” Start” function can set to start, skip or common by computer.
• Surpass 4.3 billion Identity code memory.
• Temperature -35 to +80 degrees.
• Low energy: 2 pcs AA battery using one month.
• Special anti-vibration design for moving equipment.

Application
